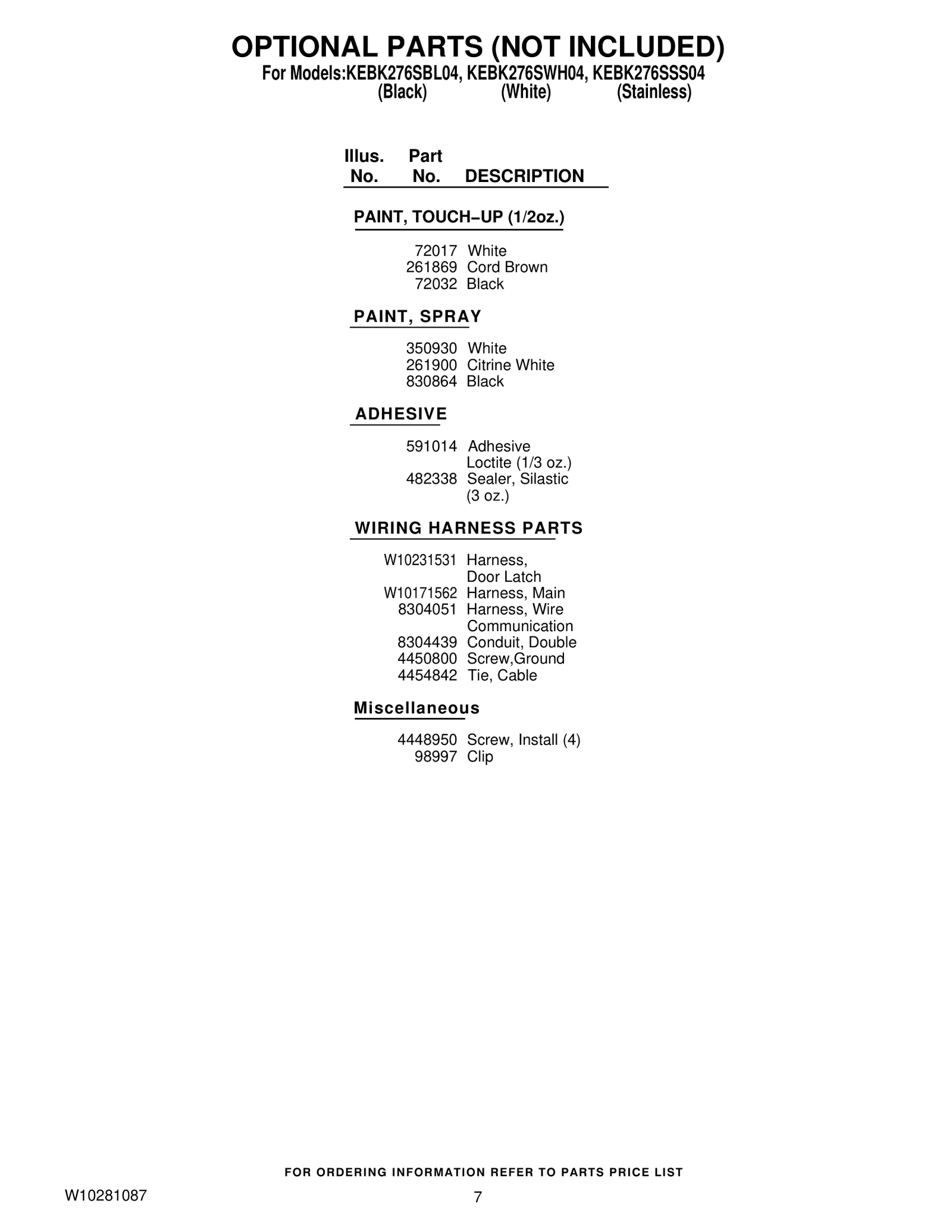

See part OPT-9 in the diagram
Wire Harness
The W10231531 is a wire harness for Whirlpool range and microwave and oven. Basic tools needed. Compare prices from top sellers.
Replaces: 1548233, 8304102, W10143473
Moderate Repair
Fits 2 brands
Does this part fit my model?
Need help?Price Comparison
4 stores · Updated Jun 10, 2026
Lowest$48.50
4.4(3.1k)Preorder
Go to Store
$63.32
4.8(21.9k)Preorder
Go to Store
$65.73
4.8(728)Preorder
Go to Store
$80.02
4.5(13.6k)Preorder
Go to StoreThis is a genuine OEM part that works for some models of Whirlpool, Jenn-Air, Kenmore, KitchenAid, Maytag, Amana, Magic Chef, Admiral, Norge, and Roper models.
0 reviews
Common Problems This Part Fixes
Oven
Trips breaker or blows fuse
Range
Trips breaker or blows fuse
Repair difficulty: Moderate - basic tools and 1-2 panels to remove
