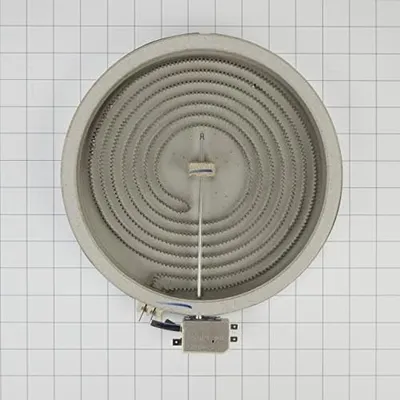

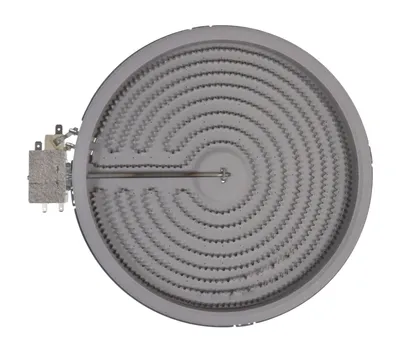

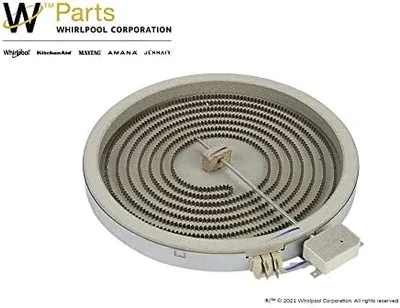

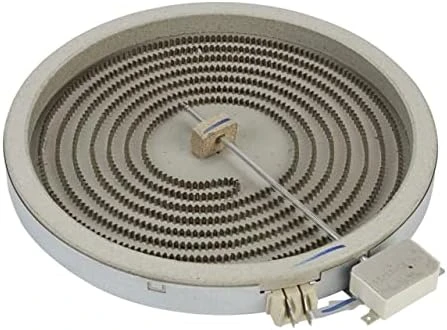

Radiant Surface Element

The Electric Range Radiant Surface Element is a 2500 watt large heating element installed under the cooktop of your range that heats up the surface above it. This element features easy-to-install “plug in” style terminals and is compatible with many electric range makes and models. If your range's burner no longer heats up, replacing this part may alleviate the issue. To access the part, open the oven door and remove the two screws that attach the cooktop to the body of the range. Remove the cooktop carefully. Please note that elements are sold separately. Replacing this part will require basic hand tools, some disassembly of the appliance and novice repair experience. You must unplug the appliance or shut off the house circuit breaker before installing this part. Helpful Tip: Take a digital photo of the wires attached to the existing part before you begin this repair to aid with reassembly.

Part Specification
•  This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications
•  This product is a replacement part
•  Package contains (1) Electric Range Radiant Surface Element
•  Tools Needed: Multi screwdriver, needle-nose pliers
