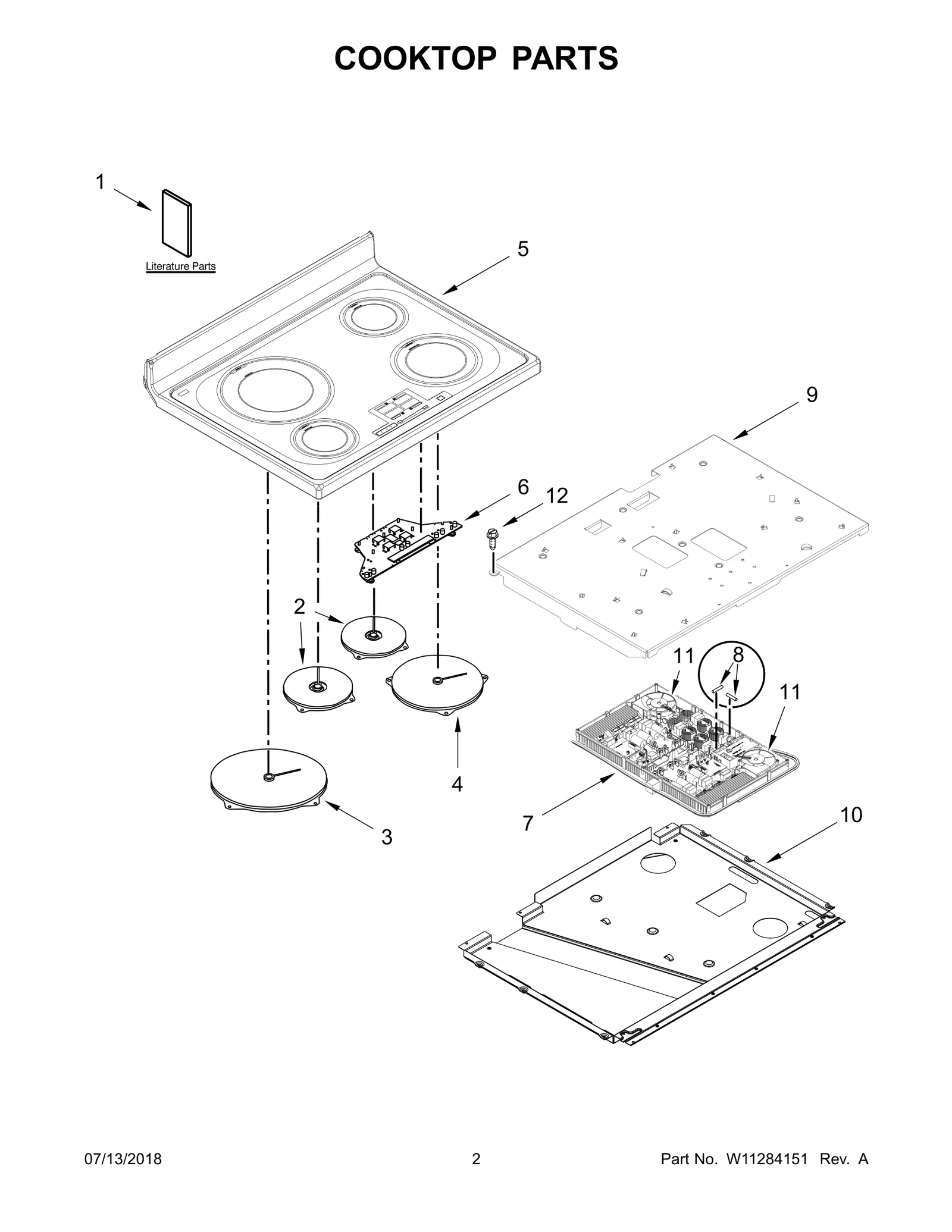

See part 12 in the diagram
Wire Harness
The W11171882 is a wire harness for Whirlpool range. Basic tools needed. Compare prices from top sellers.
Replaces: W10745678
Moderate Repair
Fits KitchenAid appliances
Does this part fit my model?
Need help?Price Comparison
4 stores · Updated May 16, 2026
Lowest$205.52
4.8(21.9k)Preorder
Go to Store
$219.40
4.8(728)Preorder
Go to Store
$243.20
4.5(13.6k)Preorder
Go to Store
$263.61
4.4(3.1k)Preorder
Go to StoreThis is a genuine OEM part that works for some models of Whirlpool, Jenn-Air, Kenmore, KitchenAid, Maytag, Amana, Magic Chef, Admiral, Norge, and Roper models.
0 reviews
Common Problems This Part Fixes
Trips breaker or blows fuse
Repair difficulty: Moderate - basic tools and 1-2 panels to remove
