Air Diffuser Assembly

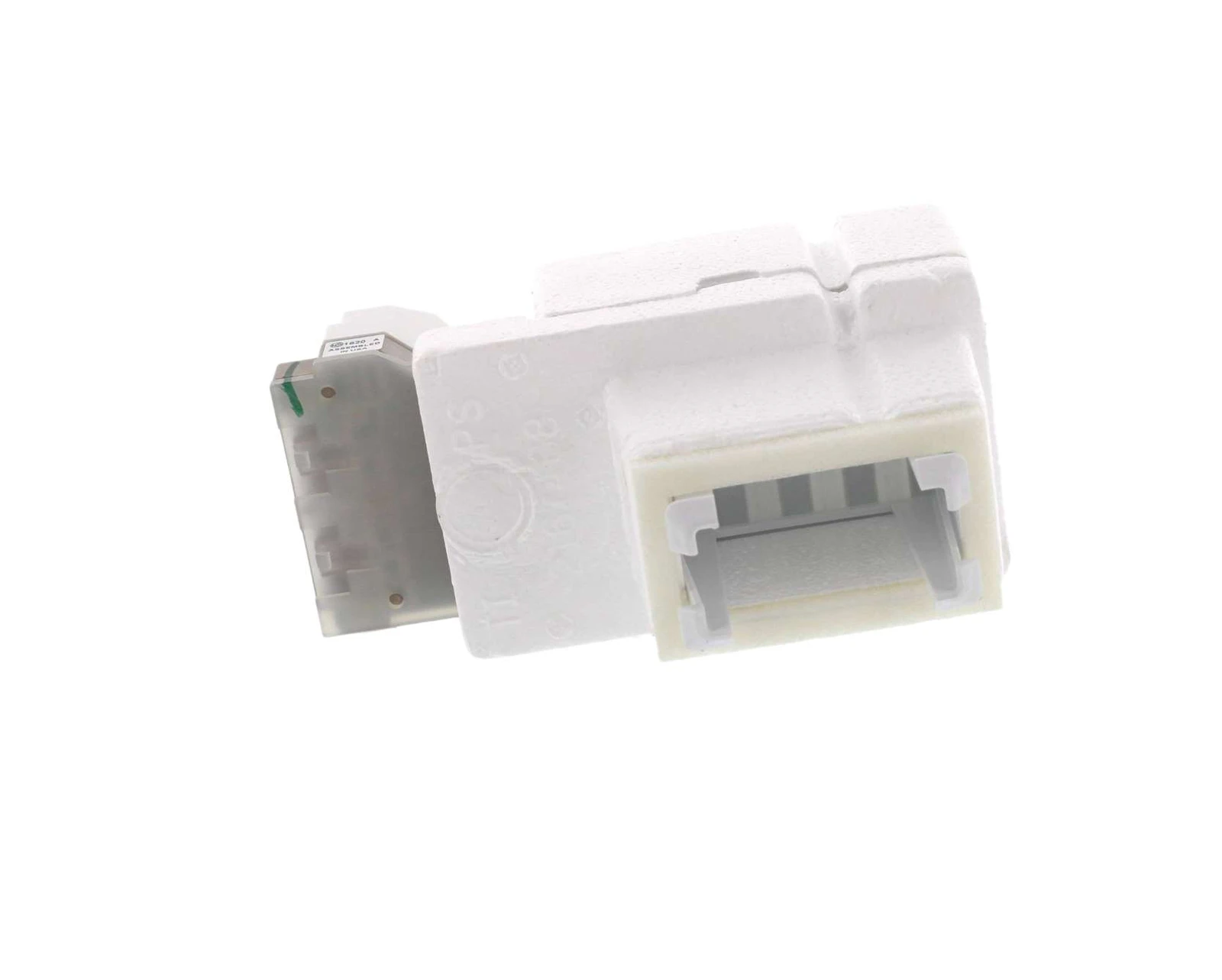

The SxS Refrigerator Air Damper Control Assembly controls the cold airflow from the freezer into the fresh food compartment. A common reason for replacing the damper control is if the freezer is the correct temperature, but the fridge is too cold or not cold enough. The damper control is located inside the freezer’s ice maker assembly. Note that you will need to remove the ice maker from your refrigerator to access this part. Replacing this part will require basic hand tools, some disassembly of the refrigerator and novice repair experience. You must unplug the refrigerator or shut off the house circuit breaker for the refrigerator before installing this part.

Part Specification
•  This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications
•  This product is a replacement part
•  Package contains (1) SxS Refrigerator Air Damper Control Assembly
•  Tools Needed: Multi screwdriver
