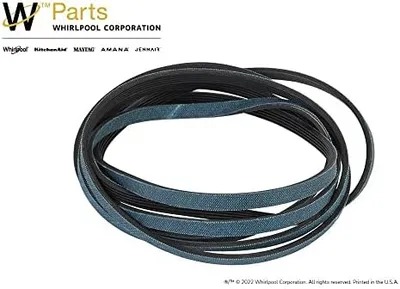

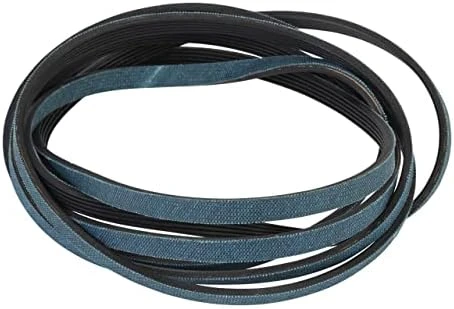

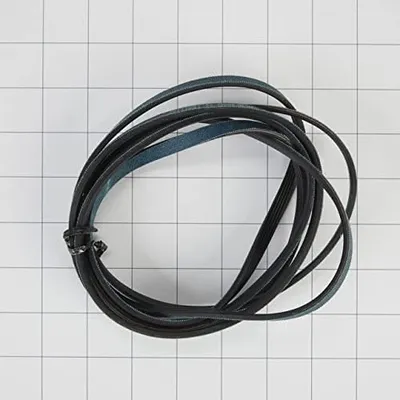

Drum Belt

The Dryer Drive Belt wraps around the motor and pulley and rotates the belt and the belt tumbles the drum. If the drum of your appliance isn't operating as expected, replacing this part may alleviate the issue. To access the part, first lift up the lint screen cover and remove the two screws. If you have the type of lint screen that has the cover built in, just pull it out and then remove the screws. Next, take a putty knife around the edge of the top of your dryer and find the release clips--press these in to release the top of the dryer so you can swing it open. The front panel also needs to be removed to replace the belt. This long slender belt measures 93-3/8" L x 3/8" W and features 5 ridges. Replacing this part will require basic hand tools, some disassembly of the appliance and novice repair experience. You must unplug the appliance or shut off the house circuit breaker before installing this part.

Part Specification
•  This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications
•  This product is a replacement part
•  Package contains (1) Dryer Drum Belt
•  Tools Needed: Flat-blade screwdriver, putty knife, 5/16" nut driver
