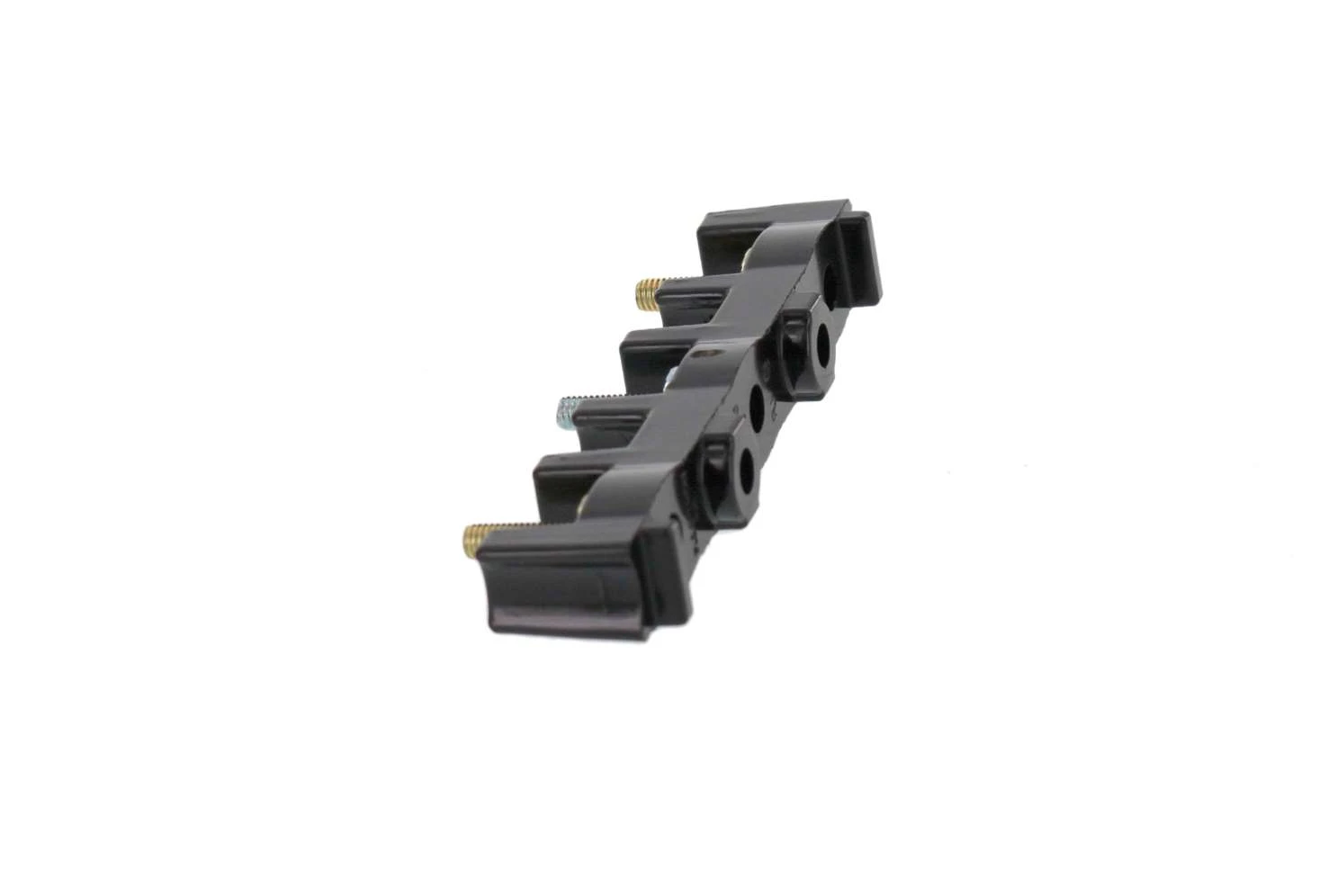

Terminal Block
The WP8203546 is a terminal block for Whirlpool range and microwave and oven. Basic tools needed. Compare prices from top sellers.
Replaces: 0042194, 0088776, 0091625, 0310029, 07728300, 1177469, 14200347, 14205049, 14210916, 14221418, 14253826, 14254043, 14266994, 241212, 258076, 290105, 306378, 316133, 3184673, 4157955, 4326821, 4332345, 4363438, 4363823, 4371409, 4372627, 4449868, 5-70022, 51234P01, 570022, 661457, 7-2284, 702284, 8203546, 878191, 879428, 88776, 91625, 9757403, B50034-1, B5003401, CG980049, M4D41, R0167089, R0756503, R0762020, W10246624, Y0042194, Y0088776, Y0091625, Y0306378, Y0310029, Y07728300, Y702284
Moderate Repair
Fits 10 brands
Does this part fit my model?
Need help?Price Comparison
4 stores · Updated May 16, 2026
Lowest$10.04
4.8(728)In Stock
Go to Store
$24.55
4.8(21.9k)In Stock
Go to Store
$24.67
4.5(13.6k)In Stock
Go to Store
$28.85
4.4(3.1k)In Stock
Go to StoreThis Range Terminal Block connects the house power to the range wire harness. The Terminal Block is located in the back of the oven behind the access cover. When disconnecting the wires to the existing part, make note of how they're connected to assist with mounting the new block. Replacing this part will require basic hand tools and some disassembly of the range. Previous repair experience will be helpful but is not necessary. You must unplug the range or shut off the house circuit breaker for the appliance before installing this part. Recommended Item: Consider replacing the power cord at the same time you complete this repair; a 40-amp 3-wire cord (item PT220) and 50-amp 4-wire cord (item PT500) are both available.
Part Specification
• This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications
• This product is a replacement part
• Package contains (1) Range Terminal Block
• Tools Needed: Multi screwdriver
Part Specification
• This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications
• This product is a replacement part
• Package contains (1) Range Terminal Block
• Tools Needed: Multi screwdriver
0 reviews
Common Problems This Part Fixes
Oven
Trips breaker or blows fuse
Range
Trips breaker or blows fuse
Repair difficulty: Moderate - basic tools and 1-2 panels to remove
