Model
Bosch B09IB81NSP/02
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B09IB81NSP/02Refrigerator
4 diagrams78 parts
Parts Sections (4)
Diagram

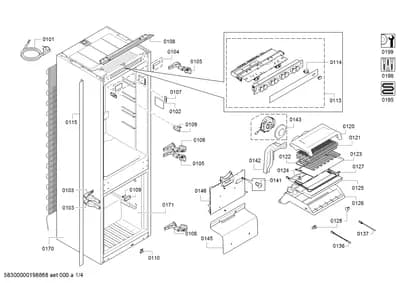

Door & Housing, shelves trays (0101-0199)
Parts in Door & Housing, shelves trays (0101-0199)
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Power cord | - |
| 0102 |  | Cover | $9.67 ApplianceParts Pro |
| 0103 |  | Distance holder | - |
| 0104 |  | Cover | - |
| 0105 |  | Door hinge | - |
| 0106 |  | Door hinge | - |
| 0107 |  | LED-plate | - |
| 0108 |  | Strip | - |
| 0109 |  | Chamber temperature sensor | $37.25 Part Advantage |
| 0110 |  | Switch-element | $22.97 Parts Dr |
| 0113 |  | Control module not programmed | - |
| 0113 |  | Control module programmed | - |
| 0114 |  | Switch | $18.06 Parts Dr |
| 0115 |  | 23001273NLA Strip | Discontinued |
| 0120 | | Cover | - |
| 0121 |  | Evaporator | - |
| 0122 |  | Heating element | - |
| 0123 |  | Sheet | - |
| 0124 | | Salver | - |
| 0125 | | Salver | - |
| 0126 | | Salver | $33.95 ApplianceParts Pro |
| 0127 |  | Heater-defrost | $31.45 ApplianceParts Pro |
| 0128 |  | Bolt | - |
| 0136 | | Temperature sensor | - |
| 0137 |  | Fuse-thermal | $20.88 ApplianceParts Pro |
| 0141 |  | Rivet | - |
| 0142 | | Ventilation duct | - |
| 0143 |  | Fan | $127.73 ApplianceParts Pro |
| 0145 |  | Cover | - |
| 0146 | | Cover | $13.37 ApplianceParts Pro |
| 0198 |  | Fixing kit | - |
| 0198 |  | Repair-set | - |
| 0199 | | Repair-set | - |
| 0199 |  | Repair-set | - |
| 0199 | – | 10026699 Repair-set | - |
