Model
Bosch B09IB91NSP/04
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B09IB91NSP/04Refrigerator
5 diagrams93 parts
Parts Sections (5)
Diagram

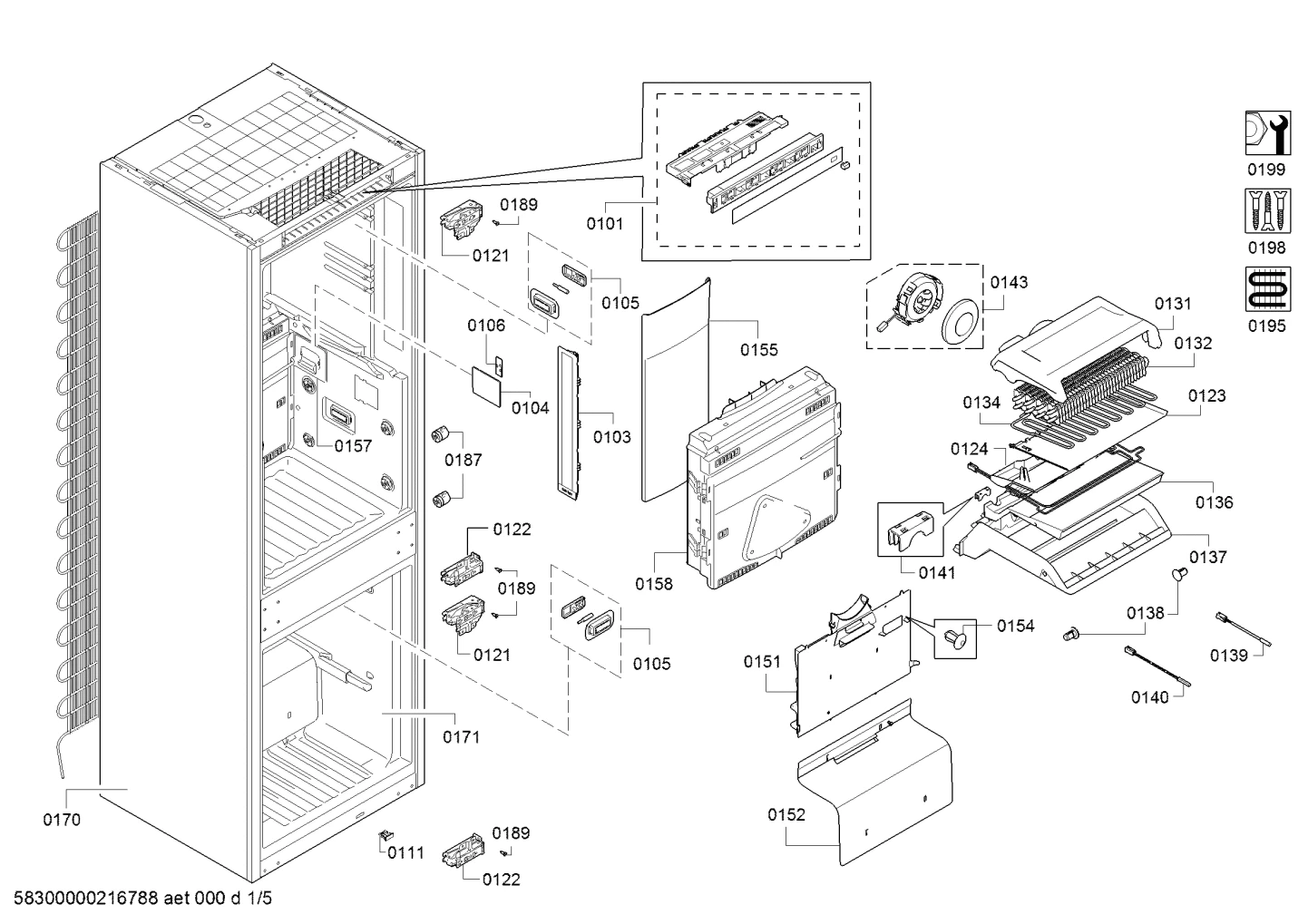

Door & Housing, Mounting & Fixing (0101-0199)
Parts in Door & Housing, Mounting & Fixing (0101-0199)
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control module programmed | - |
| 0101 |  | 11033395NLA Control module not programmed | Discontinued |
| 0103 |  | Diode-led | - |
| 0104 |  | Cover | $9.67 ApplianceParts Pro |
| 0105 |  | Chamber temperature sensor | $37.25 Part Advantage |
| 0106 |  | LED-plate | - |
| 0111 |  | Switch-element | $22.97 Parts Dr |
| 0121 |  | Door hinge | - |
| 0122 |  | Door hinge | - |
| 0123 |  | Sheet | - |
| 0124 |  | Salver | - |
| 0131 |  | Cover | - |
| 0132 |  | Evaporator | - |
| 0134 |  | Heating element | - |
| 0136 |  | Salver | - |
| 0137 |  | Salver | - |
| 0138 |  | Bolt | - |
| 0139 |  | Temperature sensor | - |
| 0140 | | Temperature sensor | - |
| 0141 |  | Holder | - |
| 0143 |  | Fan | $51.97 ApplianceParts Pro |
| 0151 |  | Cover | - |
| 0152 |  | Cover | - |
| 0154 |  | Rivet | - |
| 0155 |  | Cover | - |
| 0157 |  | Cover | - |
| 0158 |  | Pressure chamber | - |
| 0187 |  | Fixture | - |
| 0189 |  | Screw | $6.40 PartSelect |
| 0198 |  | Fixing kit | - |
| 0198 |  | Fixing kit | - |
| 0198 |  | Mounting set | - |
| 0199 |  | Fixture | - |
| 0199 | – | 10026699 Repair-set | - |
| 0199 |  | Cover | - |
| 0199 |  | Repair-set | - |
| 0199 |  | Repair-set | - |
