ModelBosch
B10CB81NVW/01Refrigerator
4 diagrams105 parts
Parts Sections (4)
Diagram

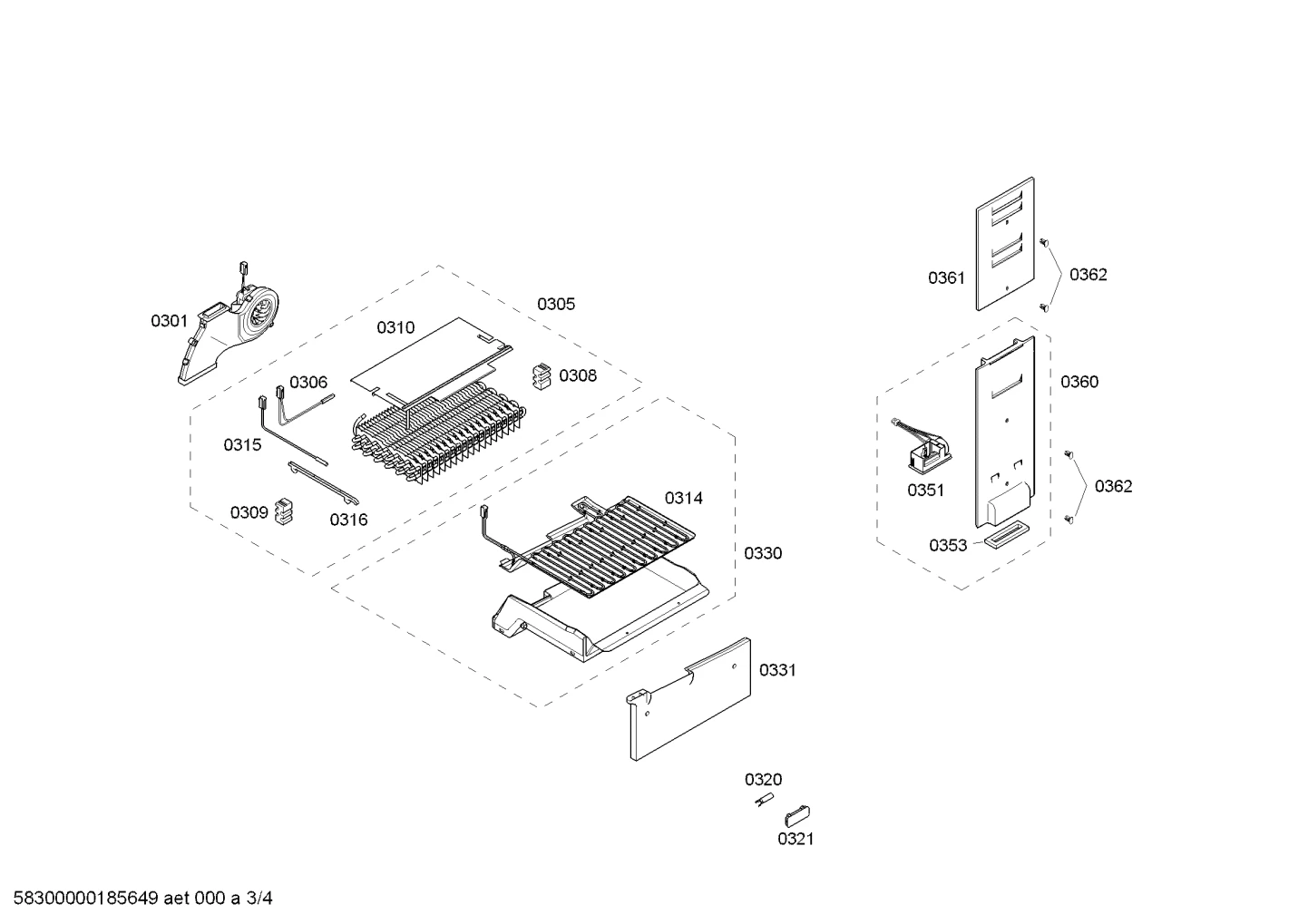

Ventilation, Fan Parts (0301-0362)
Parts in Ventilation, Fan Parts (0301-0362)
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0301 |  | Fan | $106.55 RepairClinic |
| 0305 |  | Evaporator | - |
| 0306 |  | Fuse-thermal | $26.87 Parts Dr |
| 0308 |  | Foam piece | - |
| 0309 |  | Foam piece | - |
| 0310 |  | Plate | - |
| 0314 |  | Heater-defrost | $74.63 ApplianceParts Pro |
| 0315 |  | Resistor-ptc | - |
| 0316 |  | Fixture | $5.02 Part Advantage |
| 0320 |  | Sensor-NTC | $71.84 Parts Dr |
| 0321 |  | Cover | - |
| 0330 |  | Cover | - |
| 0331 |  | Back panel | - |
| 0351 |  | 00553061NLA Part is comp.of a factory assembly group | Discontinued |
| 0353 | | Sealing | - |
| 0360 |  | Ventilation duct | $97.14 Parts Dr |
| 0361 |  | Ventilation duct | - |
| 0362 |  | Screw | $5.40 ApplianceParts Pro |
