Model
Bosch B11CB80SSS/01
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B11CB80SSS/01Refrigerator
4 diagrams117 parts
Parts Sections (4)
Diagram

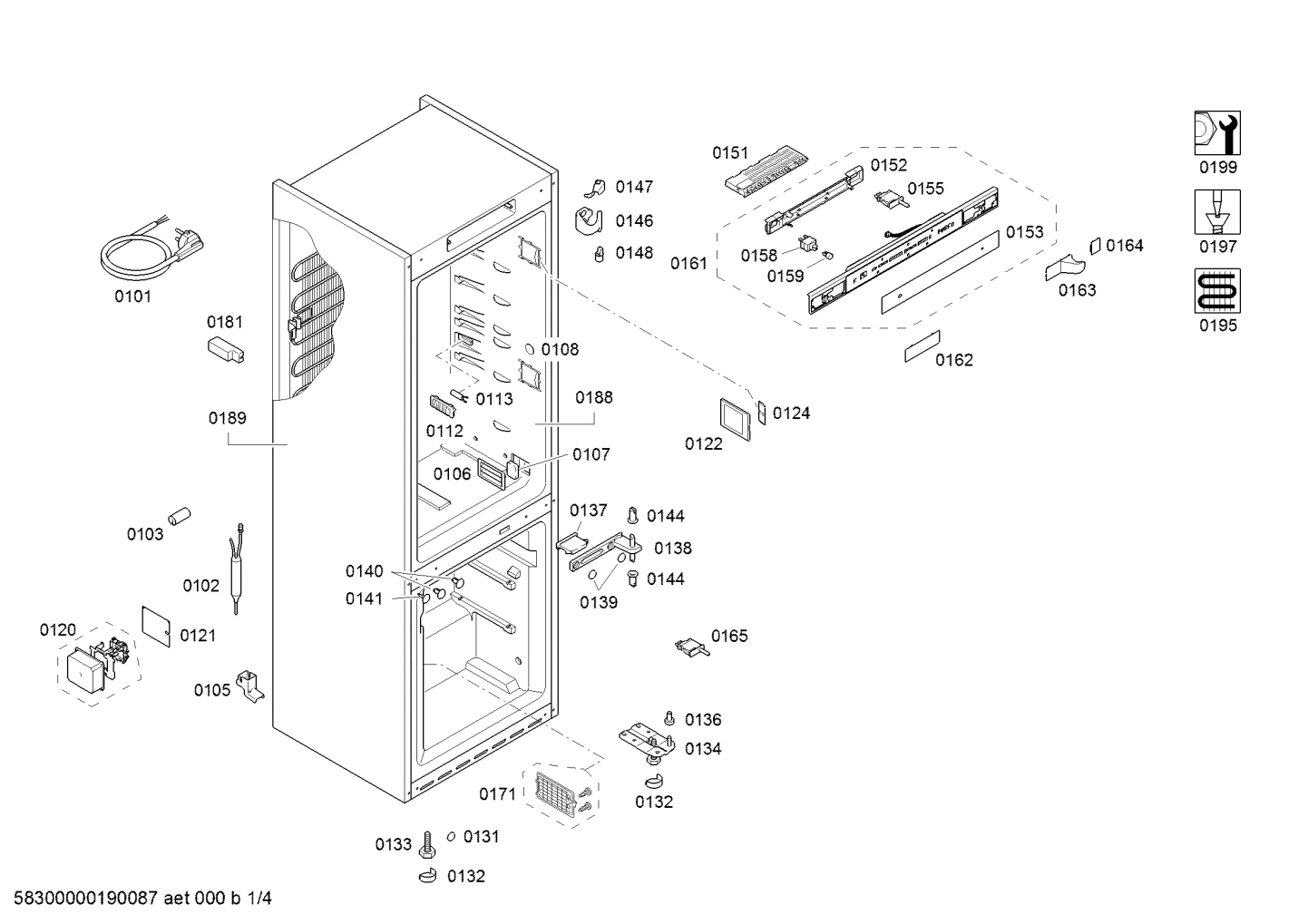

Door & Housing, Hinges (0101-0199)
Parts in Door & Housing, Hinges (0101-0199)
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Power cord | - |
| 0102 |  | Dryer | $77.42 Part Advantage |
| 0103 |  | Shock absorber | - |
| 0105 |  | Clamping piece | - |
| 0106 |  | Air grid | - |
| 0107 |  | Charcoal Air Filter | $73.39 Parts Dr |
| 0108 |  | Part not included in this appliance | - |
| 0112 | – | 10032121 Cover | - |
| 0113 |  | Sensor-NTC | $71.84 Parts Dr |
| 0120 |  | Power module | $39.61 ApplianceParts Pro |
| 0121 |  | Sheet | - |
| 0122 |  | Cover | $9.67 ApplianceParts Pro |
| 0124 |  | LED-plate | - |
| 0131 |  | Cover | $6.41 PartSelect |
| 0132 |  | Rubber foot | $5.40 ApplianceParts Pro |
| 0133 |  | Foot | - |
| 0134 |  | Hinge | - |
| 0136 |  | Bearing | $6.41 PartSelect |
| 0137 |  | Door latch | - |
| 0138 |  | Door hinge | - |
| 0139 |  | Plug | $12.88 ApplianceParts Pro |
| 0140 |  | Plug | - |
| 0141 |  | Plug | - |
| 0144 |  | Bushing | $3.95 ApplianceParts Pro |
| 0146 |  | Door bearing | - |
| 0151 |  | PC board | $129.63 Parts Dr |
| 0152 |  | Cover | - |
| 0153 |  | Contact foil | - |
| 0155 |  | Switch-door | $9.48 ApplianceParts Pro |
| 0158 |  | Switch | $18.06 Parts Dr |
| 0159 |  | Push button cap | - |
| 0161 |  | Panel | - |
| 0162 |  | Cover | $11.81 Parts Dr |
| 0163 |  | Hinge-cover | - |
| 0164 |  | Hinge-cover | $12.41 ApplianceParts Pro |
| 0165 |  | Push button switch | $10.56 ApplianceParts Pro |
| 0171 |  | Cover | - |
| 0181 |  | Stop | - |
| 0197 |  | Fixing kit | $14.95 ApplianceParts Pro |
| 0199 | | Part not included in this appliance | - |
