Model
Bosch B18IF900SP/02
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B18IF900SP/02Refrigerator
6 diagrams158 parts
Parts Sections (6)
Diagram

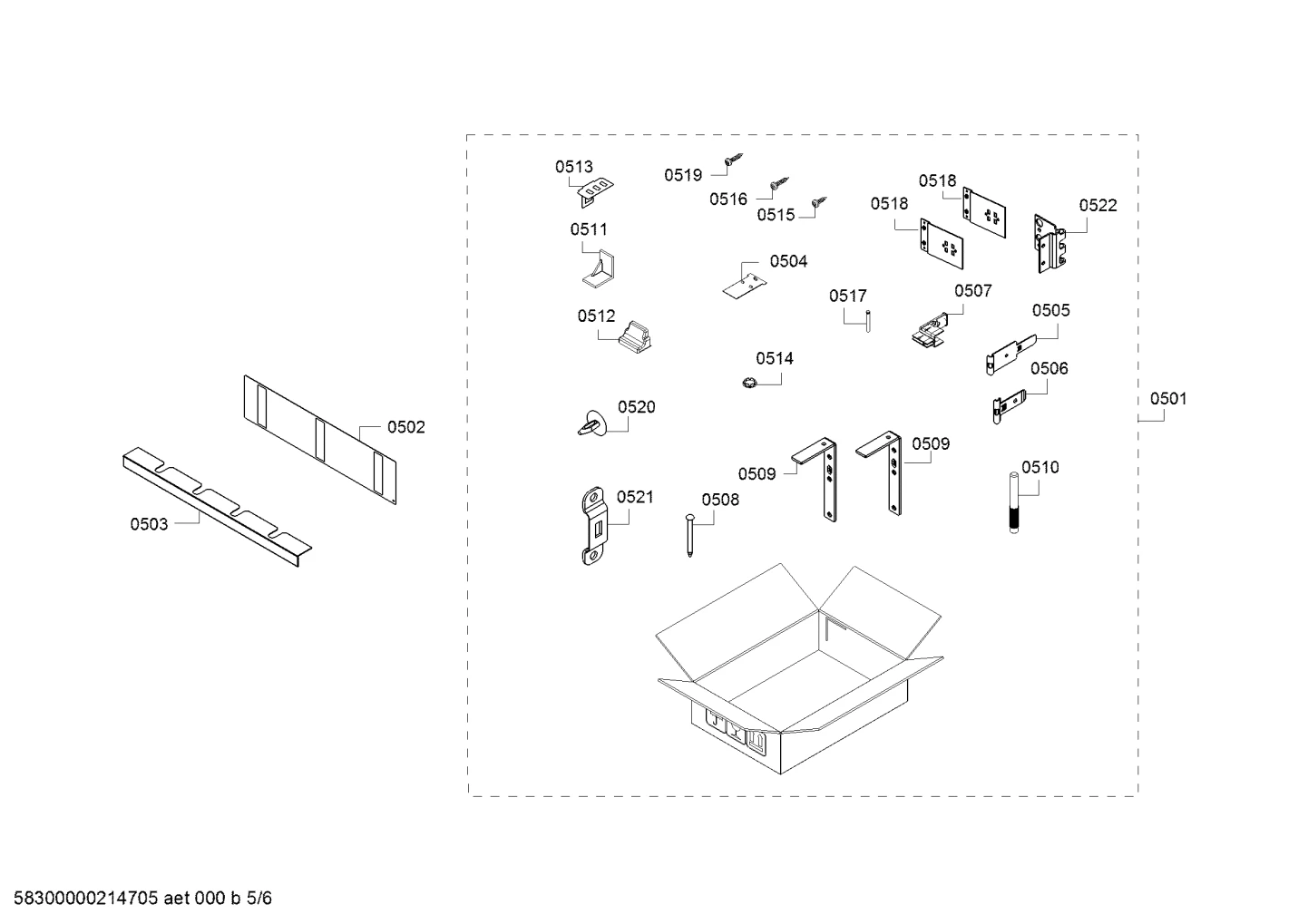

Mounting & Fixing, Door & Housing (0501-0522)
Parts in Mounting & Fixing, Door & Housing (0501-0522)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0501 |  | Mounting set | $163.66 ApplianceParts Pro |
| 0502 |  | Panel | $26.04 ApplianceParts Pro |
| 0503 | – | 11061283 Profile stripe | - |
| 0504 |  | Cover | $3.31 ApplianceParts Pro |
| 0505 |  | Fixture | $3.77 Part Advantage |
| 0506 |  | Fixture | $3.35 Part Advantage |
| 0507 |  | Support | $7.61 ApplianceParts Pro |
| 0508 |  | Pin | $3.35 Part Advantage |
| 0509 |  | 11052246replaces 11015500 Fixture | $40.80 Parts Dr |
| 0510 |  | Pin | - |
| 0511 | | Auxiliary tool | - |
| 0512 |  | Cover | $4.19 Part Advantage |
| 0513 |  | Fixing kit | $5.86 Part Advantage |
| 0514 |  | Cap | $10.40 ApplianceParts Pro |
| 0515 |  | Screw | $1.67 Part Advantage |
| 0516 |  | Screw | $4.19 Part Advantage |
| 0517 |  | Hinge pin | $3.34 ApplianceParts Pro |
| 0518 |  | Fixture | $6.40 PartSelect |
| 0519 |  | Screw | $4.37 ApplianceParts Pro |
| 0520 |  | Pin | $6.42 ApplianceParts Pro |
| 0521 |  | Fixture | $2.93 Part Advantage |
| 0522 |  | Fixture | $4.19 Part Advantage |
