Model
Bosch B20CS30SNS/02
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B20CS30SNS/02Refrigerator
8 diagrams88 parts
Parts Sections (8)
Diagram

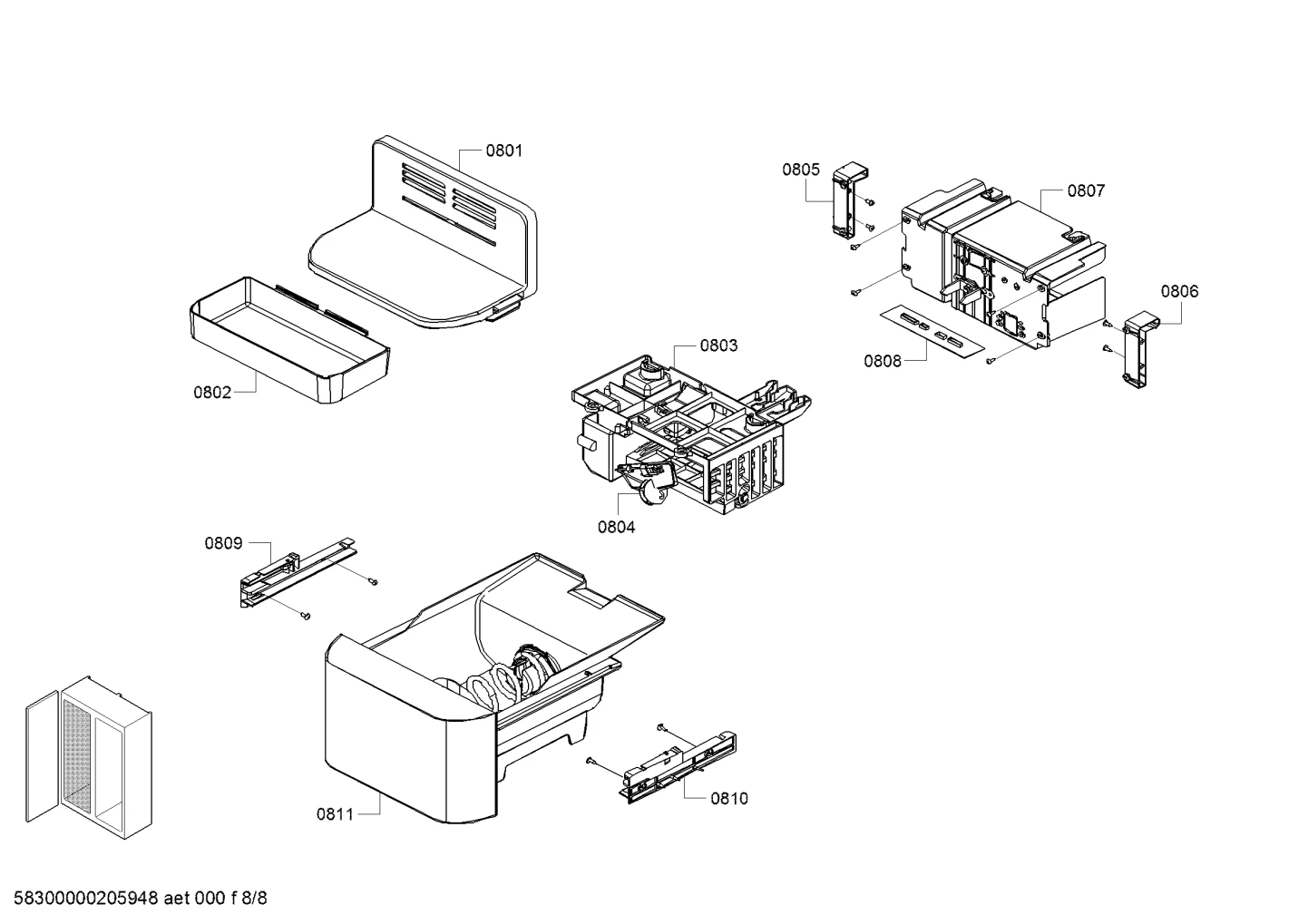

icemakers, Mounting & Fixing (0801-0811)
Parts in icemakers, Mounting & Fixing (0801-0811)
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0801 |  | Covering plate interior | - |
| 0802 |  | Covering plate interior | $55.25 ApplianceParts Pro |
| 0803 |  | 11023236NLA Ice maker | Discontinued |
| 0804 | | 11023237NLA Case | Discontinued |
| 0805 | | Guide | - |
| 0806 | | Mounting bracket | - |
| 0807 | | 00776640NLA Motor | Discontinued |
| 0808 |  | LED-Light bar | - |
| 0809 | | Guide | - |
| 0810 | | 11023240NLA Guide | Discontinued |
| 0811 | | 00717066NLA Dispenser | Discontinued |
