Model
Bosch B20CS80SNW/01
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B20CS80SNW/01Refrigerator
6 diagrams139 parts
Parts Sections (6)
Diagram

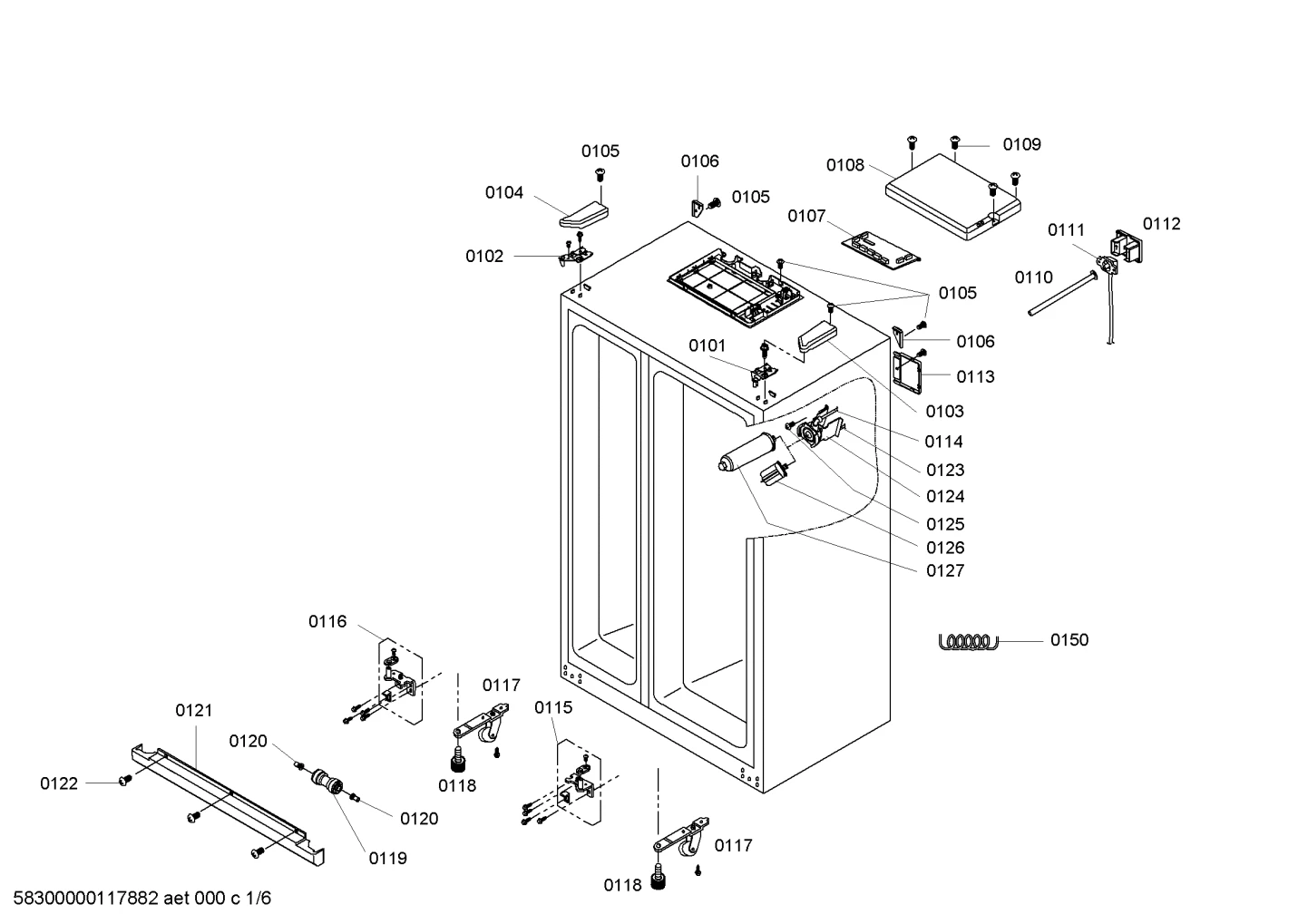

doors & housing, Bearings (0101-0127)
Parts in doors & housing, Bearings (0101-0127)
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Door bearing | - |
| 0102 |  | Door bearing | - |
| 0103 |  | Cover | - |
| 0104 | | Cover | - |
| 0105 |  | Screw | - |
| 0106 | | Cover | - |
| 0107 |  | 00640603NLA PC board | Discontinued |
| 0108 | | Cover | - |
| 0109 | | Screw | - |
| 0110 |  | Tube | - |
| 0111 | | Hose-fill | - |
| 0112 | | Cover | - |
| 0113 | | Cover | $36.11 RepairClinic |
| 0114 |  | Holder | $165.25 Parts Dr |
| 0115 |  | Door bearing | - |
| 0116 |  | Door bearing | $32.20 ApplianceParts Pro |
| 0117 |  | Reel | - |
| 0118 | | Foot | - |
| 0119 |  | Connection piece | $22.12 ApplianceParts Pro |
| 0120 | | Connection piece | $22.12 ApplianceParts Pro |
| 0121 | | Panel-base | - |
| 0122 |  | Screw | $3.95 ApplianceParts Pro |
| 0123 |  | 00604203NLA Hose connection inlet | Discontinued |
| 0123 | | Holder | $165.25 Parts Dr |
| 0124 | | Holder | $165.25 Parts Dr |
| 0126 |  | 00605009NLA Cap | Discontinued |
| 0127 |  | Water Filter | $54.18 Part Advantage |
