Model
Bosch B21CL80SNS/01
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B21CL80SNS/01Refrigerator
7 diagrams117 parts
Parts Sections (7)
Diagram

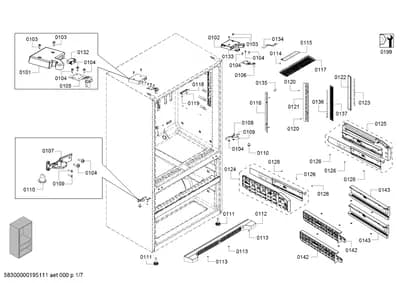

Screws, Hinges (0101-0199)
Parts in Screws, Hinges (0101-0199)
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hinge-cover | - |
| 0102 | | Hinge-cover | - |
| 0103 | | Screw | $1.95 ApplianceParts Pro |
| 0104 | | Screw | - |
| 0105 |  | Hinge | - |
| 0106 | | Door hinge | - |
| 0107 |  | Hinge | - |
| 0108 |  | Hinge | - |
| 0109 | | Screw | - |
| 0110 | | Sleeve | $3.35 Part Advantage |
| 0111 |  | Foot | - |
| 0112 |  | Decor panel | $10.04 Part Advantage |
| 0113 | | Screw | $1.95 ApplianceParts Pro |
| 0114 | | Screw | - |
| 0115 | | LED-Light bar | - |
| 0116 | | Support | - |
| 0117 | | Cover | - |
| 0118 | | Guide | - |
| 0119 | | Screw | - |
| 0120 | | Screw | - |
| 0121 | | Support | - |
| 0122 | | Glass light cover | - |
| 0123 |  | LED-Light bar | $18.24 ApplianceParts Pro |
| 0124 |  | Rail | $100.59 Parts Dr |
| 0125 | | Rail | $80.13 Parts Dr |
| 0126 | | Screw | - |
| 0132 | | Switch | $8.35 ApplianceParts Pro |
| 0133 | | Switch | $8.35 ApplianceParts Pro |
| 0134 |  | Sensor | - |
| 0135 | | Cap | - |
| 0142 | | Slide | $23.72 Parts Dr |
| 0143 | | Slide | $18.37 ApplianceParts Pro |
| 0199 | | Spacer | $2.18 ApplianceParts Pro |
