Model
Bosch B21CL81SNS/04
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B21CL81SNS/04Refrigerator
7 diagrams115 parts
Parts Sections (7)
Diagram
drawers, Seals & Gaskets (0402-0419)
Parts in drawers, Seals & Gaskets (0402-0419)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0402 |  | Drawer | - |
| 0403 |  | Drawer | $135.61 Part Advantage |
| 0404 | | Support | $13.95 ApplianceParts Pro |
| 0406 | | Support | - |
| 0408 | | Screw | $6.40 PartSelect |
| 0409 |  | Gear | $6.41 PartSelect |
| 0410 | | Metal shaft | $15.49 Part Advantage |
| 0411 | | 11016460NLA Seal-door | Discontinued |
| 0412 | | 11016459NLA Seal-door | Discontinued |

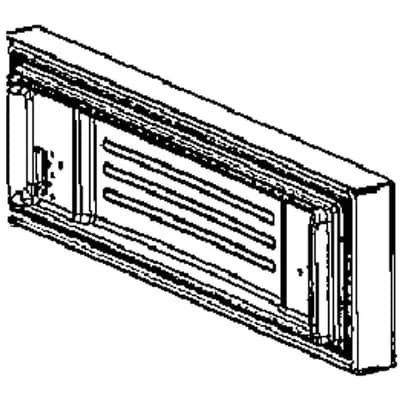

| 0413 |  | Door | $335.21 Part Advantage |
| 0414 | | Door | - |

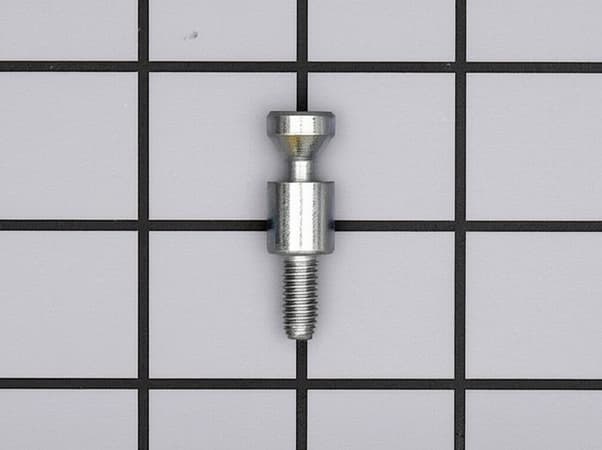

| 0415 |  | Bolt | $8.37 Part Advantage |
| 0416 |  | Handle-door | $132.95 Parts Dr |
| 0417 |  | Rail | $145.52 Parts Dr |
| 0418 |  | Rail | $81.65 RepairClinic |
| 0419 | | Dispenser | - |
