Model
Bosch B22CS30SNS/01
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B22CS30SNS/01Refrigerator
6 diagrams146 parts
Parts Sections (6)
Diagram

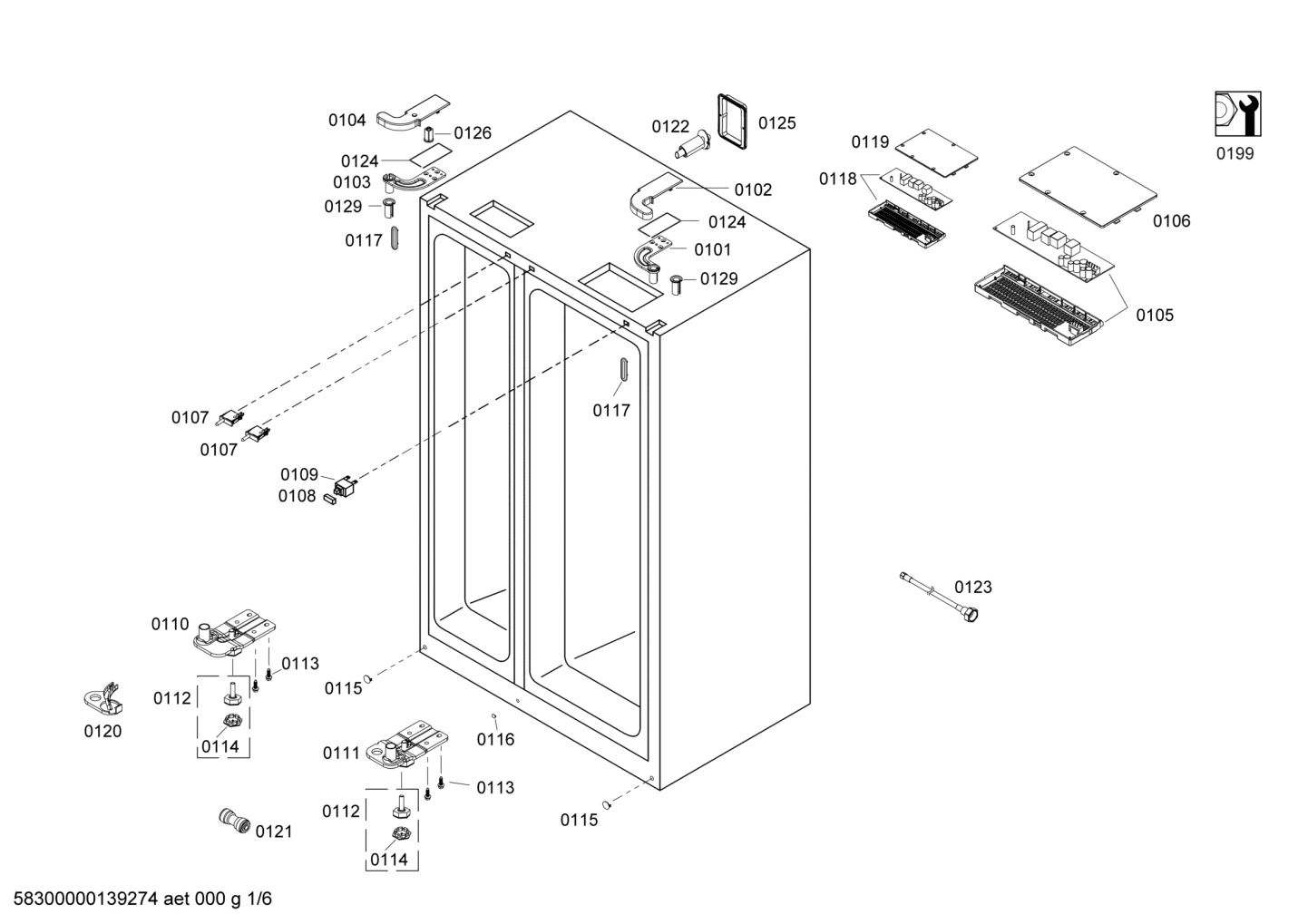

Door & Housing, Hinges (0101-0199)
Parts in Door & Housing, Hinges (0101-0199)
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hinge | - |
| 0102 |  | Cover | - |
| 0103 |  | Door hinge | - |
| 0104 |  | Cover | - |

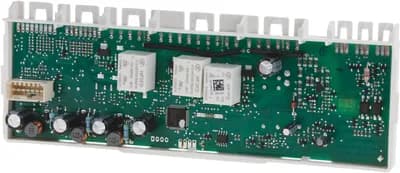

| 0105 |  | Display module | $143.41 Parts Dr |
| 0106 | | Cover | - |
| 0107 |  | Push button switch | $12.80 PartSelect |
| 0108 |  | Switch-button-part | - |
| 0109 | | Push button switch | $11.95 ApplianceParts Pro |
| 0110 |  | Hinge | - |
| 0111 |  | Hinge | $47.88 Parts Dr |
| 0112 |  | Screw-adjust | $10.04 Part Advantage |
| 0113 |  | Screw | - |
| 0114 |  | Rubber foot | $2.30 RepairClinic |
| 0115 | | Cap | - |
| 0116 |  | Plug | - |
| 0117 |  | Cover | - |
| 0118 |  | Control module | $188.84 Part Advantage |
| 0119 |  | Cover | - |
| 0120 |  | Guide | - |
| 0121 |  | Hose connection inlet | $11.53 PartSelect |
| 0122 |  | Water inlet | $55.29 PartSelect |
| 0123 | | Part not included in this appliance | - |
| 0124 |  | Sealing | - |
| 0125 | | Cover | - |
| 0126 |  | Covering | - |
| 0129 |  | Door bearing | - |
| 0199 |  | Retaining washer | - |
| 0199 |  | Cable connector | $16.64 PartSelect |
| 0199 |  | Screw | - |
| 0199 |  | Wire | - |
| 0199 |  | Holder | - |
| 0199 |  | Holder | - |
| 0199 |  | Holder | - |
| 0199 |  | Holder | - |
| 0199 |  | Adhesive | - |
