Model
Bosch B22FT80SNS/02
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B22FT80SNS/02Refrigerator
8 diagrams206 parts
Parts Sections (8)
Diagram

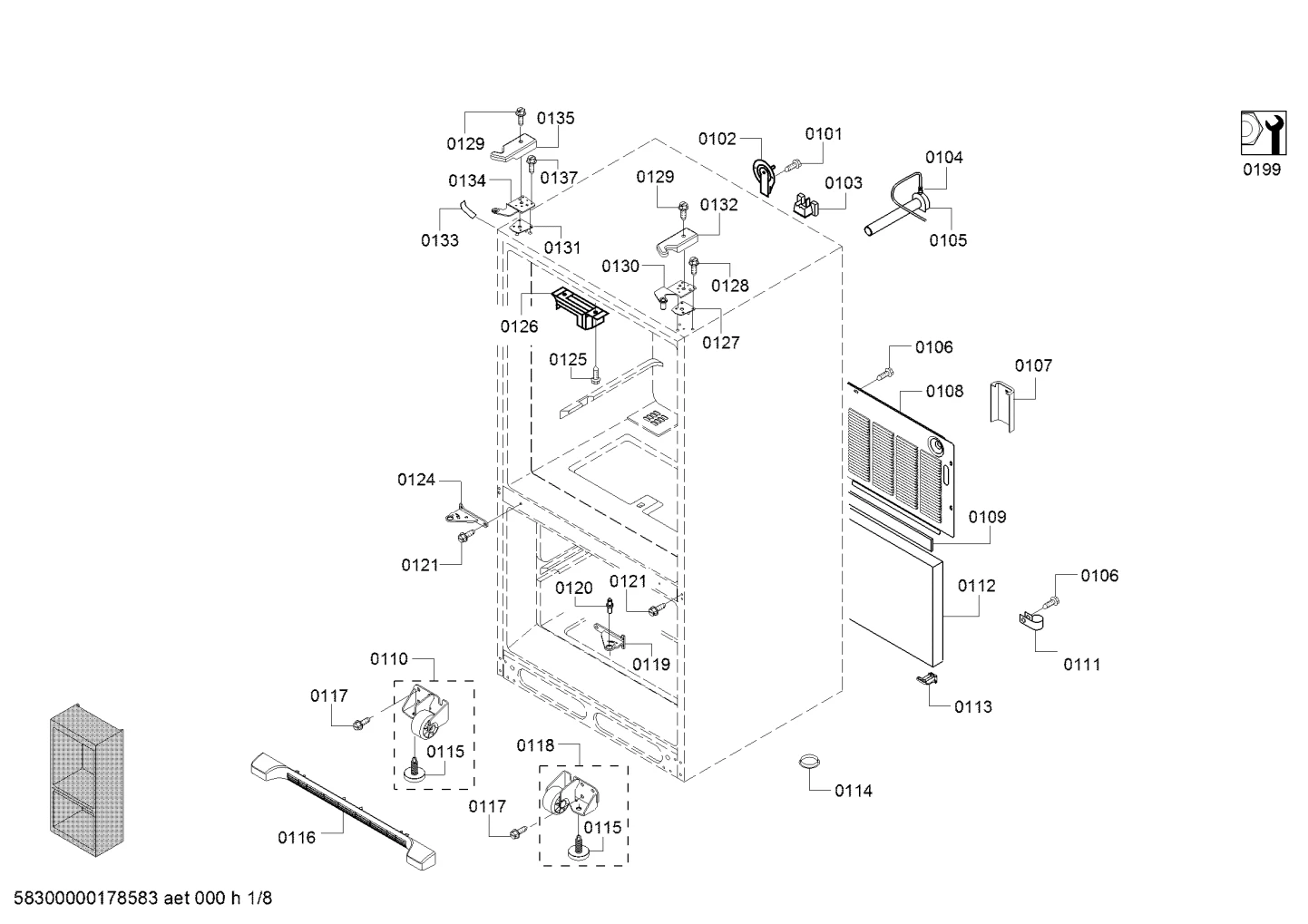

Screws, Hinges (0101-0137)
Parts in Screws, Hinges (0101-0137)
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Screw | - |
| 0102 | | Cover | - |
| 0103 | | Cover | - |
| 0104 | | Terminal | - |
| 0105 |  | Tube | - |
| 0106 | | Screw | - |
| 0107 | | Retaining plate | - |
| 0108 | | Cover | - |
| 0109 | | Sealing strip | - |
| 0110 |  | Roller set | - |
| 0111 | | Clamp | - |
| 0112 | | Seal | - |
| 0113 | | Tube | - |
| 0114 | | Cover | - |
| 0115 |  | Roller set | - |
| 0116 | | Panel-base | - |
| 0117 | | Screw | $12.74 Parts Dr |
| 0118 | | Roller set | - |
| 0119 | | 00631887NLA Hinge | Discontinued |
| 0120 | | Hinge pin | - |
| 0121 | | Screw | - |
| 0124 | | Hinge | - |
| 0125 | | Screw | - |
| 0126 | | Retaining plate | - |
| 0127 | | Spacer | - |
| 0128 | | Screw | - |
| 0129 | | Screw | - |
| 0130 | | Hinge | - |
| 0131 | | Spacer | - |
| 0132 | | Hinge-cover | - |
| 0133 | | Cover | - |
| 0134 | | Hinge | - |
| 0135 | | Hinge-cover | - |
| 0137 | | Screw | - |
