Model
Bosch B26FT50SNS/01
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B26FT50SNS/01Refrigerator
9 diagrams140 parts
Parts Sections (9)
Diagram
Door & Housing, Hinges (0101-0150)
Parts in Door & Housing, Hinges (0101-0150)
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hinge-cover | - |
| 0102 | | 00622348NLA Switch | Discontinued |
| 0104 |  | Hinge | - |
| 0105 | | Connection piece | - |
| 0107 | | Tube-fill | - |
| 0108 |  | Hose-inlet | - |
| 0109 | | Cover | - |
| 0112 | | Cover | - |

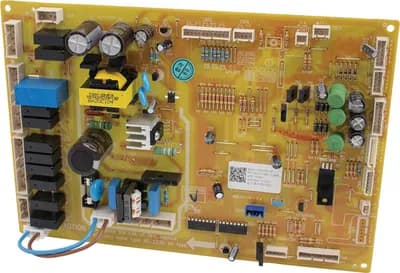

| 0113 |  | 11033702NLA Control unit | Discontinued |
| 0114 |  | Cap | - |
| 0115 |  | 11040627NLA Filter holder | Discontinued |
| 0116 |  | Cap | $10.24 PartSelect |
| 0121 | | Guide | - |
| 0124 | | Water tank | - |
| 0128 | | Hinge | - |
| 0129 | | Hinge | - |
| 0130 | | Reel | - |
| 0131 | | Reel | - |
| 0132 | | Retaining plate | - |
| 0133 | | Foot | $12.10 Parts Dr |
| 0134 | | Seal | - |
| 0135 |  | Switch-door | - |
| 0136 |  | Panel-base | - |
| 0137 |  | 00622347NLA Bearing bracket | Discontinued |
| 0138 |  | UltraClarity Water Filter | $37.17 Part Advantage |
| 0139 | | Screw-adjust | - |
| 0141 |  | Cap | - |
| 0150 | | Cover | - |
