Model
Bosch B30IB900SP/13
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B30IB900SP/13Refrigerator
7 diagrams156 parts
Parts Sections (7)
Diagram

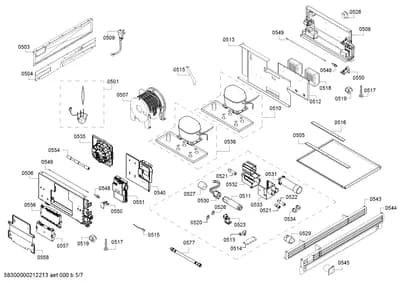

Door & Housing, shelves trays (0501-0577)
Parts in Door & Housing, shelves trays (0501-0577)
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0501 |  | Dryer | $77.42 Part Advantage |
| 0503 |  | Worktop | - |
| 0504 | | Worktop | - |
| 0505 | | Rail | - |
| 0506 |  | Panel | $198.95 ApplianceParts Pro |
| 0507 | | Condenser | $86.17 ApplianceParts Pro |
| 0508 |  | Panel | $161.29 ApplianceParts Pro |
| 0509 | | Power cord | $41.33 ApplianceParts Pro |
| 0510 |  | Compressor | $427.92 ApplianceParts Pro |

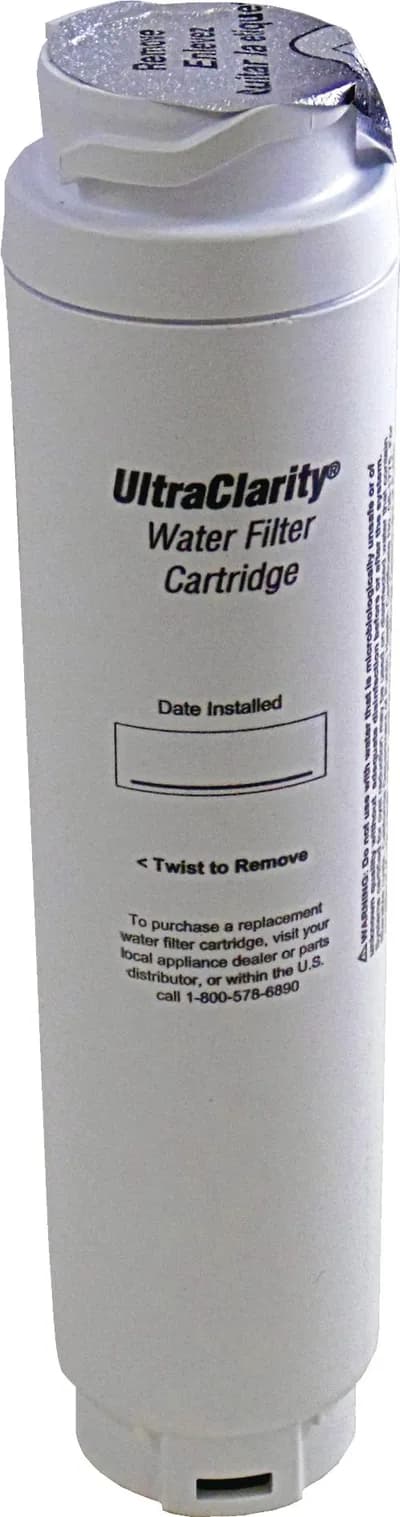

| 0511 |  | UltraClarity Water Filter | $37.17 Part Advantage |
| 0512 | | Plate | - |
| 0513 | | Plate | - |
| 0514 | | Sheet | - |
| 0515 | | Valve-outlet | $3.35 Part Advantage |
| 0516 | | Rail | - |

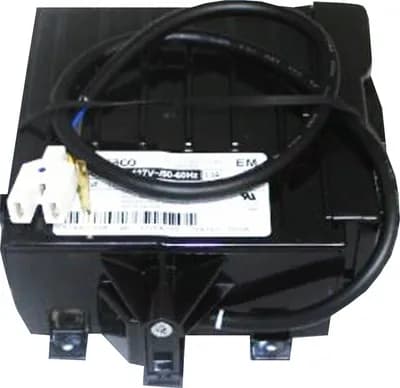

| 0518 |  | Inverter | $114.95 ApplianceParts Pro |
| 0520 |  | Retaining washer | - |
| 0521 | | Connection piece | $8.95 ApplianceParts Pro |
| 0522 |  | Valve | $61.56 ApplianceParts Pro |
| 0523 |  | Valve | $22.60 Part Advantage |
| 0526 | | Retaining washer | - |
| 0527 |  | Foam piece | - |
| 0529 |  | Cover | $7.53 Part Advantage |
| 0531 |  | Filter housing | $11.54 ApplianceParts Pro |
| 0532 | | Holder | - |
| 0533 |  | Holder | $5.54 ApplianceParts Pro |
| 0534 | | Cover | - |

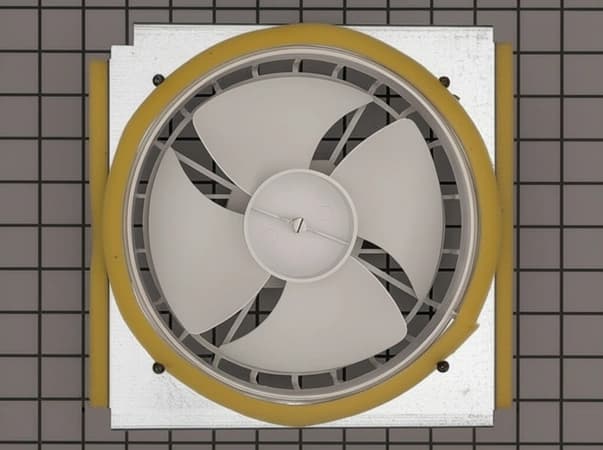

| 0535 |  | Fan | $53.33 ApplianceParts Pro |
| 0537 | – | 12054985 Connectivity module | - |
| 0538 |  | Compressor | - |
| 0543 | | Panel-base | - |
| 0544 | | Panel-base | - |
| 0551 | | Control module not programmed | - |
| 0551 |  | Control module programmed | $344.32 ApplianceParts Pro |
| 0554 | | Fixture | $6.48 ApplianceParts Pro |
| 0554 | | Duct | - |

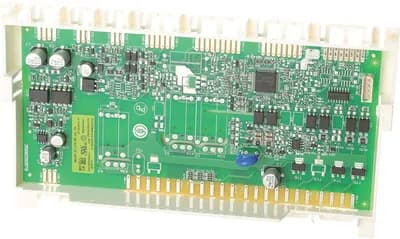

| 0556 |  | Control module | $73.69 Part Advantage |

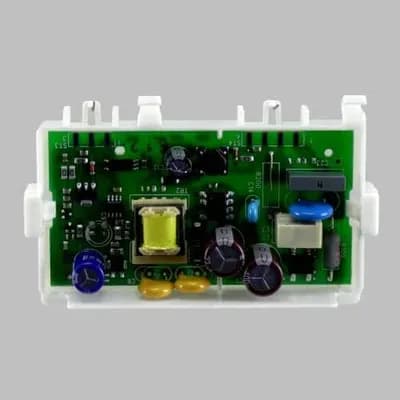

| 0557 |  | Power module | $59.53 RepairClinic |
| 0558 | | Plate | - |
| 0577 |  | Hose | - |
