Model
Bosch B30IB905SP/05
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B30IB905SP/05Refrigerator
7 diagrams191 parts
Parts Sections (7)
Diagram

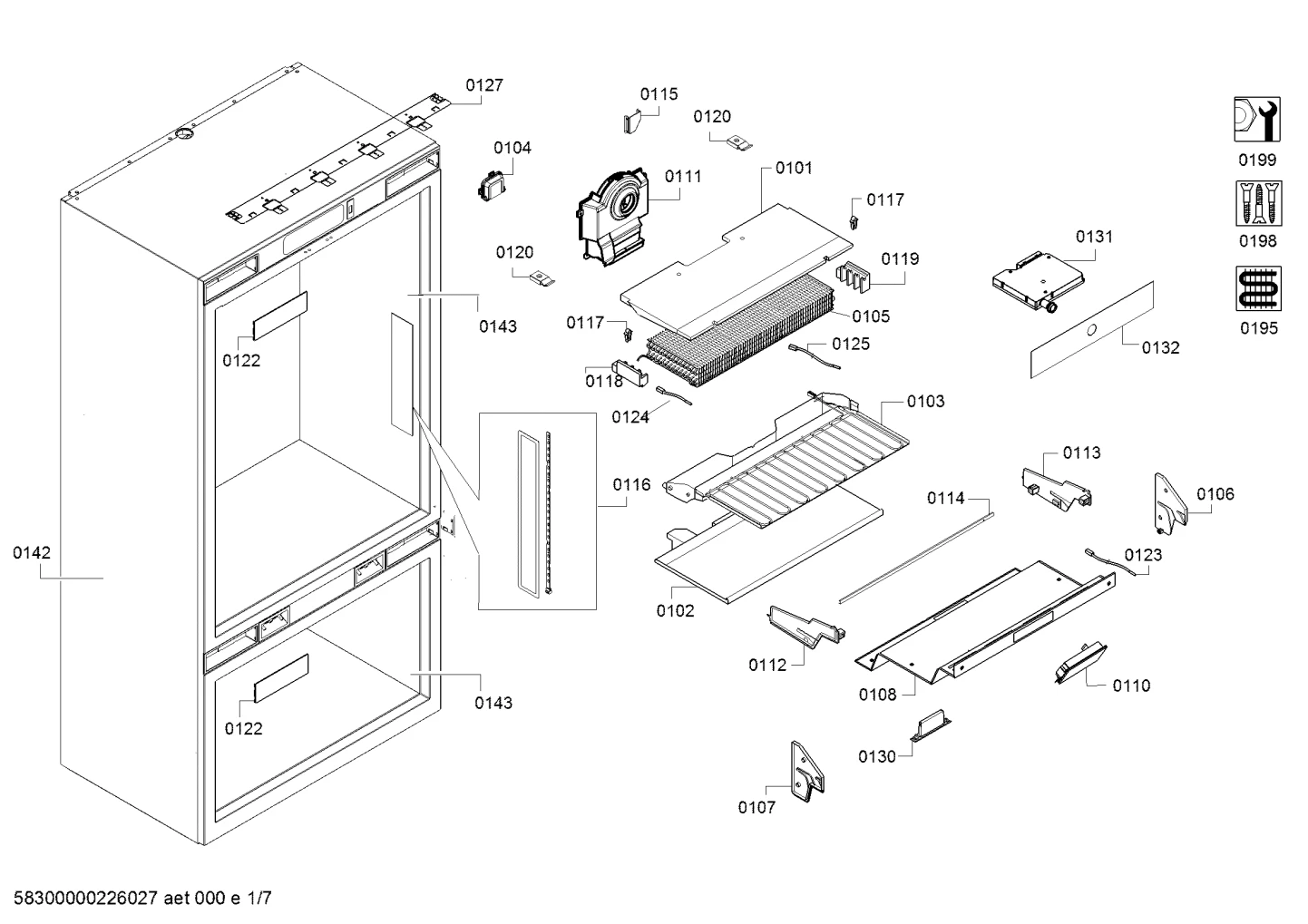

Flaps & Holders, Mounting & Fixing (0101-0199)
Parts in Flaps & Holders, Mounting & Fixing (0101-0199)
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | - |
| 0102 | | Insulating part | - |
| 0103 |  | Heater-defrost | $165.17 Parts Dr |
| 0104 |  | Fixture | $12.95 ApplianceParts Pro |
| 0105 |  | 00777265NLA Evaporator | Discontinued |
| 0106 | | Holder | $3.35 Part Advantage |
| 0107 | | Holder | $3.35 Part Advantage |
| 0108 | | Cover sheet | - |
| 0110 | | Display module | $535.32 ApplianceParts Pro |
| 0111 |  | Fan | $105.48 Part Advantage |
| 0112 | | Holder | - |
| 0113 |  | Holder | - |
| 0114 |  | Holder | $6.41 PartSelect |
| 0115 |  | Fixture | $5.95 ApplianceParts Pro |
| 0116 |  | Diode-led | $84.67 ApplianceParts Pro |
| 0117 | | Holder | $4.18 ApplianceParts Pro |
| 0118 |  | Foam piece | - |
| 0119 | | Foam piece | - |
| 0120 | | Support | - |
| 0122 |  | Cover | $2.88 RepairClinic |
| 0123 |  | Sensor-NTC | $18.00 Part Advantage |
| 0124 |  | Sensor | $14.65 Part Advantage |
| 0125 | – | 10037794 Fuse-thermal | - |
| 0127 |  | Fixture | $29.34 ApplianceParts Pro |
| 0130 |  | Carbon Odor Filter | $21.76 Part Advantage |
| 0131 | | Part not included in this appliance | - |
| 0132 | | Cover | - |
| 0199 |  | Nut | $1.73 RepairClinic |
| 0199 |  | Bypass Cartridge | $30.30 Parts Dr |
