Model
Bosch B30IR800SP/08
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B30IR800SP/08Refrigerator
6 diagrams162 parts
Parts Sections (6)
Diagram

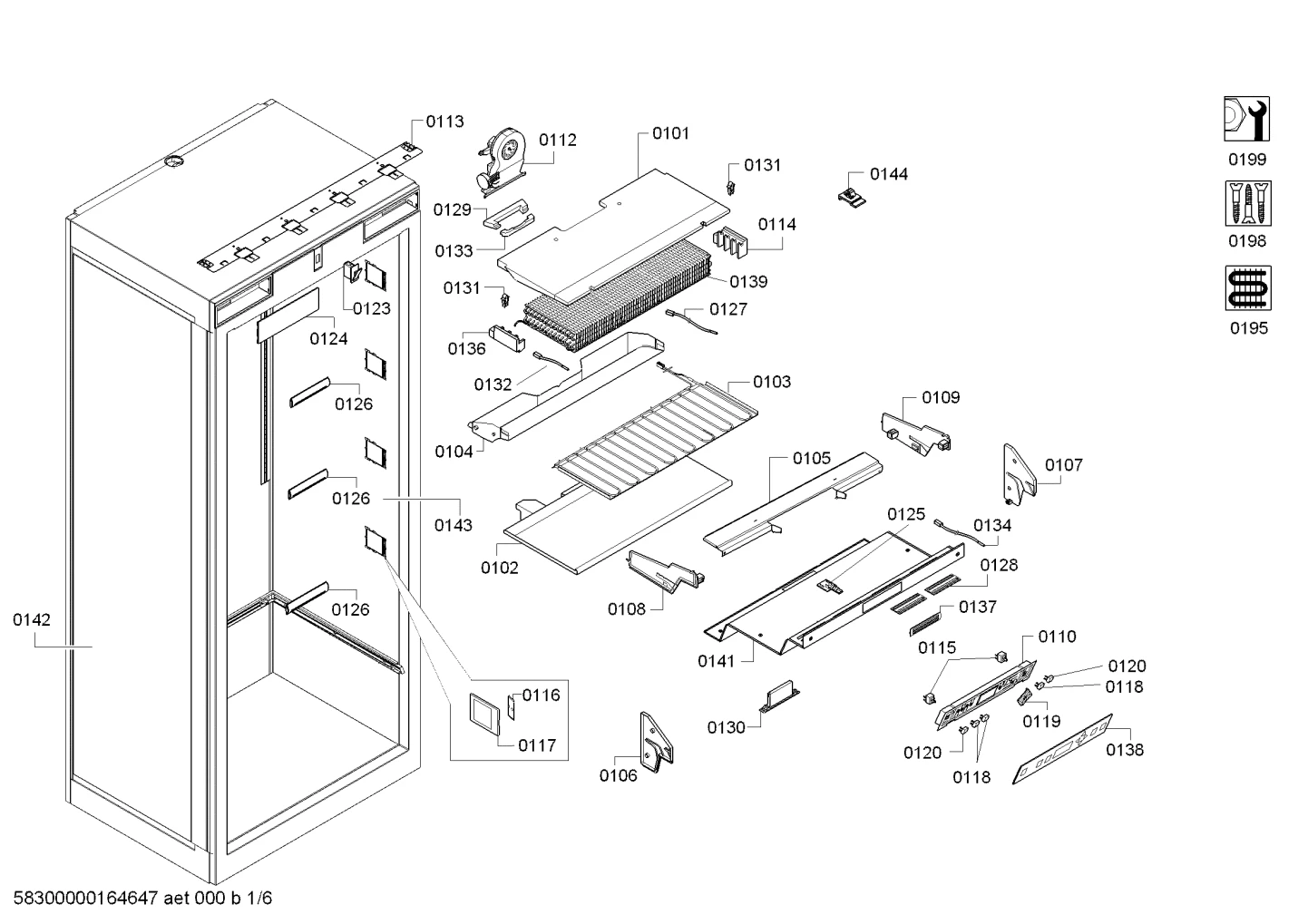

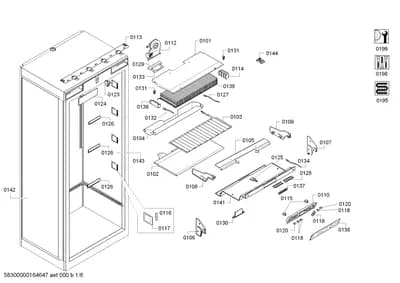

Flaps & Holders, Door & Housing (0101-0199)
Parts in Flaps & Holders, Door & Housing (0101-0199)
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | - |
| 0102 | | Insulating part | $22.14 Parts Dr |
| 0103 |  | Heater-defrost | $154.35 Part Advantage |
| 0104 |  | Heating element | $77.23 ApplianceParts Pro |
| 0105 | | Part not included in this appliance | - |
| 0106 | | Holder | - |
| 0107 | | Holder | - |
| 0108 |  | Holder | - |
| 0109 |  | Holder | - |
| 0110 |  | Operating module | - |
| 0112 |  | Fan motor | $182.69 Part Advantage |
| 0113 |  | Fixture | $29.34 ApplianceParts Pro |
| 0114 |  | Holder | - |
| 0115 | | Push button switch | $11.95 ApplianceParts Pro |
| 0116 |  | Diode-led | $8.35 ApplianceParts Pro |
| 0117 |  | Cover | $9.67 ApplianceParts Pro |
| 0118 | | Key | - |
| 0119 | | Key | - |
| 0120 | | Key | - |
| 0123 |  | Door Switch | $9.21 Part Advantage |
| 0124 |  | Cover | $2.88 RepairClinic |
| 0125 | | Holder | - |
| 0126 | | Air grid | - |
| 0127 |  | Sensor | $14.65 Part Advantage |
| 0128 |  | Air grid | $7.95 ApplianceParts Pro |
| 0129 |  | Support | - |
| 0130 |  | Active carbon filter | $13.37 ApplianceParts Pro |
| 0131 |  | Holder | $6.41 PartSelect |
| 0132 |  | Limiter-temperature | $48.13 Part Advantage |
| 0133 |  | Support | - |
| 0134 |  | Sensor-NTC | $12.14 Part Advantage |
| 0136 | | Foam piece | - |
| 0137 | | Air grid | - |
| 0138 |  | Panel-insert | - |
| 0139 |  | Installation set | - |
| 0141 |  | Worktop | - |
| 0144 | | Fixture | $7.24 Parts Dr |
| 0198 |  | Screw | $4.19 Part Advantage |
| 0199 | | Part not included in this appliance | - |
| 0199 |  | Nut | $1.73 RepairClinic |
