Model
Bosch B30IR900SP/08
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B30IR900SP/08Refrigerator
6 diagrams135 parts
Parts Sections (6)
Diagram

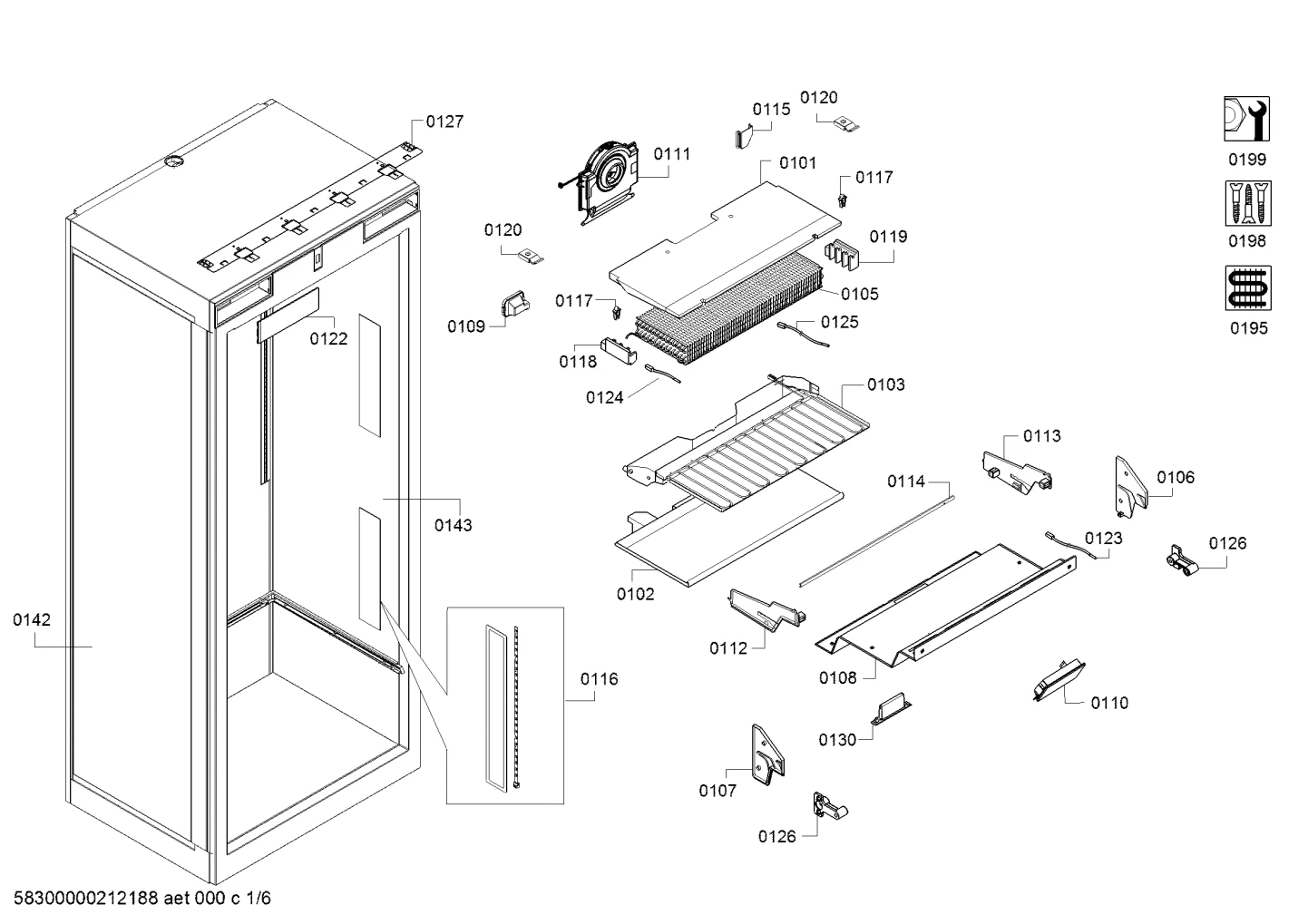

Flaps & Holders, Mounting & Fixing (0101-0199)
Parts in Flaps & Holders, Mounting & Fixing (0101-0199)
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | - |
| 0102 |  | Insulating part | $9.90 ApplianceParts Pro |
| 0103 |  | Heater-defrost | $143.76 Part Advantage |
| 0104 |  | Fixture | $12.95 ApplianceParts Pro |
| 0105 |  | Evaporator | $66.15 Parts Dr |
| 0106 |  | Holder | - |
| 0107 |  | Holder | - |
| 0108 | | Cover sheet | $139.24 ApplianceParts Pro |
| 0110 | | Display module | $535.32 ApplianceParts Pro |
| 0111 |  | Fan | $137.24 Part Advantage |
| 0112 |  | Holder | - |
| 0113 |  | Holder | - |
| 0114 |  | Holder | $6.41 PartSelect |
| 0115 |  | Fixture | $5.95 ApplianceParts Pro |
| 0116 |  | Diode-led | $77.32 Parts Dr |
| 0117 |  | Holder | $6.41 PartSelect |
| 0118 | | Foam piece | - |
| 0119 | | Foam piece | $5.38 ApplianceParts Pro |
| 0120 | | Support | $6.41 ApplianceParts Pro |
| 0122 |  | Cover | $2.88 RepairClinic |
| 0122 | | Cover | $2.88 RepairClinic |
| 0123 |  | Sensor-NTC | $14.14 Parts Dr |
| 0124 |  | Sensor | $14.65 Part Advantage |
| 0125 | | Fuse-thermal | $13.95 ApplianceParts Pro |
| 0126 |  | Support | - |
| 0127 |  | Fixture | $29.34 ApplianceParts Pro |
| 0130 |  | Carbon Odor Filter | $21.76 Part Advantage |
| 0199 |  | Nut | $1.73 RepairClinic |
