Model
Bosch B36CT80SNB/02
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B36CT80SNB/02Refrigerator
8 diagrams213 parts
Parts Sections (8)
Diagram
Mounting & Fixing, drawers (0406-0451)
Parts in Mounting & Fixing, drawers (0406-0451)
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0406 |  | Door | - |
| 0407 |  | Seal-door | $36.80 RepairClinic |
| 0408 |  | Fixture | $18.60 ApplianceParts Pro |
| 0409 |  | Retaining plate | - |
| 0410 |  | Fixture | $10.54 ApplianceParts Pro |
| 0411 |  | Retaining plate | - |
| 0414 |  | Guide | $124.69 Parts Dr |
| 0415 |  | Guide | $117.56 Parts Dr |
| 0417 |  | Drawer | $71.63 Parts Dr |
| 0418 |  | Drawer | $154.35 Part Advantage |
| 0419 |  | Drawer | $56.35 RepairClinic |
| 0420 |  | Box | $60.10 Parts Dr |
| 0422 |  | Clamping piece | $6.40 PartSelect |
| 0423 |  | Connection piece | - |
| 0425 |  | Mounting bracket | $26.37 Part Advantage |
| 0426 |  | Cover | $10.48 ApplianceParts Pro |

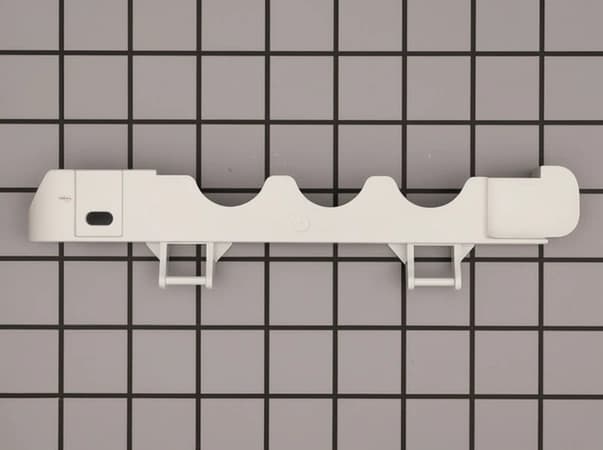

| 0427 |  | Ice maker | $212.04 Part Advantage |
| 0427 |  | Bracket | $19.25 Part Advantage |
| 0429 |  | Retaining plate | $43.39 Parts Dr |
| 0430 |  | Fixture | $12.26 Parts Dr |
| 0431 |  | Fixture | $12.41 ApplianceParts Pro |
| 0432 |  | Guide | $56.83 Parts Dr |
| 0433 |  | Guide | $37.95 ApplianceParts Pro |
| 0434 | | Handle-door | - |
| 0435 | | Fixture | - |
| 0436 | | Fixture | - |
| 0438 |  | Screw | $2.93 Part Advantage |
| 0439 |  | Screw | $4.19 Part Advantage |
| 0440 |  | Collar | $32.20 ApplianceParts Pro |
| 0441 |  | Ice Scooper | $14.23 Parts Dr |
| 0442 |  | Mounting bracket | - |
| 0443 |  | Shelf | - |
| 0444 | | Screw | $2.93 Part Advantage |
| 0445 | | Guide | $37.95 ApplianceParts Pro |
| 0446 | | Guide | $56.83 Parts Dr |
| 0450 | | Handle-door | - |
| 0451 |  | Brake element | $27.68 Parts Dr |
