Model
Bosch B36FD50SNS/08
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B36FD50SNS/08Refrigerator
7 diagrams173 parts
Parts Sections (7)
Diagram

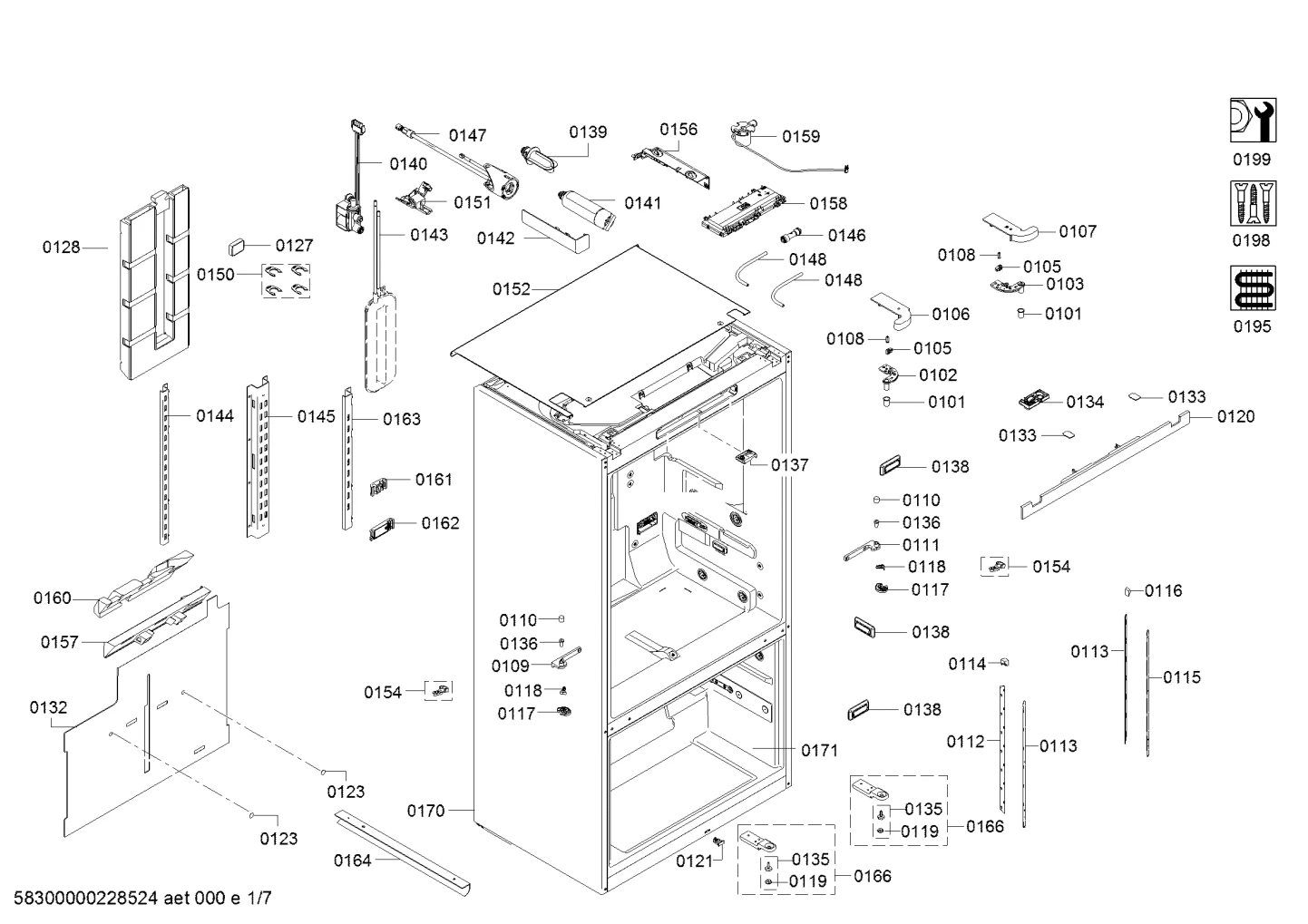

Door & Housing, Hinges (0101-0198)
Parts in Door & Housing, Hinges (0101-0198)
55 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hinge bushing | $5.38 ApplianceParts Pro |
| 0102 |  | Door hinge | $26.88 PartSelect |
| 0103 |  | Door hinge | $18.00 Part Advantage |
| 0105 |  | Pin | $5.35 Parts Dr |
| 0106 |  | Hinge-cover | $16.64 PartSelect |
| 0107 |  | Hinge-cover | $8.10 ApplianceParts Pro |
| 0108 |  | Fixture | $6.40 PartSelect |
| 0109 |  | Hinge | $17.28 ApplianceParts Pro |
| 0110 |  | Hinge bushing | $6.40 PartSelect |
| 0111 |  | Hinge | $37.65 Parts Dr |
| 0112 |  | Light bar | $14.52 ApplianceParts Pro |
| 0113 |  | Diode-led | $28.88 Part Advantage |
| 0114 |  | Cover | - |
| 0115 |  | Light bar | $14.33 ApplianceParts Pro |
| 0116 |  | Cover | - |
| 0117 |  | Stop | $4.19 ApplianceParts Pro |
| 0118 |  | Stop | $6.68 ApplianceParts Pro |
| 0119 |  | Rubber foot | $2.30 RepairClinic |
| 0120 | | Display module | $258.97 Part Advantage |
| 0121 |  | Switch-element | $22.97 Parts Dr |
| 0123 |  | Cover | $3.35 Part Advantage |
| 0127 |  | Carbon Air Filter | $19.31 Parts Dr |
| 0128 | | Air channel exhaust | - |
| 0132 |  | Air channel exhaust | $293.08 ApplianceParts Pro |
| 0133 |  | Switch | $32.64 Part Advantage |
| 0134 |  | Connectivity module | $190.32 ApplianceParts Pro |
| 0135 |  | Screw-adjust | $26.58 Parts Dr |
| 0136 |  | Screw-adjust | $6.40 PartSelect |
| 0137 |  | Guide | $6.41 ApplianceParts Pro |
| 0138 |  | Chamber temperature sensor | $37.25 Part Advantage |
| 0140 |  | Valve-magnet | $74.93 Part Advantage |
| 0141 |  | UltraClarity® Pro Water Filter | $37.17 Part Advantage |
| 0142 |  | Cover | $12.95 ApplianceParts Pro |
| 0143 |  | Water tank | $83.94 Parts Dr |
| 0144 |  | Guide | - |
| 0145 |  | Guide | - |
| 0146 |  | Valve | $23.09 Parts Dr |
| 0147 |  | Mounting bracket | $114.03 Part Advantage |
| 0148 |  | Water tube | $302.57 Parts Dr |
| 0150 |  | fastening ring | $5.95 ApplianceParts Pro |
| 0151 |  | Cover | - |
| 0152 | | Cover | - |
| 0154 |  | Door Stopper | $12.22 RepairClinic |
| 0156 | | Retaining plate | - |
| 0157 |  | Cover | - |
| 0158 |  | Control unit | $160.02 Part Advantage |
| 0159 |  | Water inlet | $39.83 ApplianceParts Pro |
| 0160 | | Ventilation panel | - |
| 0161 |  | Fixture | $6.40 PartSelect |
| 0162 | | Fixture | $6.40 PartSelect |
| 0163 |  | Guide | - |
| 0164 |  | Sealing kit | $18.19 Parts Dr |
| 0165 |  | Repair set-role | $13.96 Parts Dr |
| 0166 |  | Hinge | $10.54 ApplianceParts Pro |
| 0198 |  | Screw | $19.21 ApplianceParts Pro |
