Model
Bosch B36IB70NSP/13
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
B36IB70NSP/13Refrigerator
7 diagrams207 parts
Parts Sections (7)
Diagram

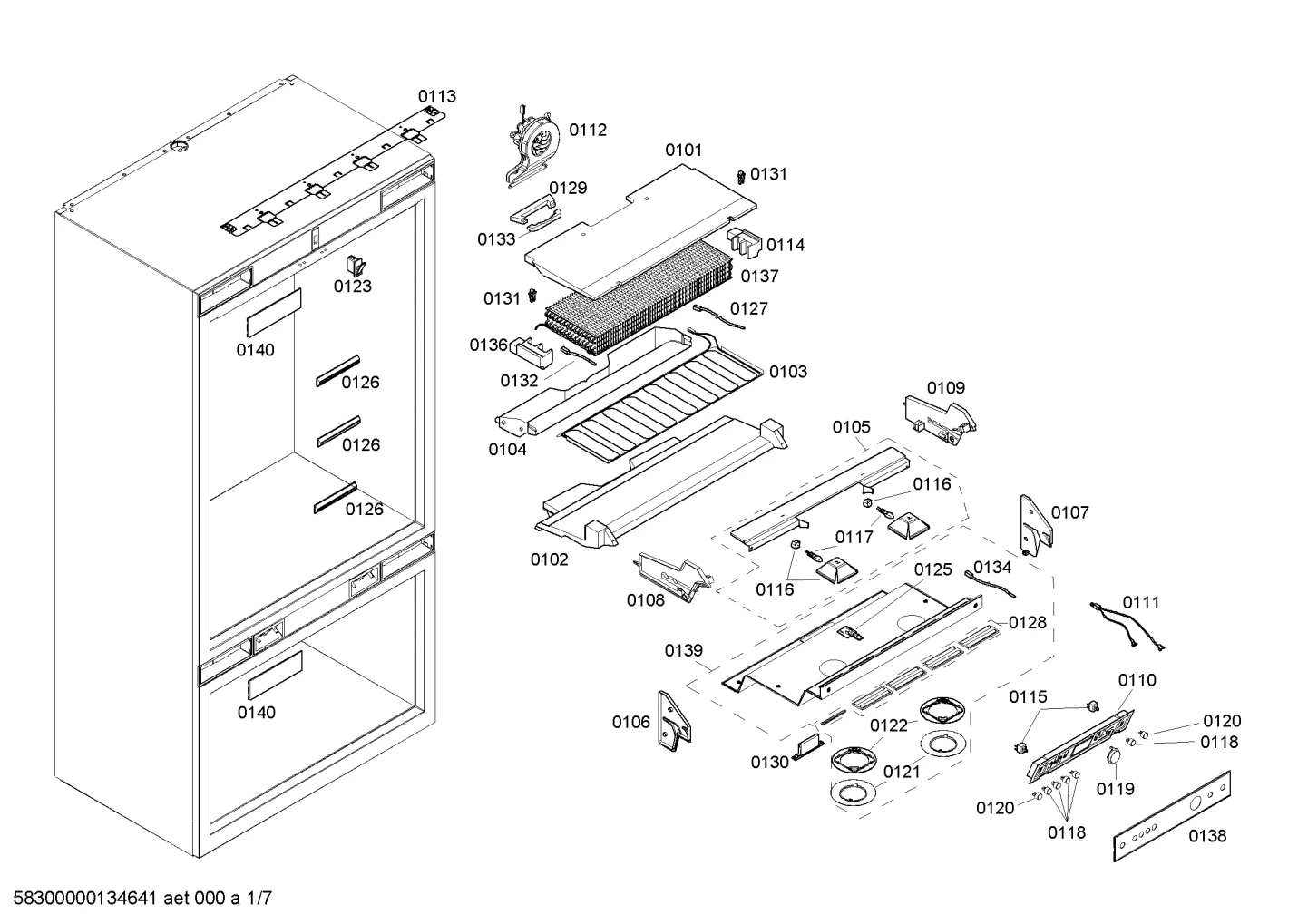

Mounting & Fixing, Door & Housing (0101-0199)
Parts in Mounting & Fixing, Door & Housing (0101-0199)
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | $21.76 PartSelect |
| 0102 |  | Insulating part | $33.14 ApplianceParts Pro |
| 0103 |  | Heater-defrost | $170.63 Part Advantage |
| 0104 |  | Heating element | $84.46 Part Advantage |
| 0105 |  | Fixture | $110.95 ApplianceParts Pro |
| 0106 |  | Fixture | - |
| 0107 | | Fixture | - |
| 0108 |  | Fixture | - |
| 0109 |  | Fixture | - |
| 0110 |  | Operating module | $141.82 Parts Dr |
| 0111 | | Cable | - |
| 0112 |  | Fan motor | $207.02 Part Advantage |
| 0113 |  | Fixture | $12.16 ApplianceParts Pro |
| 0114 | | Foam piece | - |
| 0115 |  | Switch | $17.95 Parts Dr |
| 0116 | | Reflector | - |
| 0117 |  | Halogen Lamp | $12.21 Part Advantage |
| 0118 | | Key | - |
| 0119 | | Key | - |
| 0120 | | Key | - |
| 0121 |  | Cover | - |
| 0122 | | Holder | - |
| 0123 |  | Door Switch | $9.21 Part Advantage |
| 0125 | | Cover | $6.41 PartSelect |
| 0126 | | Air grid | - |
| 0127 |  | Limiter-temperature | $48.13 Part Advantage |
| 0128 |  | Air grid | $7.95 ApplianceParts Pro |
| 0129 |  | Support | - |
| 0130 |  | Carbon Odor Filter | $21.76 Part Advantage |
| 0131 | | Holder | $4.18 ApplianceParts Pro |
| 0132 |  | Sensor | $14.65 Part Advantage |
| 0133 |  | Support | - |
| 0134 |  | Sensor-NTC | $10.95 ApplianceParts Pro |
| 0136 |  | Foam piece | $7.68 PartSelect |
| 0137 |  | Evaporator | $127.32 ApplianceParts Pro |
| 0138 | | Panel | $27.62 Part Advantage |
| 0139 | | Worktop | $129.52 ApplianceParts Pro |
| 0140 | | Cover | $5.57 ApplianceParts Pro |
| 0141 |  | Cap | $10.40 ApplianceParts Pro |
| 0199 |  | Screw | $4.19 Part Advantage |
| 0199 |  | Screw | $3.34 ApplianceParts Pro |
| 0199 |  | Support | $7.61 ApplianceParts Pro |
| 0199 | | Repair-set | - |
| 0199 | | Insulating part | - |
