Model
Gaggenau BS475100/06
Wall Oven
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
BS475100/06Wall Oven
5 diagrams91 parts
Parts Sections (5)
Diagram

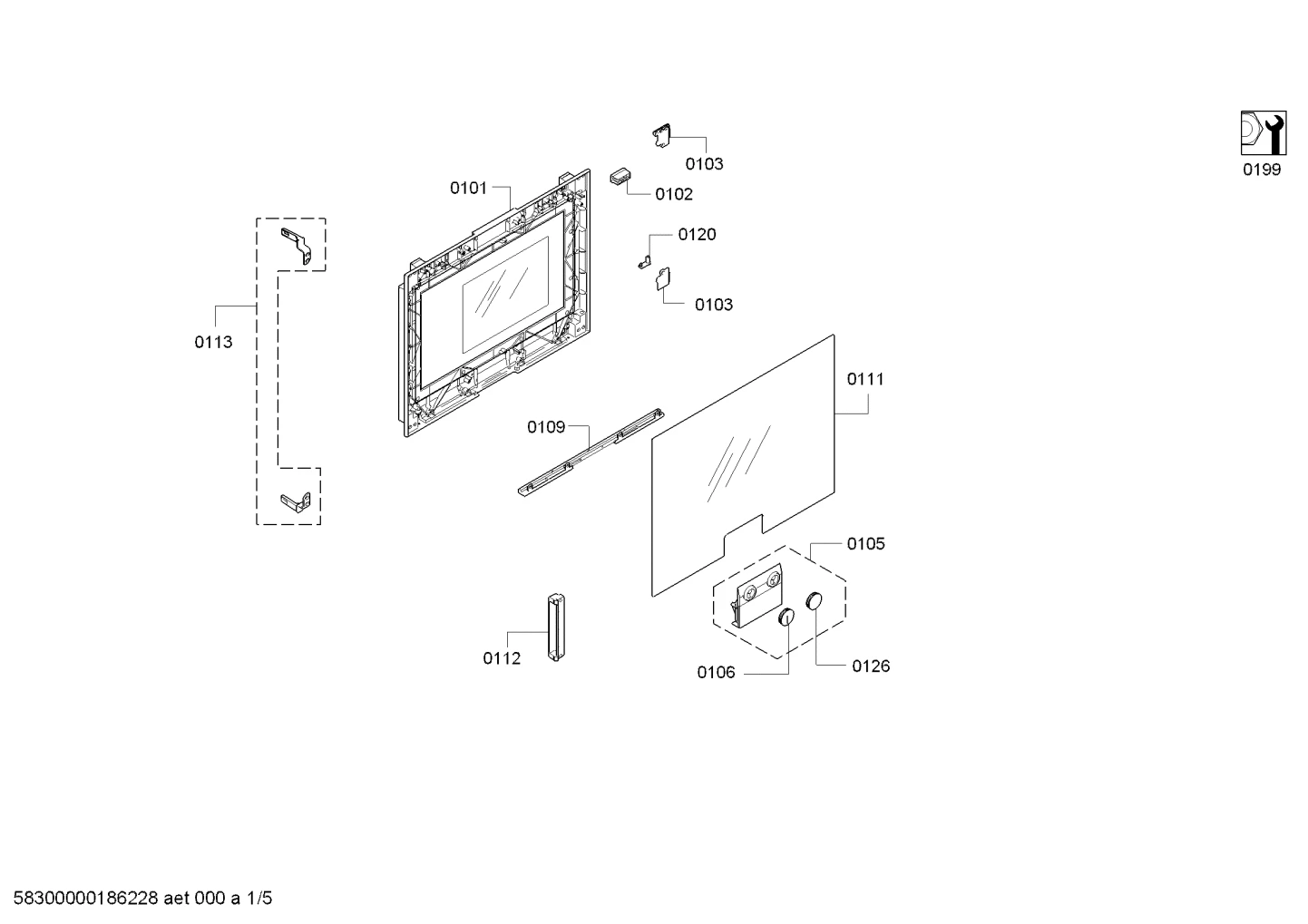

Handles & Knobs, Screws (0101-0198)
Parts in Handles & Knobs, Screws (0101-0198)
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Frame | - |
| 0102 | | Partset | - |
| 0103 | | Cover | - |
| 0105 | | Operating module not programmed | - |
| 0105 | | Operating module programmed | - |
| 0106 |  | Rotary knob | $107.32 Parts Dr |
| 0109 | | Drain gutter | - |
| 0112 | | Tray handle-dispenser | - |
| 0113 |  | Hook | - |
| 0120 | | Partset | - |
| 0126 |  | Rotary knob | - |
| 0198 | | Screw-set | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw | - |
