Model
Gaggenau BS475102/06
Wall Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
BS475102/06Wall Oven
6 diagrams128 parts
Parts Sections (6)
Diagram

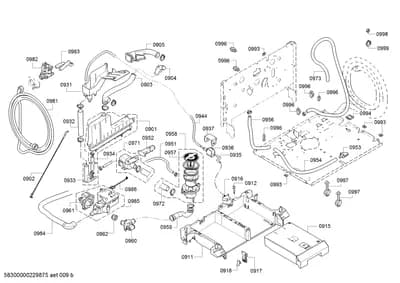

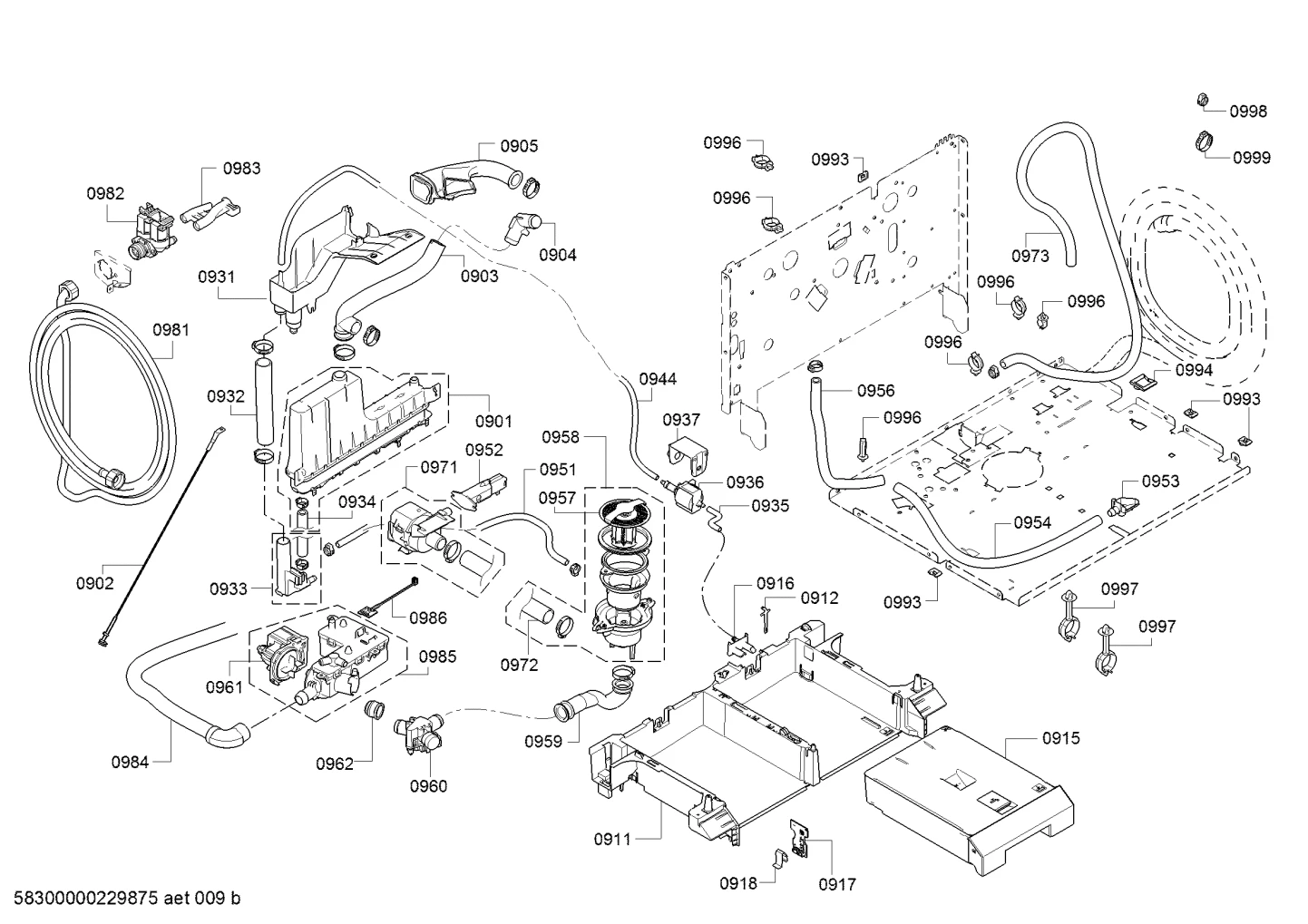

Hoses, Flaps & Holders (0901-0999)
Parts in Hoses, Flaps & Holders (0901-0999)
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0901 |  | Steam generator unit | - |
| 0902 |  | Temperature sensor | - |
| 0903 |  | Hose-vent | - |
| 0904 |  | Pipe connection piece | - |
| 0905 |  | Hose-inlet | - |
| 0911 |  | Housing | - |
| 0912 |  | Sensor | - |
| 0915 |  | Water tank | - |
| 0916 |  | Coupling | - |
| 0917 |  | Sensor | - |
| 0918 |  | Holder | - |
| 0931 |  | Tank | - |
| 0932 |  | Hose-inlet | - |
| 0933 |  | Coupling | - |
| 0934 |  | Hose | - |
| 0935 |  | Hose | - |
| 0936 |  | Power module programmed | $525.40 ApplianceParts Pro |
| 0936 | – | 10030422 Sticker | - |
| 0937 |  | Holder | - |
| 0944 |  | Hose | - |
| 0945 |  | 00552830NLA Unavailable as spare part | Discontinued |
| 0946 | | 00552830NLA Unavailable as spare part | Discontinued |
| 0951 |  | Hose | - |
| 0952 |  | Valve | $53.80 ApplianceParts Pro |
| 0953 | – | 10032998 Pipe connection piece | - |
| 0954 | – | 12049124 Hose | - |
| 0956 |  | Hose-overflow | - |
| 0957 |  | Sieve | - |
| 0958 |  | Siphon | - |
| 0959 | | Hose | - |
| 0960 |  | Valve-magnet | - |
| 0961 | | Pump | - |
| 0962 |  | Seal | - |
| 0971 | | Pump-circulating | - |
| 0972 |  | Hose | - |
| 0973 |  | Hose | - |
| 0981 |  | Hose-inlet | - |
| 0982 |  | Valve-two way | - |
| 0983 |  | Hose-fill | - |
| 0984 |  | Outlet hose | - |
| 0985 | – | 12034684 Tank | - |
| 0986 |  | Sensor | $58.37 Part Advantage |
| 0993 | – | 10032989 Guide | - |
| 0994 |  | Insulating part | - |
| 0995 | | 00552830NLA Unavailable as spare part | Discontinued |
| 0996 | | 00552830NLA Unavailable as spare part | Discontinued |
| 0997 | | 00552830NLA Unavailable as spare part | Discontinued |
| 0998 |  | Hose clamp | - |
| 0999 |  | Hose clamp | $73.95 ApplianceParts Pro |
