Model
Bosch BSG81296UC/03
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
BSG81296UC/03Wall Oven
1 diagram57 parts
Parts Sections (1)
Diagram

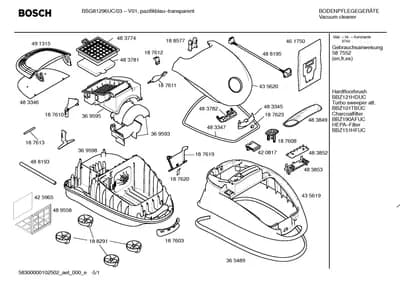

Flaps & Holders, Lids & Covers (0001-0095)
Parts in Flaps & Holders, Lids & Covers (0001-0095)
67 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Case-bottom | - |
| 0002 | | Case-upper part | - |
| 0003 | | Lid | - |
| 0004 | | Grid | - |
| 0005 |  | Exhaust filter | $6.41 PartSelect |
| 0006 | | Axis | - |
| 0007 | | 00420817NLA Lid | Discontinued |
| 0008 | | PC board-receiver/ir | - |
| 0009 | | Holder | - |
| 0010 |  | Reel | - |
| 0011 |  | Lining | - |
| 0012 | | Strip | - |
| 0013 | | 00488195NLA Power cord | Discontinued |
| 0015 | | Button | - |
| 0016 |  | Spring | $3.39 RepairClinic |
| 0017 |  | Bag Holder | - |
| 0018 |  | Frame | - |
| 0020 | | Lid | - |
| 0021 | | Insert | - |
| 0022 |  | High performance hygiene filter | $34.31 |
| 0023 | | Holder | - |
| 0024 | | High performance hygiene filter | $34.31 |
| 0025 |  | Adapter | - |
| 0026 |  | Spindle | - |
| 0027 | | Sealing | - |
| 0028 |  | Latch | - |
| 0029 |  | Spring | $2.67 RepairClinic |
| 0030 |  | Vacuum Bags (5 bags + 1 Micro-Hygiene Filter) | $39.74 Parts Dr |
| 0031 | | 00587552NLA Instruction manual | Discontinued |
| 0032 | | Holder | $1.14 RepairClinic |

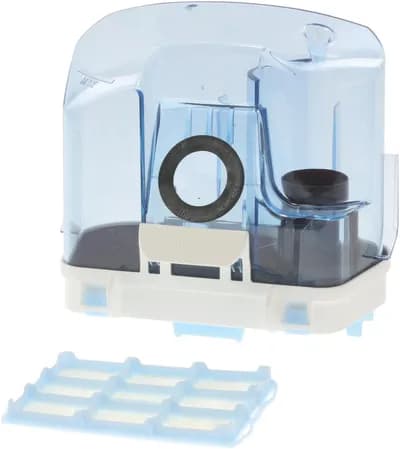

| 0033 |  | Dust container | - |
| 0034 | | Spring | - |
| 0035 | | Dust container | - |
| 0036 | | Dust container | - |
| 0037 | | Seal-lid | - |
| 0038 | | Dust container | - |
| 0039 |  | Sealing | - |
| 0040 | | Dust container | - |
| 0041 | | Dust container | - |
| 0042 |  | Case-bottom | - |
| 0043 | | Case-bottom | - |
| 0044 | | Dust container | - |
| 0050 | | 00143339NLA Blower motor | Discontinued |
| 0051 | | Motor module | - |
| 0052 | | Cable reel | - |
| 0053 |  | Holder | $6.41 PartSelect |
| 0054 | | Hose | - |
| 0070 |  | Hard floor nozzle | - |
| 0073 |  | Tube | $126.06 Parts Dr |
| 0074 | | 00369629NLA Hose | Discontinued |
| 0075 |  | Combination nozzle | - |
| 0080 | | Stud | - |
| 0081 | | Wheel | - |
| 0082 | | Brush | - |
| 0083 | | Belt | - |
| 0084 | | Case-upper part | - |
| 0085 | | Lamp-flourescent | - |
| 0086 | | Lamp-flourescent | - |
| 0087 | | Lightguide | - |
| 0088 | | Wheel | - |
| 0089 | | Mounting set | - |
| 0090 | | Motor | - |
| 0091 | | Case-bottom | - |
| 0092 | | Motor module | - |
| 0093 | | Brush | - |
| 0094 | | Attachment | - |
| 0095 | | Case-bottom | - |
