Model
Bosch BSG81313UC/06
Wall Oven
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
BSG81313UC/06Wall Oven
3 diagrams45 parts
Parts Sections (3)
Diagram

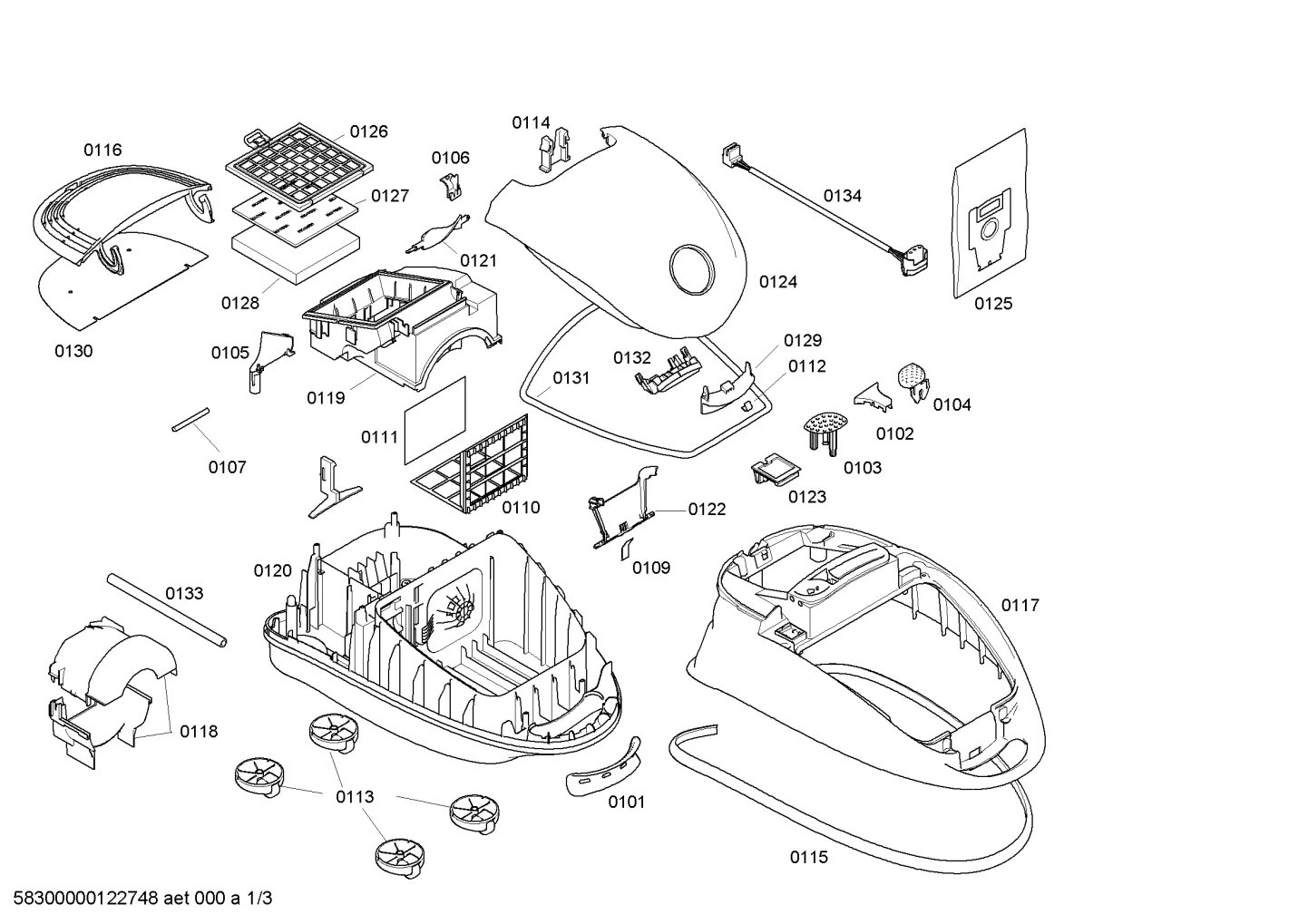

Lids & Covers, Springs (0101-0134)
Parts in Lids & Covers, Springs (0101-0134)
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Lining | - |
| 0102 |  | Display | - |
| 0103 | | Button | - |
| 0104 |  | Slide | - |
| 0105 | | Insert | - |
| 0106 |  | Adapter | - |
| 0107 | | Axis | - |
| 0109 |  | Spring | $3.39 RepairClinic |
| 0110 |  | Motor Protection Filter | $11.29 RepairClinic |
| 0111 | | Motor Protection Filter | $11.29 RepairClinic |
| 0112 |  | Spring | $2.67 RepairClinic |
| 0113 |  | Reel | - |
| 0114 | | Holder | - |
| 0115 | | Strip | - |
| 0116 | | Grid | - |
| 0117 | | Case-upper part | - |
| 0118 | | Lid | - |
| 0119 | | Lid | - |
| 0120 | | Case-bottom | - |
| 0121 | | Spindle | - |
| 0122 |  | Bag Holder | - |
| 0123 | | 00420817NLA Lid | Discontinued |
| 0124 | | 00432314NLA Lid | Discontinued |
| 0125 |  | Vacuum Bags (5 bags + 1 Micro-Hygiene Filter) | $39.74 Parts Dr |

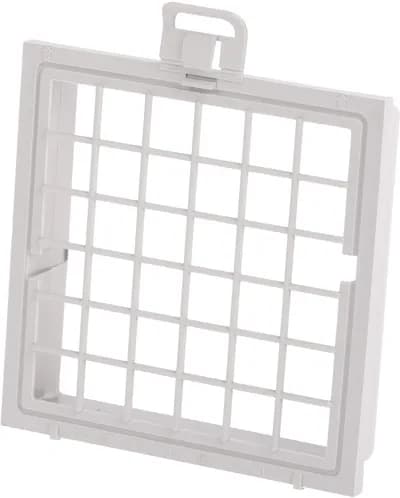

| 0126 |  | Frame | - |
| 0127 |  | Motor Protection Filter | - |

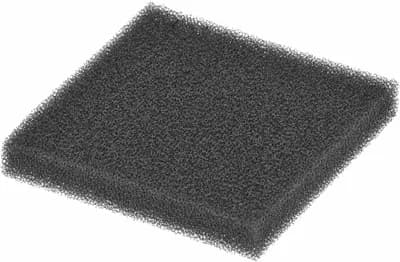

| 0128 |  | Exhaust Filter | - |
| 0129 |  | Latch | - |
| 0130 |  | Exhaust filter | $6.41 PartSelect |
| 0131 | | Sealing | - |
| 0132 | | Holder | $1.14 RepairClinic |
| 0133 | | Hose | - |
| 0134 | | 00488195NLA Power cord | Discontinued |
