Model
Bosch BSG81335UC/01
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
BSG81335UC/01Wall Oven
1 diagram49 parts
Parts Sections (1)
Diagram

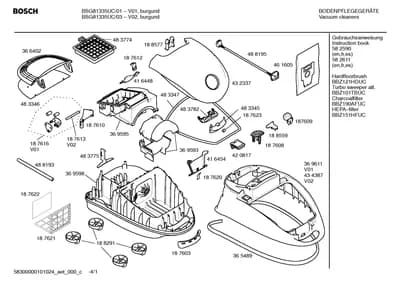

Lids & Covers, Flaps & Holders (0001-0084)
Parts in Lids & Covers, Flaps & Holders (0001-0084)
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Case-bottom | - |
| 0002 | | 00369611NLA Case-upper part | Discontinued |
| 0003 | | Lid | - |
| 0004 | | Grid | - |
| 0005 |  | Exhaust filter | $6.41 PartSelect |
| 0009 | | Reel | - |
| 0010 |  | Reel | - |
| 0011 |  | Lining | - |
| 0012 | | Strip | - |
| 0013 |  | Slide | - |
| 0014 | | Display | - |
| 0015 | | Button | - |
| 0016 |  | Spring | $3.39 RepairClinic |
| 0017 |  | Bag Holder | - |
| 0018 |  | Motor Protection Filter | $11.29 RepairClinic |
| 0019 | | Motor Protection Filter | $11.29 RepairClinic |
| 0020 | | Lid | - |
| 0021 | | Insert | - |
| 0022 |  | High performance hygiene filter | $34.31 |
| 0025 |  | Adapter | - |
| 0026 | | Spindle | - |
| 0027 | | Sealing | - |
| 0028 |  | Latch | - |
| 0029 |  | Spring | $2.67 RepairClinic |
| 0030 |  | Vacuum Bags (5 bags + 1 Micro-Hygiene Filter) | $39.74 Parts Dr |
| 0031 | | Instruction manual | - |
| 0032 | | Lid | - |
| 0033 | | Lever | - |
| 0035 | | Instruction manual | - |
| 0036 | | 00420817NLA Lid | Discontinued |
| 0037 | | Holder | $1.14 RepairClinic |
| 0038 | | 00488195NLA Power cord | Discontinued |
| 0039 | | Holder | - |
| 0050 | | 00143337NLA Blower motor | Discontinued |
| 0051 | | Motor module | - |
| 0052 | | Cable reel | - |
| 0053 |  | Holder | $6.41 PartSelect |
| 0054 | | Hose | - |
| 0070 | – | 17005791 Floor nozzle | - |
| 0073 |  | Telescopic tube | - |
| 0074 |  | Hose | $48.86 PartSelect |
| 0075 |  | Combination nozzle | - |
| 0076 |  | Handle | - |
| 0077 |  | Scraper | - |
| 0078 |  | Thread lifter | - |
| 0080 | | Electronic brush | - |
| 0081 |  | Bearing | - |
| 0082 |  | Cylinder | - |
| 0083 |  | Belt | - |
| 0084 | | Cable harness | - |
