Model
Gaggenau BX480111/05
Wall Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
BX480111/05Wall Oven
6 diagrams95 parts
Parts Sections (6)
Diagram

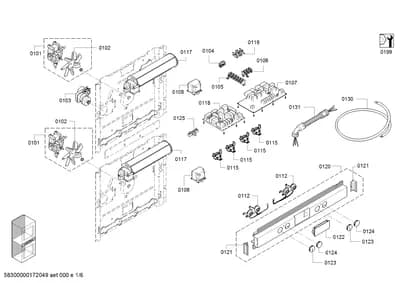

Fan Parts, motors (0101-0199)
Parts in Fan Parts, motors (0101-0199)
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Blower motor | $156.11 RepairClinic |
| 0102 |  | Fan blade | - |
| 0103 |  | Motor | - |
| 0104 |  | Stress-relief | - |
| 0105 | | Terminal | - |
| 0106 | | Part not included in this appliance | - |
| 0107 | | Power module not programmed | $320.70 ApplianceParts Pro |
| 0107 | | Power module programmed | - |
| 0108 | | Transformer-mains | - |
| 0112 |  | Encoder | - |
| 0115 |  | Limiter-temperature | $18.41 Part Advantage |
| 0117 |  | Resistor-vdr | - |
| 0117 |  | Fan motor | - |
| 0118 |  | PC board | $255.91 PartSelect |
| 0119 | | 00156356NLA Terminal | Discontinued |
| 0120 | | Panel | - |
| 0121 | | Cover | - |
| 0122 |  | Operating module not programmed | - |
| 0123 |  | Rotary knob | $107.32 Parts Dr |
| 0124 |  | Rotary knob | - |
| 0125 | | Resistor-vdr | - |
| 0131 | | Part not included in this appliance | - |
| 0198 |  | Screw | - |
| 0199 | | Repair-set | - |
| 0199 |  | Fan blade | $39.44 RepairClinic |
