Model
Gaggenau CX482111/01
Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
CX482111/01Cooktop
2 diagrams37 parts
Parts Sections (2)
Diagram

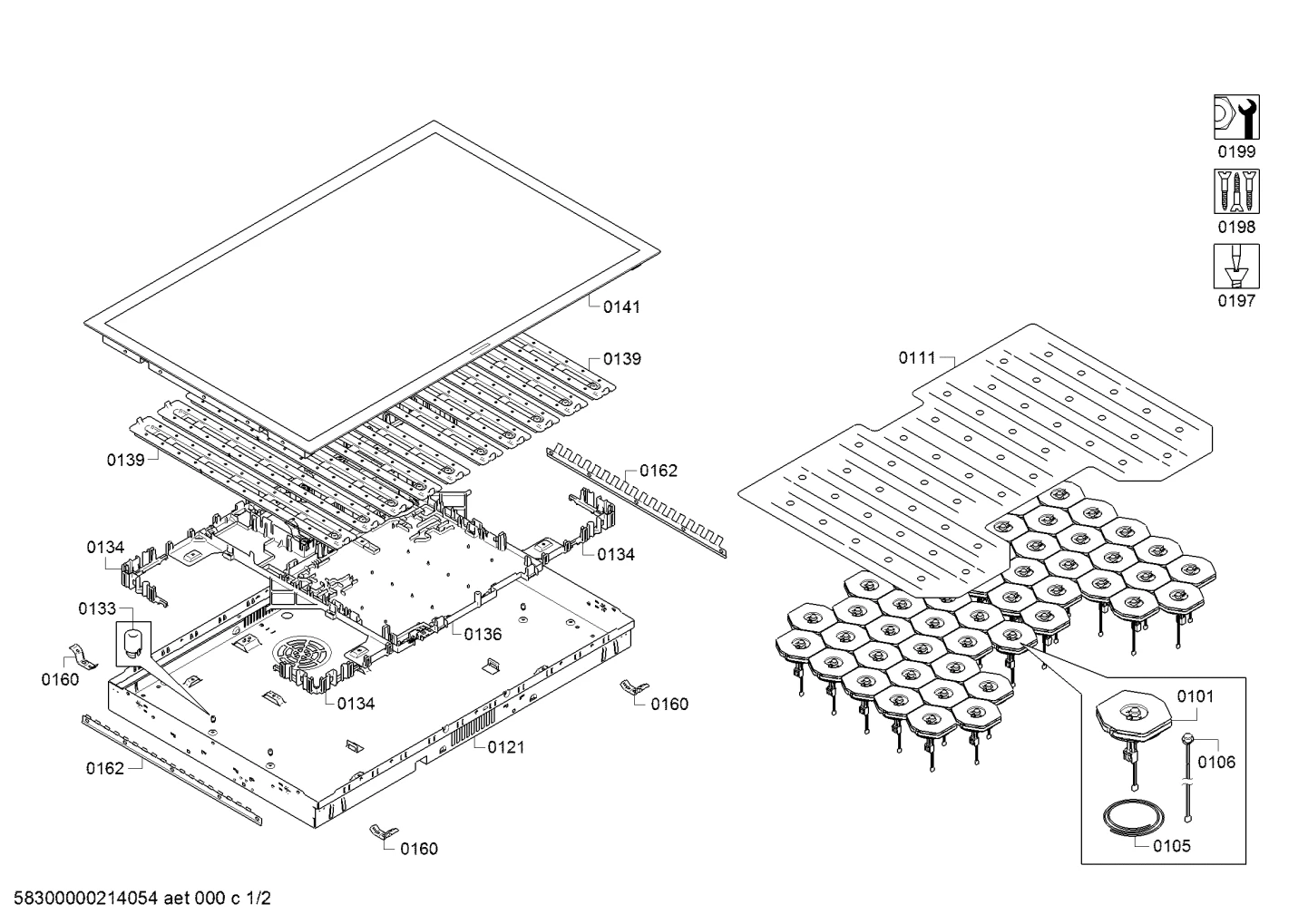

Screws, Flaps & Holders (0101-0199)
Parts in Screws, Flaps & Holders (0101-0199)
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Induction hotplate | $51.99 Parts Dr |
| 0105 |  | Spring | - |
| 0106 |  | Sensor-NTC | - |
| 0111 |  | Lid | - |
| 0133 |  | Holder | - |
| 0134 |  | Brake element | - |
| 0136 |  | Holder | - |
| 0139 |  | Case-bottom | $16.40 ApplianceParts Pro |
| 0162 |  | Fixing kit | - |
| 0197 |  | Sealing strip | - |
| 0198 |  | Screw-set | - |
| 0198 |  | Screw | $4.37 ApplianceParts Pro |
| 0198 | | Screw | $4.37 ApplianceParts Pro |
| 0198 |  | Screw | - |
| 0199 |  | Silicone Patches (Set of 5) | - |
| 0199 |  | Screw | - |
| 0199 | – | 10019445 Screw | - |
