Model
Gaggenau DF480100/36
Dishwasher
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
DF480100/36Dishwasher
8 diagrams167 parts
Parts Sections (8)
Diagram

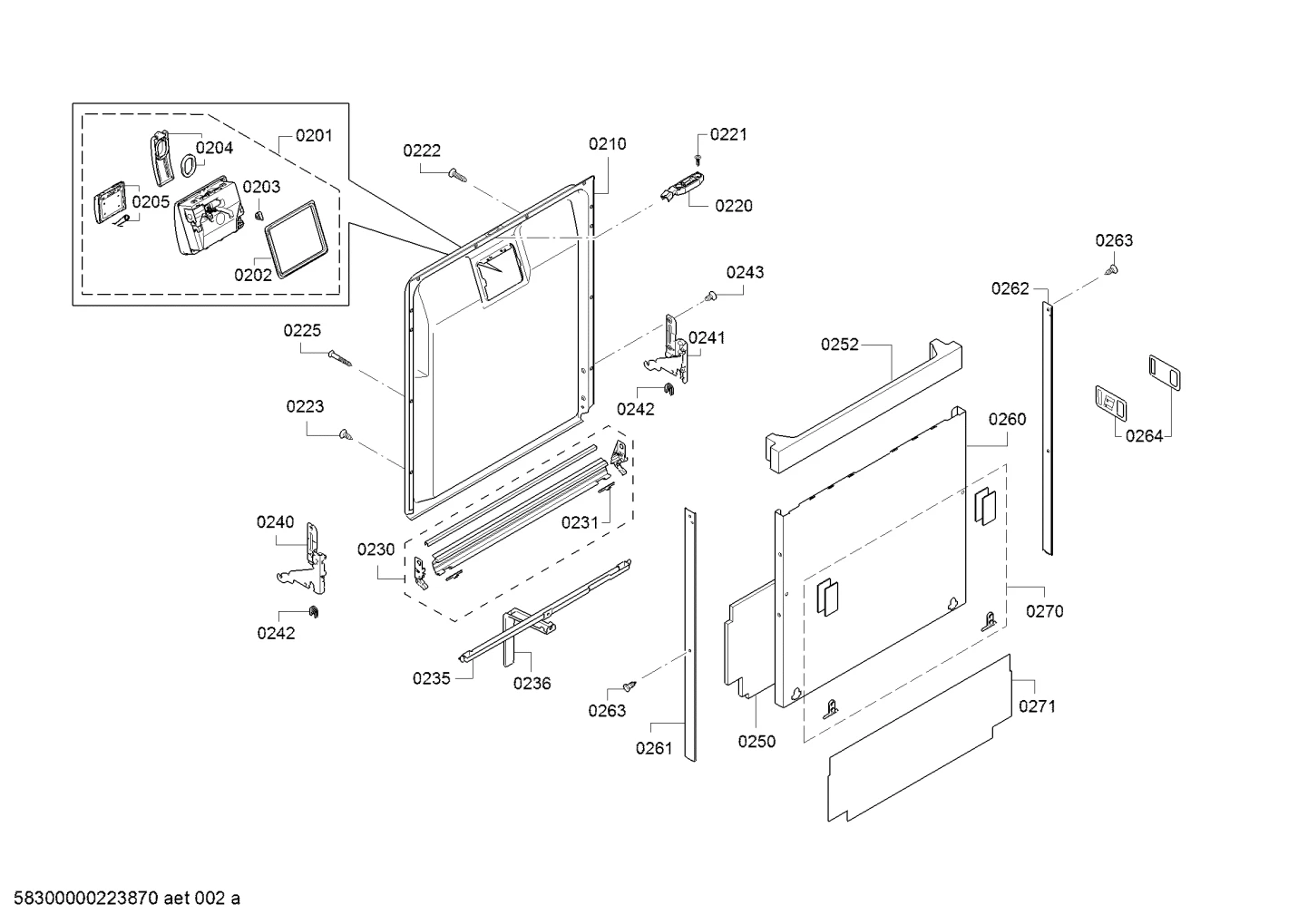

Screws, Seals & Gaskets (0201-8102)
Parts in Screws, Seals & Gaskets (0201-8102)
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

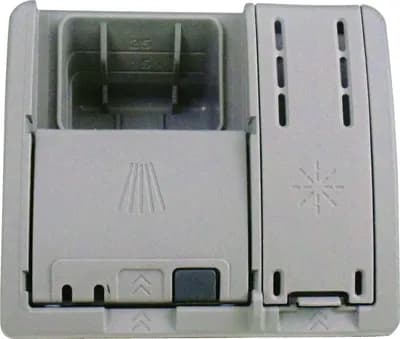

| 0201 |  | Dispenser | - |
| 0202 |  | Sealing | $14.59 Parts Dr |
| 0203 |  | Sensor | $23.02 Part Advantage |
| 0204 |  | Lid | $19.67 Part Advantage |
| 0205 |  | Lid | $17.76 Parts Dr |
| 0210 |  | Door-inner | - |
| 0220 |  | Door sensor | - |
| 0221 |  | Screw | $3.35 Part Advantage |
| 0222 |  | Screw | $9.21 Part Advantage |
| 0223 |  | Screw | $6.70 Part Advantage |
| 0225 |  | Wood Screw | $2.51 Part Advantage |
| 0230 |  | Seal-door | $52.16 Part Advantage |
| 0231 |  | Lock-clamp | $4.45 ApplianceParts Pro |
| 0235 |  | Overflow | - |
| 0236 |  | Overflow | $23.50 ApplianceParts Pro |
| 0240 |  | Hinge | $28.86 Part Advantage |
| 0241 |  | Hinge | $39.76 Part Advantage |
| 0242 |  | Hinge Bushing | $10.88 Part Advantage |
| 0243 |  | Screw | $7.22 RepairClinic |
| 0250 |  | Insulating plate | $6.48 ApplianceParts Pro |
| 0252 |  | Insulating part | - |
| 0260 |  | Door-outer | $58.65 RepairClinic |
| 0261 |  | Strip | - |
| 0262 |  | Strip | - |
| 0263 |  | Screw | $10.00 RepairClinic |

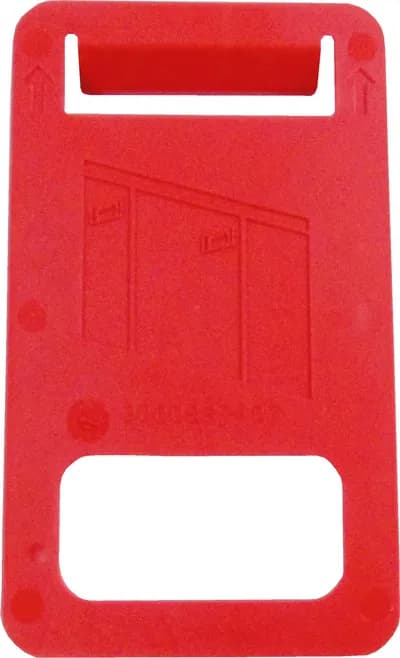

| 0264 |  | Tools | - |
| 0270 |  | Mounting set | $23.39 Parts Dr |
| 0271 |  | Insulating plate | - |
| 8100 |  | Attachment Brackets | $20.57 ApplianceParts Pro |
| 8101 |  | Door Hinge Covers | - |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
