ModelBosch
HBC36D753B/03
6 diagrams55 parts
Parts Sections (6)
Diagram

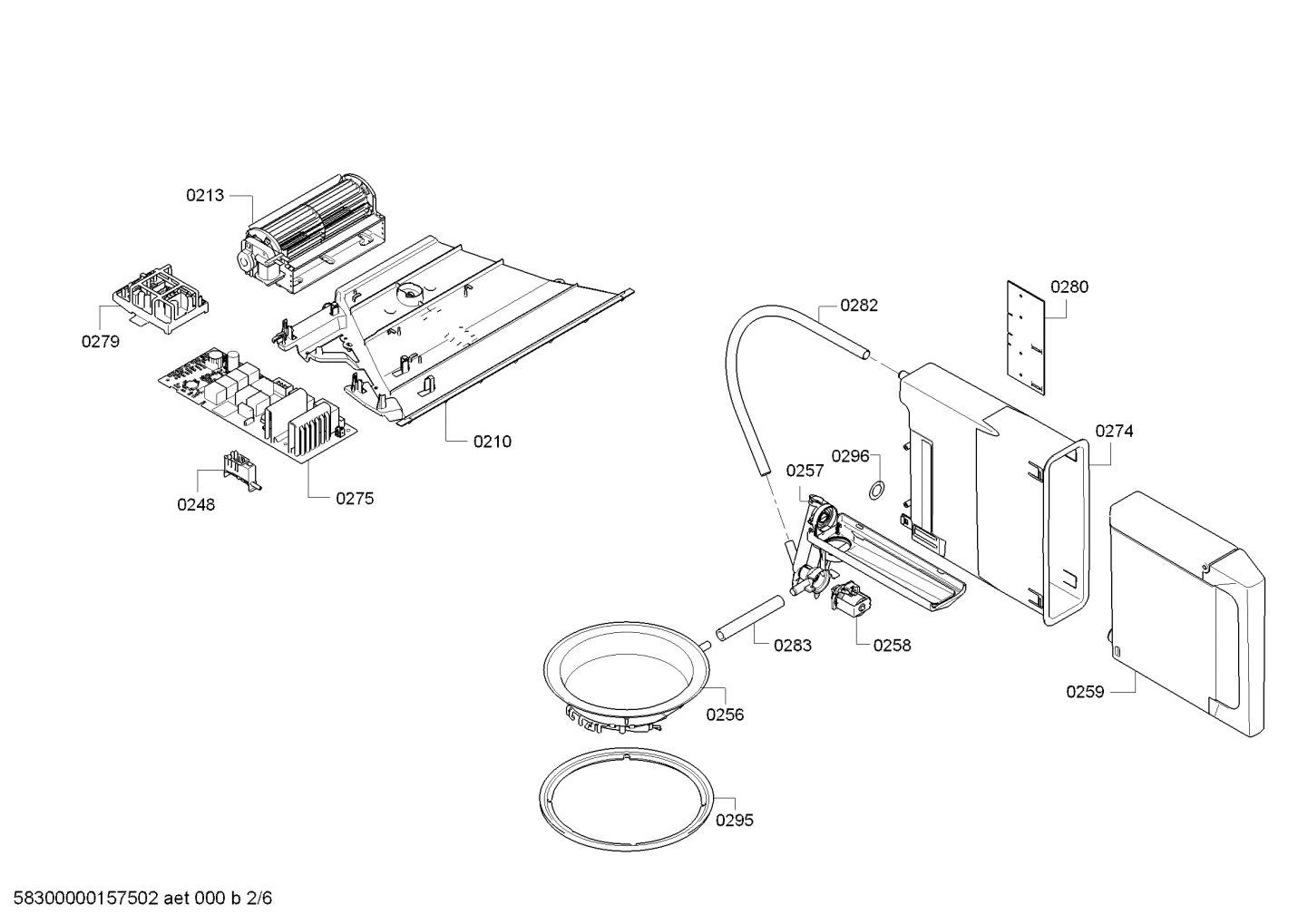

Hoses, Seals & Gaskets (0210-0296)
Parts in Hoses, Seals & Gaskets (0210-0296)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0210 |  | Air channel exhaust | - |
| 0213 |  | Fan drum | - |
| 0248 |  | Switch-door | - |
| 0256 | | Salver | - |
| 0257 |  | Holder | - |
| 0258 |  | Valve-magnet | $136.20 ApplianceParts Pro |
| 0259 |  | Tank | $101.00 Part Advantage |
| 0259 |  | Repair-set | - |
| 0274 |  | Support | $45.43 RepairClinic |
| 0275 |  | Control module | - |
| 0279 |  | PC board assembly-mains power | $142.94 Parts Dr |
| 0280 |  | PC board | $187.50 ApplianceParts Pro |
| 0282 |  | Hose | $34.74 Part Advantage |
| 0283 | | Hose | - |
| 0295 |  | Sealing | $37.54 ApplianceParts Pro |
| 0296 |  | Sealing | $28.81 ApplianceParts Pro |
