Model
Bosch HBE5451UC/02
Wall Oven
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBE5451UC/02Wall Oven
2 diagrams86 parts
Parts Sections (2)
Diagram

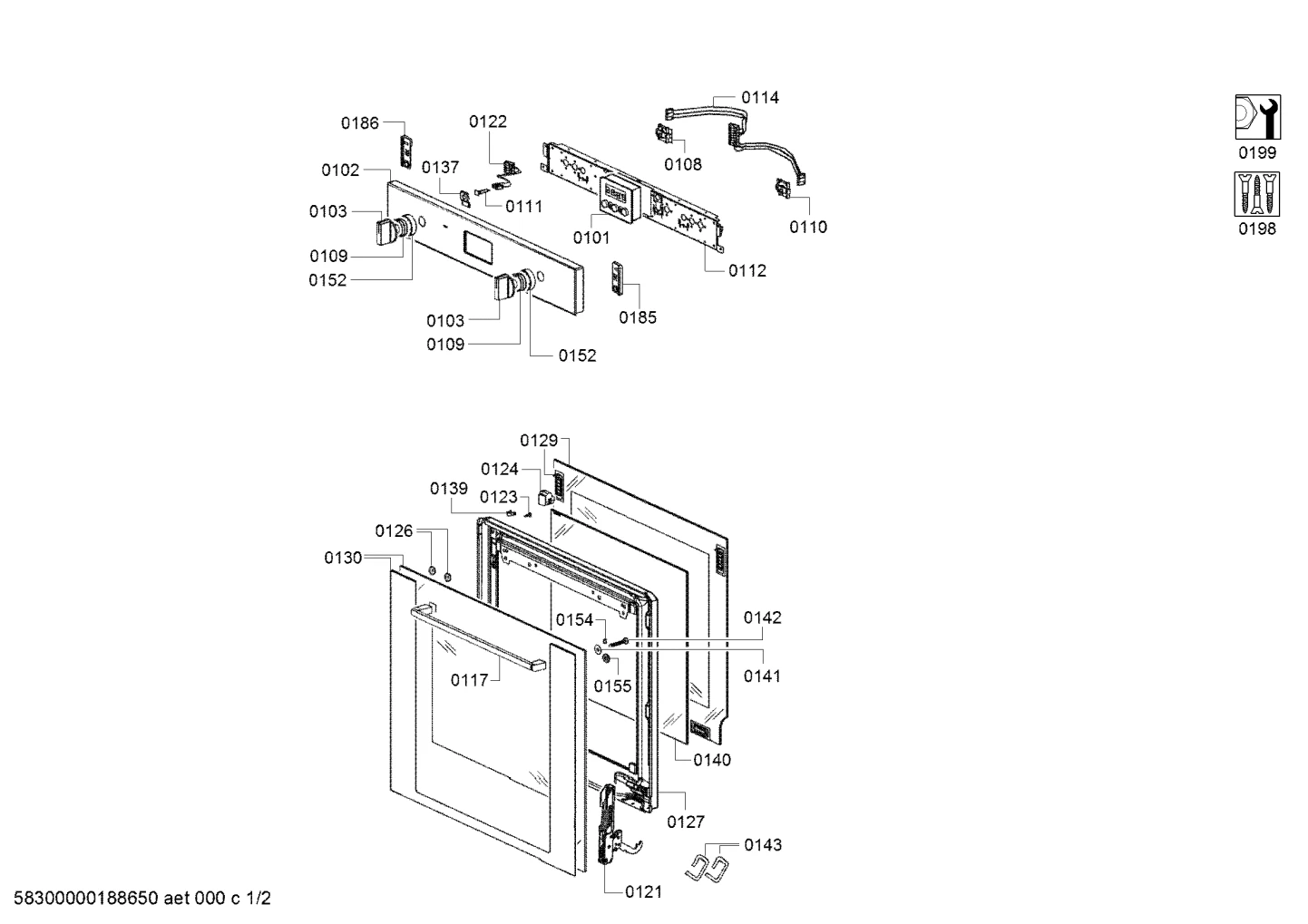

Door & Housing, Handles & Knobs (0101-0199)
Parts in Door & Housing, Handles & Knobs (0101-0199)
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Time selector | $134.99 Parts Dr |
| 0102 |  | Panel-facia | - |
| 0103 |  | Knob-temperature | $19.28 ApplianceParts Pro |
| 0108 |  | Potentiometer | $45.04 ApplianceParts Pro |
| 0109 |  | Spring | $9.45 ApplianceParts Pro |
| 0110 |  | Potentiometer | $22.43 RepairClinic |
| 0111 |  | Lamp | $11.58 ApplianceParts Pro |
| 0112 |  | Support | - |
| 0114 |  | Cable harness | $62.72 ApplianceParts Pro |
| 0117 |  | Handle-door | - |
| 0121 |  | Door hinge | - |
| 0122 |  | Cable | - |
| 0123 |  | Plug | - |
| 0124 |  | Distance holder | - |
| 0126 |  | Washer | $5.02 Part Advantage |
| 0127 |  | Door-inner | $118.52 PartSelect |
| 0129 |  | Inner glass | - |
| 0130 |  | Glass front panel | - |
| 0137 |  | Holder | - |
| 0139 |  | Spacer | $11.44 Parts Dr |
| 0140 |  | Glass panel | - |
| 0141 |  | Bushing | - |
| 0142 |  | Screw | - |
| 0143 |  | Hook | $16.62 Parts Dr |
| 0152 |  | Collar | $33.75 PartSelect |
| 0154 |  | Washer | - |
| 0155 |  | Washer | - |
| 0185 |  | Support | $8.95 ApplianceParts Pro |
| 0186 |  | Support | - |
| 0198 |  | Screw | - |
| 0199 |  | Washer | - |
