Model
Bosch HBE5452UC/41
Wall Oven
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBE5452UC/41Wall Oven
7 diagrams92 parts
Parts Sections (7)
Diagram

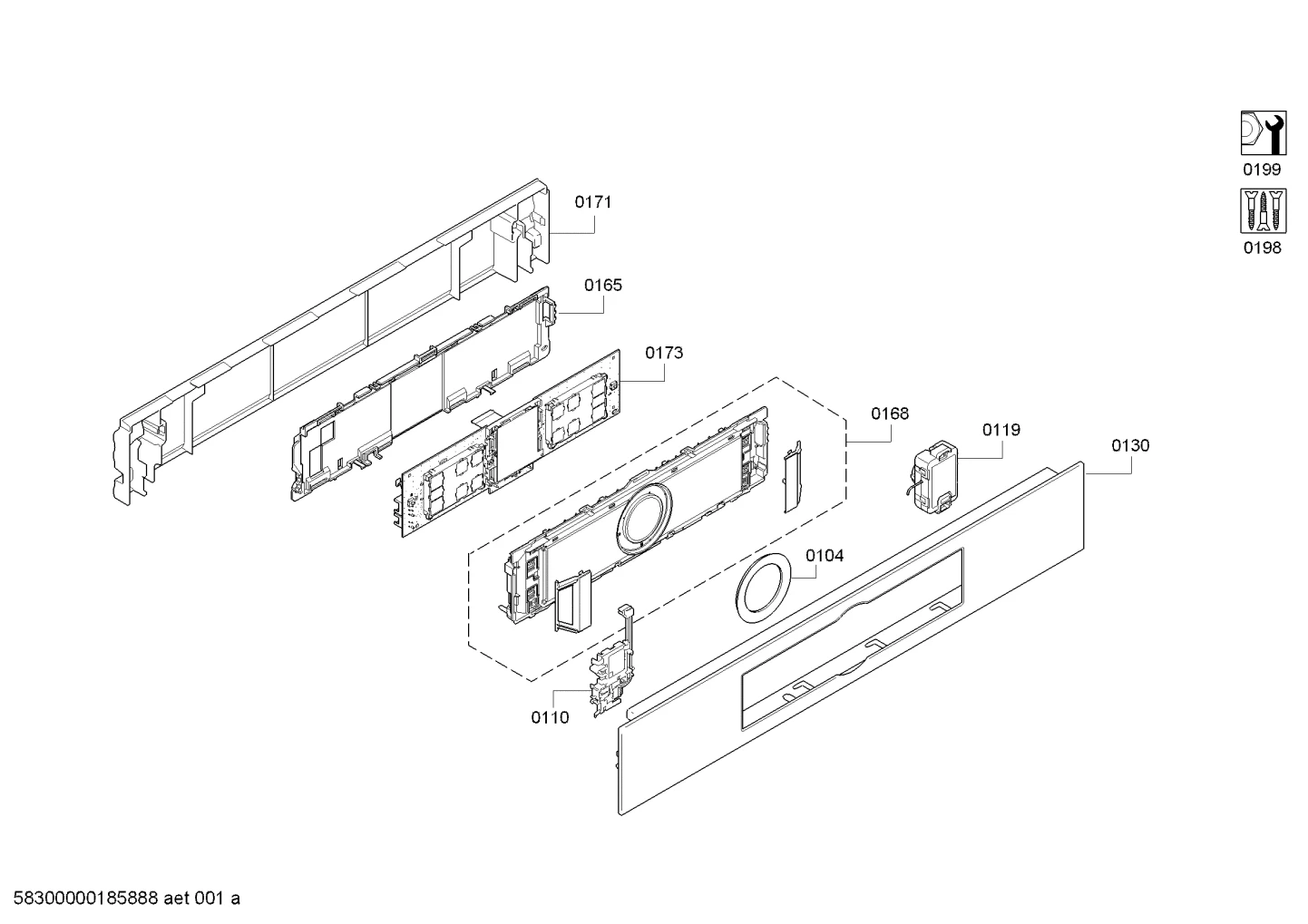

Screws, Door & Housing (0104-0199)
Parts in Screws, Door & Housing (0104-0199)
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0104 |  | Ring | $40.87 ApplianceParts Pro |
| 0110 |  | Connectivity module | - |
| 0119 |  | Loudspeaker | $51.77 Parts Dr |
| 0130 |  | Panel-facia | - |
| 0165 |  | Lid | - |
| 0168 |  | Housing | - |
| 0171 |  | Cover | - |
| 0173 | – | 11064284 Operating module not programmed | - |
| 0173 |  | Operating module programmed | - |
| 0198 |  | Washer | - |
| 0198 | | Screw | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw | $7.95 ApplianceParts Pro |
| 0198 |  | Screw | - |
| 0199 |  | Clip | - |
| 0199 |  | Sealing strip | $19.48 Parts Dr |
| 0199 |  | Fan blade | - |
