Model
Bosch HBE5453UC/03
Wall Oven
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBE5453UC/03Wall Oven
2 diagrams89 parts
Parts Sections (2)
Diagram

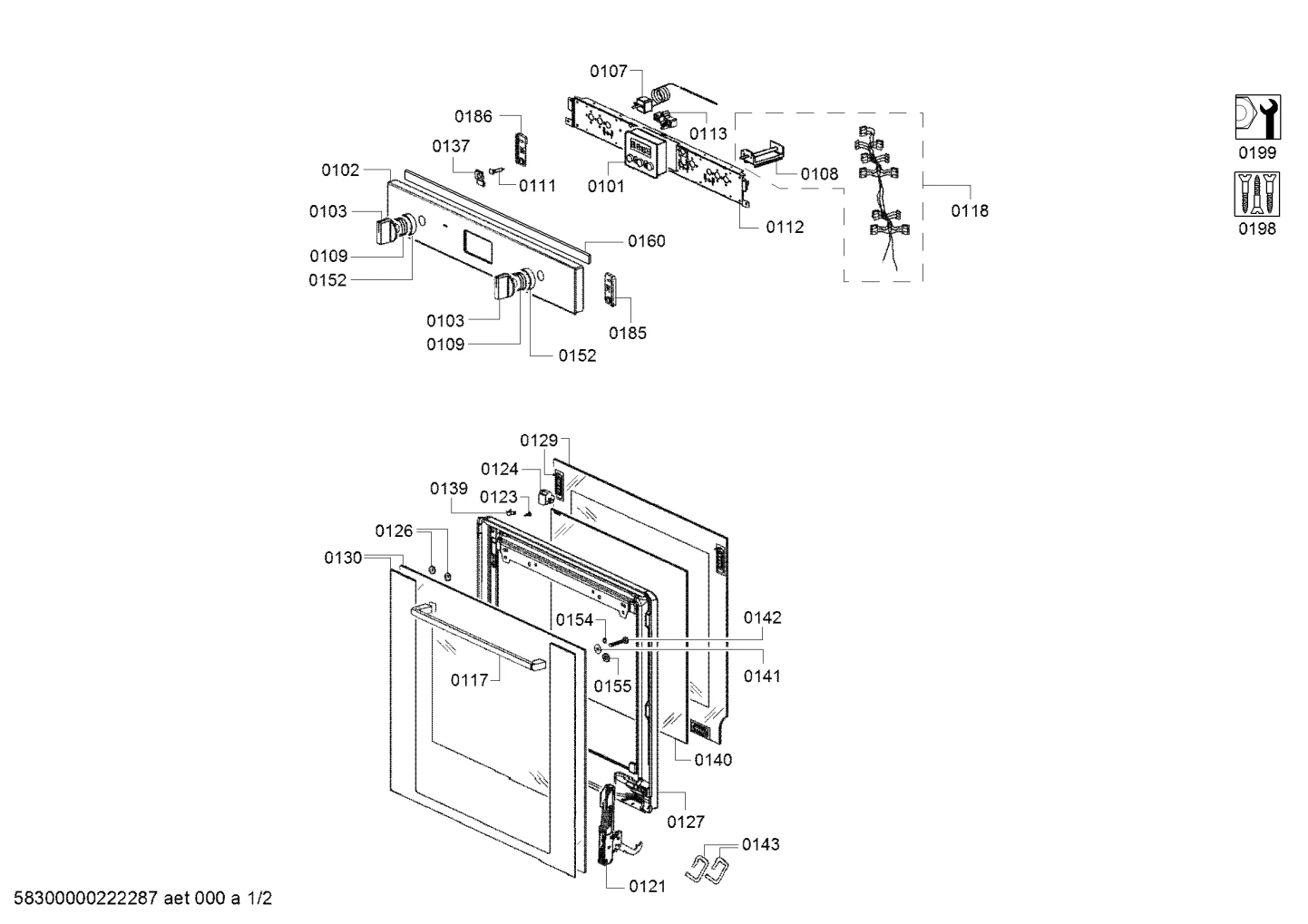

Door & Housing, Flaps & Holders (0101-0199)
Parts in Door & Housing, Flaps & Holders (0101-0199)
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

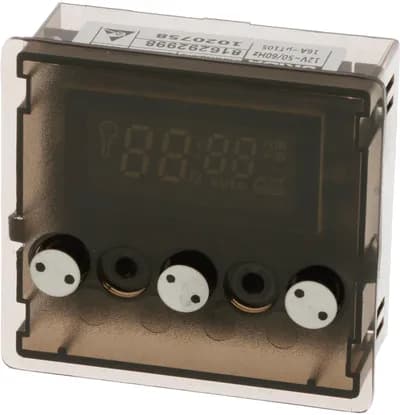

| 0101 |  | Time selector | - |
| 0102 |  | Panel-facia | - |
| 0103 |  | Knob-temperature | $19.28 ApplianceParts Pro |
| 0107 |  | Regulator-temperature | $65.39 ApplianceParts Pro |
| 0107 |  | Regulator-temperature | $123.85 ApplianceParts Pro |
| 0108 |  | Switch-selector | - |
| 0109 |  | Spring | $9.45 ApplianceParts Pro |
| 0111 |  | Lamp | - |
| 0112 |  | Support | - |
| 0113 |  | Distance holder | - |
| 0117 |  | Handle-door | - |

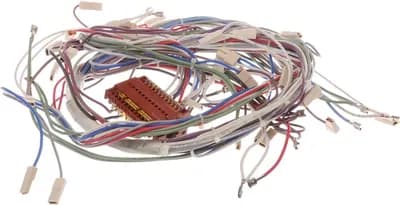

| 0118 |  | Potentiometer | - |
| 0121 |  | Door hinge | - |
| 0123 |  | Plug | - |
| 0124 |  | Distance holder | - |
| 0126 |  | Washer | $5.02 Part Advantage |
| 0127 |  | Door-inner | $118.52 PartSelect |
| 0129 |  | Inner glass | - |
| 0130 |  | Glass front panel | - |
| 0137 |  | Holder | - |
| 0139 |  | Spacer | $11.44 Parts Dr |
| 0140 |  | Glass panel | - |
| 0141 |  | Bushing | - |
| 0142 |  | Screw | - |
| 0143 |  | Hook | $16.62 Parts Dr |
| 0152 |  | Collar | $33.75 PartSelect |
| 0154 |  | Washer | - |
| 0155 |  | Washer | - |
| 0160 |  | Sealing | - |
| 0185 |  | Support | $8.95 ApplianceParts Pro |
| 0186 |  | Support | - |
| 0199 |  | Washer | - |
