Model
Bosch HBL435AUC(00)
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBL435AUC(00)Wall Oven
1 diagram129 parts
Parts Sections (1)
Diagram

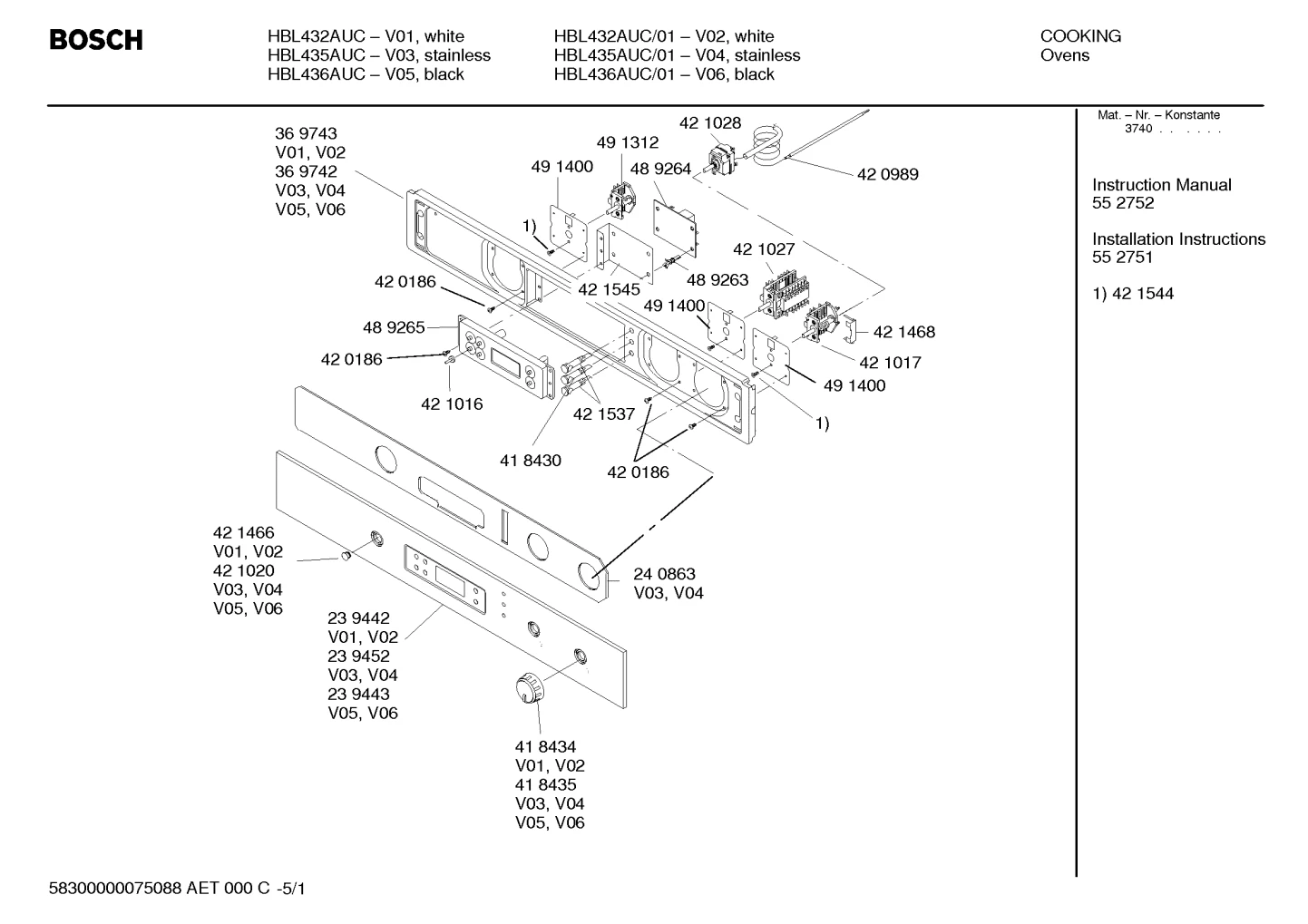

Screws, Lighting (0001-0147)
Parts in Screws, Lighting (0001-0147)
145 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Hose | - |
| 0002 | | 00421028NLA Thermometer | Discontinued |
| 0003 | | Time switch | - |
| 0004 | | Bracket | - |
| 0005 | | Screw | - |
| 0006 | | 00489264NLA Relay | Discontinued |
| 0007 | | Spacer | - |
| 0008 | | 00421545NLA Bracket | Discontinued |
| 0009 | | Switch-selector | - |
| 0010 | | 00421468NLA Clip | Discontinued |
| 0011 | | Switch | - |
| 0012 | | Frame | - |
| 0013 | | 00420186NLA Screw | Discontinued |
| 0014 | | 00489265NLA Time switch | Discontinued |
| 0015 |  | Pin | - |
| 0016 | | Lamp | - |
| 0017 | | Lamp | - |
| 0018 | | 00239452NLA Glass panel | Discontinued |
| 0019 | | 00418435NLA Knob | Discontinued |
| 0020 |  | 00421020NLA Push button cap | Discontinued |
| 0021 | | Motor | - |
| 0022 | | Screw | $2.06 RepairClinic |
| 0023 | | Screw | - |
| 0024 | | Housing | - |
| 0025 | | Retaining washer | - |
| 0026 | | Nut | - |
| 0027 | | 00420233NLA Plate | Discontinued |
| 0028 | | Switch | - |
| 0029 | | Retaining washer | - |
| 0030 | | Nut | - |
| 0031 | | 00420234NLA Spring | Discontinued |
| 0032 | | 00490368NLA Latch | Discontinued |
| 0033 | | Guide | - |
| 0034 | | 00420235NLA Temperature sensor | Discontinued |
| 0035 | | Screw | - |
| 0036 | | Bracket | - |
| 0037 | | Support | - |
| 0038 | | Temperature sensor | - |
| 0039 | | 00420238NLA Resistor | Discontinued |
| 0040 | | Support | - |
| 0041 | | 00490986NLA Temperature sensor | Discontinued |
| 0042 | | 00420192NLA Screw | Discontinued |
| 0043 | | Dividing wall | - |
| 0044 | | 00434064NLA Sheet | Discontinued |
| 0045 |  | Fan | - |
| 0046 | | Nut | - |
| 0047 | | Retaining washer | - |
| 0048 | | Pin | - |
| 0049 | | 00434068NLA Ventilation duct | Discontinued |
| 0050 | | Screw | - |
| 0051 | | 00491310NLA Terminal | Discontinued |
| 0052 | | Spacer | - |
| 0053 | | 00491311NLA Thermometer | Discontinued |
| 0054 | | 00420186NLA Screw | Discontinued |
| 0055 | | Screw | - |
| 0056 | | Clip | - |
| 0057 | | 00420194NLA Retaining washer | Discontinued |
| 0058 | | Nut | - |
| 0059 | | 00418461NLA Transformer | Discontinued |
| 0060 | | Support | - |
| 0061 | | Dividing wall | - |
| 0062 | | 00434052NLA Panel | Discontinued |
| 0063 | | 00239468NLA Oven cavity | Discontinued |
| 0064 | | Screw | - |
| 0065 | | 00418415NLA Cover | Discontinued |
| 0066 | | 00420227NLA Lamp housing | Discontinued |
| 0067 |  | Halogen Lamp | $12.21 Part Advantage |
| 0068 | | 00434075NLA Reflector | Discontinued |
| 0069 | | Spring | - |
| 0070 | | Clip | - |
| 0071 | | 00424151NLA Clamp | Discontinued |
| 0072 | | Heating element | - |
| 0073 | | 00420225NLA Sealing | Discontinued |
| 0074 | | 00239408NLA Cover | Discontinued |
| 0075 | | 00420226NLA Screw | Discontinued |
| 0076 | | 00420229NLA Bracket | Discontinued |
| 0077 | | Strip-decor | - |
| 0078 | | 00420230NLA Screw | Discontinued |
| 0079 | | Tray | - |
| 0080 | | Heater-bottom | - |
| 0081 | | Cable harness | - |
| 0082 | | Hose-vent | - |
| 0083 | | Sleeve | - |
| 0084 | | Connection piece | - |
| 0085 | | 00240449NLA Case-upper part | Discontinued |
| 0086 | | 00420186NLA Screw | Discontinued |
| 0087 | | 00434051NLA Strip | Discontinued |
| 0088 | | Strip-decor | - |
| 0089 | | Nut | - |
| 0090 | | Retaining washer | - |
| 0091 | | Housing part | - |
| 0092 | | Switch-door | - |
| 0093 | | Screw | - |
| 0094 | | 00421630NLA Insulating part | Discontinued |
| 0095 | | 00421013NLA Door hinge | Discontinued |
| 0096 | | Door hinge | - |
| 0097 | | Support | - |
| 0098 | | Screw | - |
| 0099 | | 00420192NLA Screw | Discontinued |
| 0100 | | Case-rear part | - |
| 0101 | | 00434052NLA Panel | Discontinued |
| 0102 | | Insulating part | - |
| 0103 | | 00490347NLA Insulating part | Discontinued |
| 0104 | | Cover | - |
| 0105 | | Catalyzer | - |
| 0106 | | Insulating part | - |
| 0107 | | Insulating part | - |
| 0108 | | Spare part | - |
| 0109 | | 00420194NLA Retaining washer | Discontinued |
| 0110 | | 00420195NLA Nut | Discontinued |
| 0111 | | 00239468NLA Oven cavity | Discontinued |
| 0112 | | Frame | - |
| 0113 | | 00470692NLA Seal-door | Discontinued |
| 0114 | | Case-bottom | - |
| 0115 | | 00470697NLA Grill grid | Discontinued |
| 0116 | | Case-bottom | - |
| 0118 | | Handle | - |
| 0119 | | Spare part | - |
| 0120 |  | 00493360NLA Door hinge | Discontinued |
| 0121 | | 00435635NLA Support | Discontinued |
| 0122 | | 00238954NLA Door-inner | Discontinued |
| 0123 | | Screw | $2.06 RepairClinic |
| 0124 | | Pin | - |
| 0125 | | Washer | - |
| 0126 | | Nut | - |
| 0127 | | Screw | - |
| 0128 | | Screw | - |
| 0129 | | 00489270NLA Hinge | Discontinued |
| 0130 | | Seal | - |
| 0131 | | 00240458NLA Glass panel | Discontinued |
| 0132 | | 00470712NLA Spacer | Discontinued |
| 0133 | | Reflector | - |
| 0134 | | 00434078NLA Insulating part | Discontinued |
| 0135 | | 00420194NLA Retaining washer | Discontinued |
| 0136 | | 00420186NLA Screw | Discontinued |
| 0137 | | 00420255NLA Clip | Discontinued |
| 0138 | | 00239459NLA Glass panel | Discontinued |
| 0139 | | Screw | - |
| 0140 | | Retaining plate | - |
| 0141 | | 00418424NLA Spacer | Discontinued |
| 0142 | | Handle-door | - |
| 0143 | | Instruction manual | - |
| 0144 | | 00552751NLA Installation instructions | Discontinued |
| 0145 | | Screw | - |
| 0147 | | Strip-decor | - |
