Model
Bosch HBL456AUC/01
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBL456AUC/01Wall Oven
1 diagram152 parts
Parts Sections (1)
Diagram

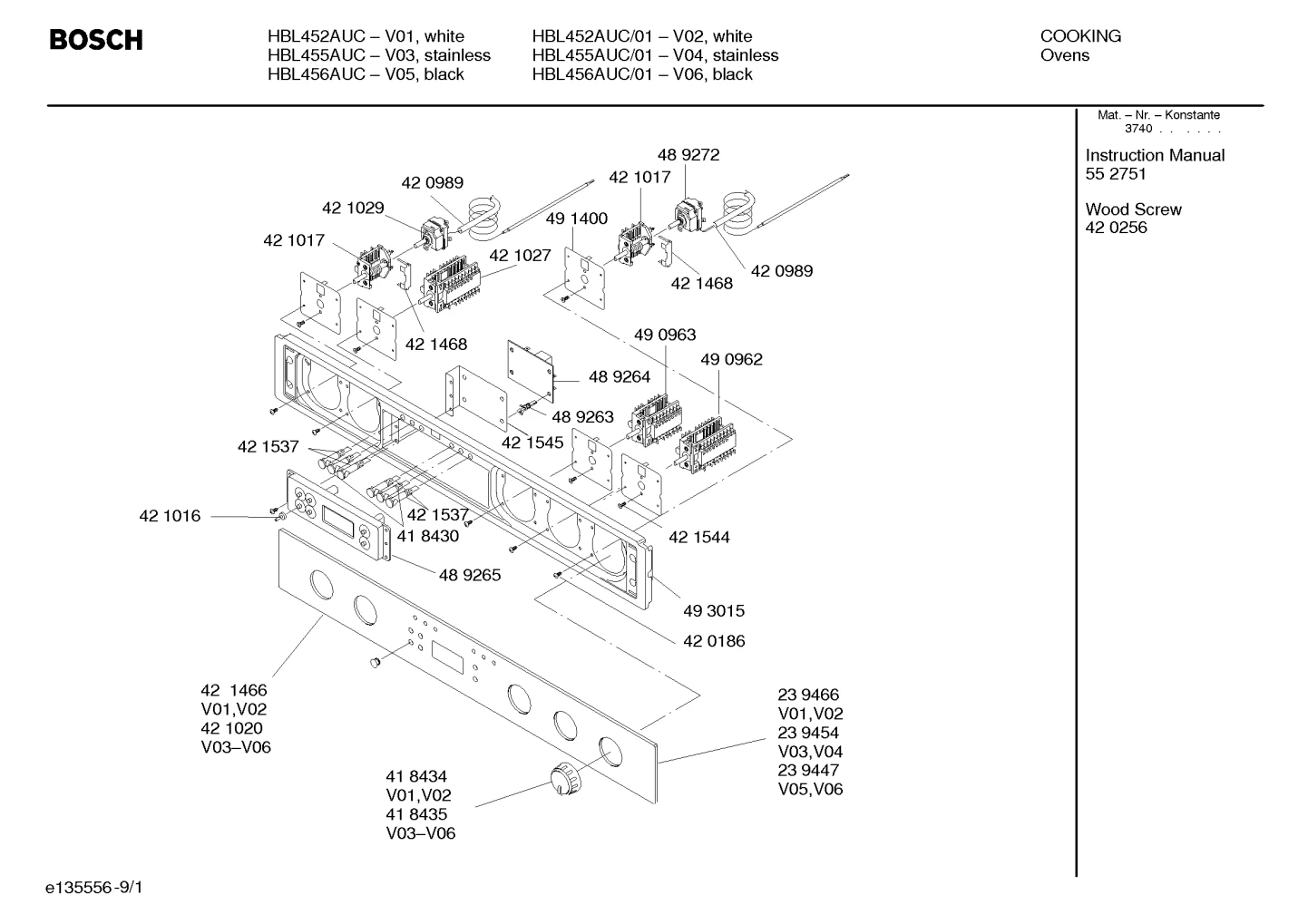

Screws, Hinges (0101-0723)
Parts in Screws, Hinges (0101-0723)
234 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hose-vent | - |
| 0102 | | Sleeve | - |
| 0104 | | Connection piece | - |
| 0106 | | 00240449NLA Case-upper part | Discontinued |
| 0107 | | 00420186NLA Screw | Discontinued |
| 0108 | | 00434051NLA Strip | Discontinued |
| 0109 | | Spacer | - |
| 0110 | | Nut | - |
| 0111 | | Retaining washer | - |
| 0112 | | Switch | - |
| 0113 | | Switch-door | - |
| 0114 | | Screw | - |
| 0115 | | Insulating part | - |
| 0116 | | Door hinge | - |
| 0117 | | Door hinge | - |
| 0118 | | Support | - |
| 0119 | | Screw | - |
| 0121 | | 00420192NLA Screw | Discontinued |
| 0122 | | Case-rear part | - |
| 0123 | | 00434052NLA Panel | Discontinued |
| 0124 | | Insulating part | - |
| 0125 | | 00490347NLA Insulating part | Discontinued |
| 0126 | | Cover | - |
| 0127 | | Catalyzer | - |
| 0128 | | Insulating part | - |
| 0130 | | Insulating part | - |
| 0131 | | Panel side | - |
| 0132 | | 00420194NLA Retaining washer | Discontinued |
| 0133 | | 00420195NLA Nut | Discontinued |
| 0134 | | 00239469NLA Spare part | Discontinued |
| 0135 | | Frame | - |
| 0136 | | 00470692NLA Seal-door | Discontinued |
| 0137 | | Strip-decor | - |
| 0138 | | 00470697NLA Grill grid | Discontinued |
| 0139 | | Case-bottom | - |
| 0140 | | 00239468NLA Oven cavity | Discontinued |
| 0141 | | Panel side | - |
| 0142 | | Door hinge | - |
| 0143 | | Door hinge | - |
| 0144 | | Support | - |
| 0201 | | 00239469NLA Spare part | Discontinued |
| 0202 | | Case-bottom | - |
| 0203 | | Strip-decor | - |
| 0204 | | Cover | - |
| 0205 | | 00493016NLA Distance holder | Discontinued |
| 0206 | | Panel side | - |
| 0207 | | Support | - |
| 0208 | | Nut | - |
| 0209 | | Retaining washer | - |
| 0210 | | Housing part | - |
| 0211 | | Switch-door | - |
| 0212 | | Screw | - |
| 0213 | | 00421630NLA Insulating part | Discontinued |
| 0214 | | 00420186NLA Screw | Discontinued |
| 0215 | | 00421013NLA Door hinge | Discontinued |
| 0216 | | Door hinge | - |
| 0217 | | Screw | - |
| 0218 | | 00420192NLA Screw | Discontinued |
| 0220 | | Case-rear part | - |
| 0221 | | 00434052NLA Panel | Discontinued |
| 0222 | | Insulating part | - |
| 0223 | | 00490347NLA Insulating part | Discontinued |
| 0224 | | Cover | - |
| 0225 | | Catalyzer | - |
| 0226 | | Insulating part | - |
| 0228 | | Insulating part | - |
| 0229 | | 00434051NLA Strip | Discontinued |
| 0230 | | Spacer | - |
| 0231 | | 00239468NLA Oven cavity | Discontinued |
| 0232 | | 00420194NLA Retaining washer | Discontinued |
| 0233 | | 00420195NLA Nut | Discontinued |
| 0234 | | Frame | - |
| 0235 | | 00470692NLA Seal-door | Discontinued |
| 0236 | | Strip-decor | - |
| 0237 | | Case-bottom | - |
| 0238 | | 00470697NLA Grill grid | Discontinued |
| 0239 | | Panel side | - |
| 0240 | | Support | - |
| 0241 |  | 00493360NLA Door hinge | Discontinued |
| 0301 | | 00434064NLA Sheet | Discontinued |
| 0302 |  | Fan | - |
| 0303 | | Nut | - |
| 0304 | | Retaining washer | - |
| 0305 | | Pin | - |
| 0306 | | 00434068NLA Ventilation duct | Discontinued |
| 0307 | | Screw | - |
| 0308 | | 00491310NLA Terminal | Discontinued |
| 0309 | | Spacer | - |
| 0310 | | Insulating part | - |
| 0311 | | Thermometer | - |
| 0312 | | 00420186NLA Screw | Discontinued |
| 0313 | | Screw | - |
| 0314 | | Clip | - |
| 0315 | | 00420194NLA Retaining washer | Discontinued |
| 0316 | | Nut | - |
| 0317 | | 00418461NLA Transformer | Discontinued |
| 0318 | | Support | - |
| 0319 | | Dividing wall | - |
| 0320 |  | Fan motor | - |
| 0321 | | Fan | - |
| 0322 | | Screw | - |
| 0323 | | Support | - |
| 0324 | | Screw | - |
| 0325 | | 00434052NLA Panel | Discontinued |
| 0327 | | 00239469NLA Spare part | Discontinued |
| 0328 | | Ventilation duct | - |
| 0329 | | 00420222NLA Seal | Discontinued |
| 0330 | | Clamp | - |
| 0331 | | Screw | - |
| 0332 |  | Heating element | $104.26 Part Advantage |
| 0333 | | 00418415NLA Cover | Discontinued |
| 0334 | | 00420227NLA Lamp housing | Discontinued |
| 0335 |  | Halogen Lamp | $12.21 Part Advantage |
| 0336 | | 00434075NLA Reflector | Discontinued |
| 0337 | | Spring | - |
| 0338 | | Clip | - |
| 0339 | | 00420223NLA Clip | Discontinued |
| 0340 | | Heating element | - |
| 0341 | | 00420225NLA Sealing | Discontinued |
| 0342 | | 00239408NLA Cover | Discontinued |
| 0343 | | 00420226NLA Screw | Discontinued |
| 0344 | | 00420229NLA Bracket | Discontinued |
| 0345 | | Strip-decor | - |
| 0346 | | 00420230NLA Screw | Discontinued |
| 0347 | | Tray | - |
| 0348 | | Heater-bottom | - |
| 0349 | | Cable harness | - |
| 0401 | | 00434064NLA Sheet | Discontinued |
| 0402 | | Fan | - |
| 0403 | | Nut | - |
| 0404 | | Retaining washer | - |
| 0405 | | Pin | - |
| 0406 | | 00434068NLA Ventilation duct | Discontinued |
| 0407 | | Screw | - |
| 0408 | | 00491420NLA Terminal | Discontinued |
| 0409 | | Spacer | - |
| 0410 | | 00491311NLA Thermometer | Discontinued |
| 0411 | | 00420186NLA Screw | Discontinued |
| 0412 | | Screw | - |
| 0413 | | Clip | - |
| 0414 | | 00420194NLA Retaining washer | Discontinued |
| 0415 | | Nut | - |
| 0416 | | 00418461NLA Transformer | Discontinued |
| 0417 | | Support | - |
| 0418 | | Dividing wall | - |
| 0419 | | 00434052NLA Panel | Discontinued |
| 0421 | | 00239468NLA Oven cavity | Discontinued |
| 0422 | | Screw | - |
| 0423 | | 00418415NLA Cover | Discontinued |
| 0424 | | 00420227NLA Lamp housing | Discontinued |
| 0425 | | Halogen Lamp | $12.21 Part Advantage |
| 0426 | | 00434075NLA Reflector | Discontinued |
| 0427 | | Spring | - |
| 0428 | | Clip | - |
| 0429 | | 00420223NLA Clip | Discontinued |
| 0430 | | Heating element | - |
| 0431 | | 00420225NLA Sealing | Discontinued |
| 0432 | | 00239408NLA Cover | Discontinued |
| 0433 | | 00420226NLA Screw | Discontinued |
| 0434 | | 00420229NLA Bracket | Discontinued |
| 0435 | | Strip-decor | - |
| 0436 | | 00420230NLA Screw | Discontinued |
| 0437 | | Tray | - |
| 0438 | | Heater-bottom | - |
| 0439 | | Cable harness | - |
| 0501 | | Motor | - |
| 0502 | | Screw | $2.06 RepairClinic |
| 0503 | | Screw | - |
| 0504 | | Housing | - |
| 0505 | | Retaining washer | - |
| 0506 | | Nut | - |
| 0507 | | 00420186NLA Screw | Discontinued |
| 0508 | | 00420233NLA Plate | Discontinued |
| 0509 | | Switch | - |
| 0510 | | Retaining washer | - |
| 0511 | | Nut | - |
| 0512 | | 00420234NLA Spring | Discontinued |
| 0513 | | 00490368NLA Latch | Discontinued |
| 0514 | | Guide | - |
| 0515 | | 00420235NLA Temperature sensor | Discontinued |
| 0516 | | Screw | - |
| 0517 | | Bracket | - |
| 0518 | | Support | - |
| 0519 | | Temperature sensor | - |
| 0520 | | 00420238NLA Resistor | Discontinued |
| 0521 | | Support | - |
| 0522 | | 00490986NLA Temperature sensor | Discontinued |
| 0523 | | 00420192NLA Screw | Discontinued |
| 0524 | | Dividing wall | - |
| 0601 | | Hose | - |
| 0602 | | 00421029NLA Thermometer | Discontinued |
| 0603 | | Switch | - |
| 0604 | | 00421468NLA Clip | Discontinued |
| 0605 | | Bracket | - |
| 0606 | | Screw | - |
| 0607 | | 00420186NLA Screw | Discontinued |
| 0608 | | Switch-selector | - |
| 0609 | | Temperature sensor | - |
| 0610 | | 00489264NLA Relay | Discontinued |
| 0611 | | Spacer | - |
| 0612 | | 00421545NLA Bracket | Discontinued |
| 0613 | | 00490963NLA Switch-selector | Discontinued |
| 0614 |  | Switch-selector | - |
| 0615 | | 00493015NLA Frame | Discontinued |
| 0616 |  | Pin | - |
| 0617 | | 00489265NLA Time switch | Discontinued |
| 0618 | | Lamp | - |
| 0619 | | Lamp | - |
| 0620 | | Push button cap | - |
| 0621 | | Glass panel | - |
| 0622 | | 00418434NLA Knob | Discontinued |
| 0701 | | 00238954NLA Door-inner | Discontinued |
| 0702 | | Screw | $2.06 RepairClinic |
| 0703 | | Pin | - |
| 0704 | | Washer | - |
| 0705 | | Nut | - |
| 0706 | | Screw | - |
| 0707 | | Screw | - |
| 0708 | | 00489270NLA Hinge | Discontinued |
| 0709 | | Seal | - |
| 0710 | | 00240458NLA Glass panel | Discontinued |
| 0711 | | 00470712NLA Spacer | Discontinued |
| 0712 | | Reflector | - |
| 0713 | | 00434078NLA Insulating part | Discontinued |
| 0714 | | 00420194NLA Retaining washer | Discontinued |
| 0715 | | 00420186NLA Screw | Discontinued |
| 0716 | | 00420255NLA Clip | Discontinued |
| 0717 | | Door | - |
| 0718 | | Screw | - |
| 0719 | | Retaining plate | - |
| 0720 |  | Spacer | $100.28 ApplianceParts Pro |
| 0721 | | Handle-door | - |
| 0722 | | 00552751NLA Installation instructions | Discontinued |
| 0723 | | 00420256NLA Screw | Discontinued |
