Model
Bosch HBL5451UC/07
Wall Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBL5451UC/07Wall Oven
6 diagrams77 parts
Parts Sections (6)
Diagram

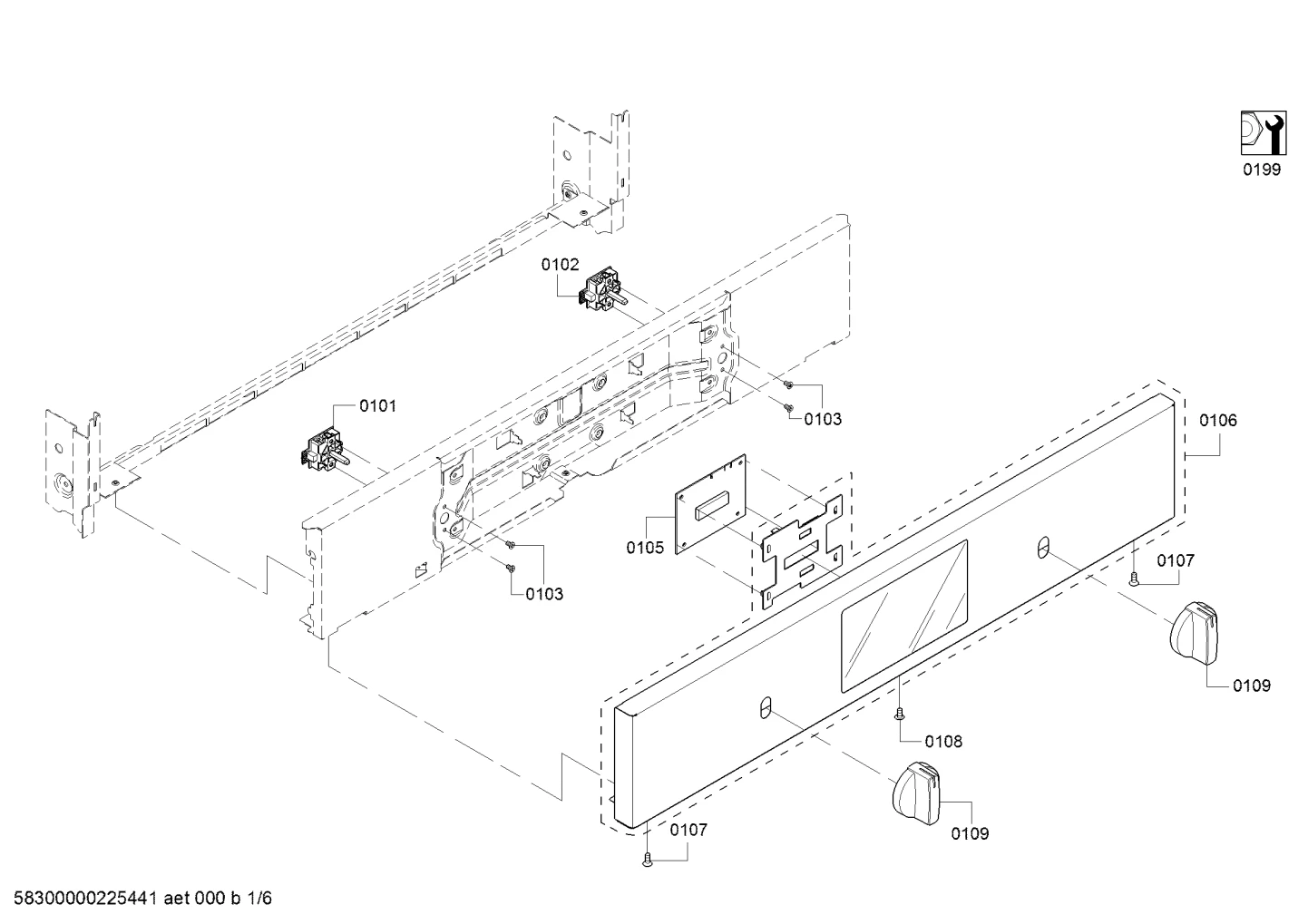

Screws, Switches (0101-0199)
Parts in Screws, Switches (0101-0199)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Switch | $42.40 Parts Dr |
| 0102 |  | Switch | $38.38 Parts Dr |
| 0103 |  | Screw | $26.88 PartSelect |
| 0105 |  | Display | $107.51 Part Advantage |
| 0106 |  | Panel-facia | $254.27 ApplianceParts Pro |
| 0107 |  | Screw | $18.43 ApplianceParts Pro |
| 0108 |  | Screw | $23.02 Part Advantage |
| 0109 |  | Knob-oven | $29.90 RepairClinic |
| 0150 |  | Mounting bracket | $27.56 ApplianceParts Pro |
| 0199 |  | Part not included in this appliance | - |
