Model
Bosch HBL765AUC(00)
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBL765AUC(00)Wall Oven
1 diagram143 parts
Parts Sections (1)
Diagram

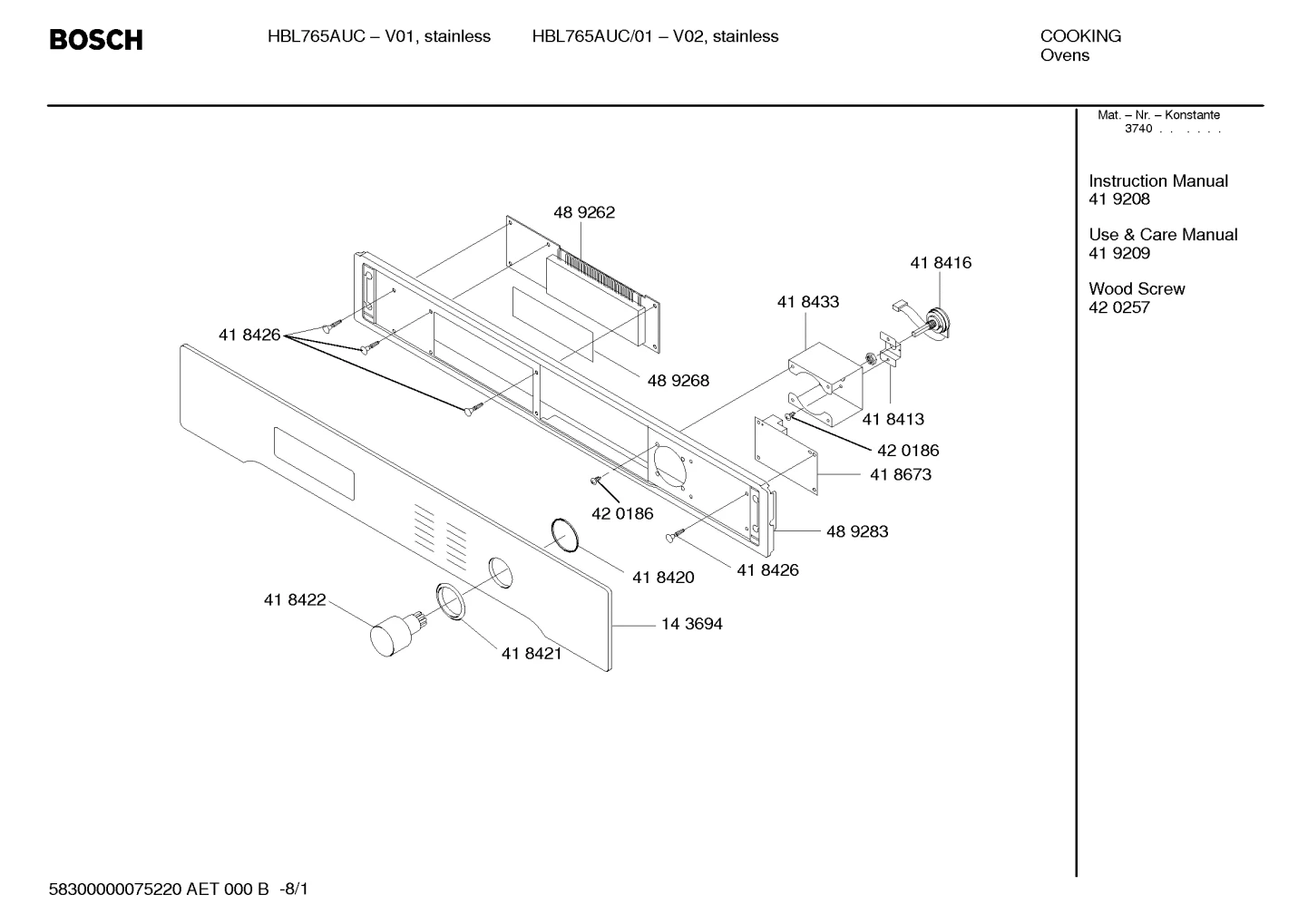

Screws, Hinges (0101-0904)
Parts in Screws, Hinges (0101-0904)
247 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Switch-selector | - |
| 0102 | | Bracket | - |
| 0104 | | Bracket | - |
| 0105 | | 00420186NLA Screw | Discontinued |
| 0106 | | Relay | - |
| 0107 | | Display module | - |
| 0108 | | Display-film strip | - |
| 0109 | | Support | - |
| 0110 | | Spacer | - |
| 0112 | | Ring | - |
| 0113 | | 00143694NLA Panel-facia | Discontinued |
| 0114 | | 00418421NLA Ring | Discontinued |
| 0115 |  | Knob | $30.71 PartSelect |
| 0201 | | Connection piece | - |
| 0202 | | Hose-vent | - |
| 0203 | | 00240449NLA Case-upper part | Discontinued |
| 0204 | | Sleeve | - |
| 0205 | | 00434051NLA Strip | Discontinued |
| 0206 | | Spacer | - |
| 0207 | | 00490347NLA Insulating part | Discontinued |
| 0208 | | Case-rear part | - |
| 0209 | | 00420192NLA Screw | Discontinued |
| 0210 | | 00418428NLA Switch | Discontinued |
| 0211 | | 00418428NLA Switch | Discontinued |
| 0212 | | Support | - |
| 0213 | | Insulating part | - |

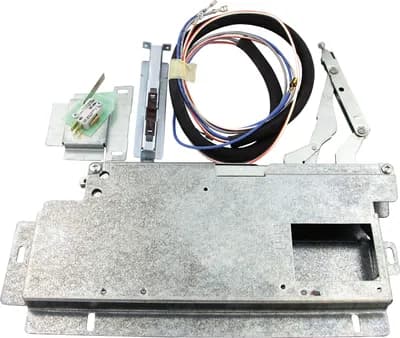

| 0214 |  | 00493358NLA Door hinge | Discontinued |
| 0215 | | 00493358NLA Door hinge | Discontinued |
| 0216 | | Support | - |
| 0217 | | 00470692NLA Seal-door | Discontinued |
| 0219 | | Frame | - |
| 0220 | | Case-bottom | - |
| 0221 | | Strip-decor | - |
| 0222 |  | 00493360NLA Door hinge | Discontinued |
| 0223 | | 00493358NLA Door hinge | Discontinued |
| 0224 | | Support | - |
| 0225 | | 00420186NLA Screw | Discontinued |
| 0226 | | Screw | - |
| 0227 | | 00434052NLA Panel | Discontinued |
| 0228 | | Insulating part | - |
| 0229 | | Cover | - |
| 0230 | | Catalyzer | - |
| 0231 | | Insulating part | - |
| 0232 | | Insulating part | - |
| 0233 | | Pin | - |
| 0234 | | 00420194NLA Retaining washer | Discontinued |
| 0235 | | 00420195NLA Nut | Discontinued |
| 0236 | | 00418440NLA Pin | Discontinued |
| 0301 | | Washer | - |
| 0302 | | Relay | - |
| 0303 | | 00434064NLA Sheet | Discontinued |
| 0304 | | Spacer | - |
| 0305 |  | Fan | - |
| 0306 | | 00418431NLA Frequency filter | Discontinued |
| 0307 | | 00434068NLA Ventilation duct | Discontinued |
| 0308 | | Nut | - |
| 0309 | | Retaining washer | - |
| 0310 | | Terminal box | - |
| 0311 | | Screw | - |
| 0312 | | 00418461NLA Transformer | Discontinued |
| 0313 | | 00489293NLA Cable harness | Discontinued |
| 0314 | | Support | - |
| 0315 | | Spacer | - |
| 0316 | | Insulating part | - |
| 0317 | | 00420194NLA Retaining washer | Discontinued |
| 0318 | | Nut | - |
| 0319 |  | Fan motor | - |
| 0320 | | Dividing wall | - |
| 0321 | | Fan | - |
| 0322 | | Connection piece | - |
| 0323 | | 00434075NLA Reflector | Discontinued |
| 0324 | | Cap | - |
| 0325 | | Resistor | - |
| 0326 | | Support | - |
| 0327 | | 00420223NLA Clip | Discontinued |
| 0328 | | Clip | - |
| 0329 | | 00239502NLA Case | Discontinued |
| 0330 | | 00420229NLA Bracket | Discontinued |
| 0331 | | 00239403NLA Heating element | Discontinued |
| 0332 | | 00239408NLA Cover | Discontinued |
| 0333 | | 00420230NLA Screw | Discontinued |
| 0334 | | Strip-decor | - |
| 0335 | | Tray | - |
| 0336 | | 00418410NLA Temperature sensor | Discontinued |
| 0337 | | 00239402NLA Heating element | Discontinued |
| 0338 | | Nut | - |
| 0339 | | Retaining washer | - |
| 0340 | | 00489259NLA Control unit | Discontinued |
| 0341 | | 00489267NLA Spacer | Discontinued |
| 0342 | | 00418417NLA Temperature sensor | Discontinued |
| 0343 | | 00420186NLA Screw | Discontinued |
| 0344 | | Screw | - |
| 0345 | | Support | - |
| 0346 | | Screw | - |
| 0347 | | Screw | - |
| 0348 | | Ventilation duct | - |
| 0349 | | 00420222NLA Seal | Discontinued |
| 0350 |  | Heating element | $104.26 Part Advantage |
| 0351 | | 00420225NLA Sealing | Discontinued |
| 0352 | | 00420226NLA Screw | Discontinued |
| 0353 | | Screw | - |
| 0354 | | 00418415NLA Cover | Discontinued |
| 0355 | | 00420227NLA Lamp housing | Discontinued |
| 0356 |  | Halogen Lamp | $12.21 Part Advantage |
| 0401 | | Motor | - |
| 0402 | | Screw | $2.06 RepairClinic |
| 0403 | | Screw | - |
| 0404 | | Housing | - |
| 0405 | | Retaining washer | - |
| 0406 | | Nut | - |
| 0407 | | 00420186NLA Screw | Discontinued |
| 0408 | | Retaining washer | - |
| 0409 | | Nut | - |
| 0410 | | 00420234NLA Spring | Discontinued |
| 0411 | | 00490368NLA Latch | Discontinued |
| 0412 | | Guide | - |
| 0413 | | 00420235NLA Temperature sensor | Discontinued |
| 0414 | | Screw | - |
| 0415 | | Temperature sensor | - |
| 0416 | | Support | - |
| 0417 | | Bracket | - |
| 0418 | | 00420238NLA Resistor | Discontinued |
| 0419 | | Support | - |
| 0420 | | Dividing wall | - |
| 0421 | | 00420233NLA Plate | Discontinued |
| 0422 | | Switch | - |
| 0501 | | Cover | - |
| 0502 | | 00239416NLA Glass panel | Discontinued |
| 0503 | | Panel side | - |
| 0504 | | 00490347NLA Insulating part | Discontinued |
| 0505 | | 00418428NLA Switch | Discontinued |
| 0506 | | Cover | - |
| 0507 | | Case-rear part | - |
| 0508 | | 00420192NLA Screw | Discontinued |
| 0509 | | Catalyzer | - |
| 0510 | | Support | - |
| 0511 | | Insulating part | - |
| 0512 | | Insulating part | - |
| 0513 | | 00493358NLA Door hinge | Discontinued |
| 0514 | | 00470692NLA Seal-door | Discontinued |
| 0515 | | Panel side | - |
| 0516 | | 00420194NLA Retaining washer | Discontinued |
| 0517 | | Strip-decor | - |
| 0518 | | 00420195NLA Nut | Discontinued |
| 0519 | | Frame | - |
| 0520 | | Case-bottom | - |
| 0521 | | 00493360NLA Door hinge | Discontinued |
| 0522 | | 00420186NLA Screw | Discontinued |
| 0523 | | 00493358NLA Door hinge | Discontinued |
| 0524 | | Screw | - |
| 0525 | | Insulating part | - |
| 0526 | | Insulating part | - |
| 0527 | | 00434051NLA Strip | Discontinued |
| 0528 | | Spacer | - |
| 0601 | | 00434064NLA Sheet | Discontinued |
| 0602 | | Fan | - |
| 0603 | | 00434068NLA Ventilation duct | Discontinued |
| 0604 | | Retaining washer | - |
| 0605 | | Screw | - |
| 0606 | | 00418431NLA Frequency filter | Discontinued |
| 0607 | | 00420186NLA Screw | Discontinued |
| 0608 | | 00418461NLA Transformer | Discontinued |
| 0609 | | Support | - |
| 0610 | | Terminal box | - |
| 0611 | | Screw | - |
| 0612 | | 00420194NLA Retaining washer | Discontinued |
| 0613 | | Fan motor | - |
| 0614 | | Nut | - |
| 0615 | | Fan | - |
| 0616 | | Screw | - |
| 0617 | | Dividing wall | - |
| 0618 | | 00434075NLA Reflector | Discontinued |
| 0619 | | Heating element | $104.26 Part Advantage |
| 0620 | | Spacer | - |
| 0621 | | 00420223NLA Clip | Discontinued |
| 0622 | | 00434052NLA Panel | Discontinued |
| 0623 | | Clip | - |
| 0624 | | 00418417NLA Temperature sensor | Discontinued |
| 0625 | | 00420194NLA Retaining washer | Discontinued |
| 0626 | | 00239408NLA Cover | Discontinued |
| 0627 | | 00420229NLA Bracket | Discontinued |
| 0628 | | 00239403NLA Heating element | Discontinued |
| 0629 | | 00420230NLA Screw | Discontinued |
| 0630 | | Tray | - |
| 0631 | | Strip-decor | - |
| 0632 | | 00239402NLA Heating element | Discontinued |
| 0633 | | 00239471NLA Spare part | Discontinued |
| 0634 | | Nut | - |
| 0635 | | Spacer | - |
| 0636 | | Insulating part | - |
| 0637 | | Support | - |
| 0638 | | Screw | - |
| 0639 | | Ventilation duct | - |
| 0640 | | 00420222NLA Seal | Discontinued |
| 0641 | | 00420225NLA Sealing | Discontinued |
| 0642 | | 00420226NLA Screw | Discontinued |
| 0643 | | Screw | - |
| 0644 | | 00418415NLA Cover | Discontinued |
| 0645 | | 00420227NLA Lamp housing | Discontinued |
| 0646 | | Halogen Lamp | $12.21 Part Advantage |
| 0701 | | Motor | - |
| 0702 | | Screw | $2.06 RepairClinic |
| 0703 | | Screw | - |
| 0704 | | Housing | - |
| 0705 | | Retaining washer | - |
| 0706 | | Nut | - |
| 0707 | | 00420186NLA Screw | Discontinued |
| 0708 | | Retaining washer | - |
| 0709 | | Nut | - |
| 0710 | | 00420234NLA Spring | Discontinued |
| 0711 | | Guide | - |
| 0712 | | 00490368NLA Latch | Discontinued |
| 0713 | | Temperature sensor | - |
| 0714 | | Screw | - |
| 0715 | | Bracket | - |
| 0716 | | Support | - |
| 0717 | | 00420238NLA Resistor | Discontinued |
| 0718 | | Support | - |
| 0719 | | Dividing wall | - |
| 0720 | | 00420233NLA Plate | Discontinued |
| 0721 | | Switch | - |
| 0722 | | 00420186NLA Screw | Discontinued |
| 0801 | | Screw | $2.06 RepairClinic |
| 0802 | | 00238954NLA Door-inner | Discontinued |
| 0803 | | Pin | - |
| 0804 | | Screw | - |
| 0805 | | Screw | - |
| 0806 | | Washer | - |
| 0807 | | Nut | - |
| 0808 | | Screw | - |
| 0809 | | Seal | - |
| 0810 | | 00240458NLA Glass panel | Discontinued |
| 0811 | | 00470712NLA Spacer | Discontinued |
| 0812 | | Reflector | - |
| 0813 | | 00420194NLA Retaining washer | Discontinued |
| 0814 | | 00420186NLA Screw | Discontinued |
| 0815 | | Retaining plate | - |
| 0816 | | 00420255NLA Clip | Discontinued |
| 0817 | | 00489270NLA Hinge | Discontinued |
| 0818 | | Handle-door | - |
| 0819 | | 00239421NLA Door | Discontinued |
| 0820 | | 00434078NLA Insulating part | Discontinued |
| 0821 | | 00418424NLA Spacer | Discontinued |
| 0901 | | Frying pan | - |
| 0902 | | Drip pan | - |
| 0903 | | 00470697NLA Grill grid | Discontinued |
| 0904 | | Grid | - |
