Model
Bosch HBL8743UC/05
Wall Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBL8743UC/05Wall Oven
6 diagrams89 parts

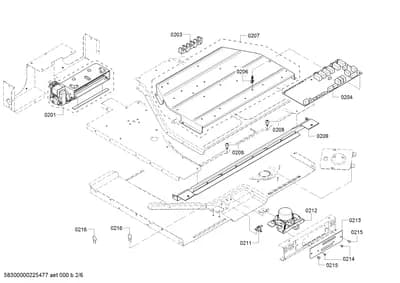

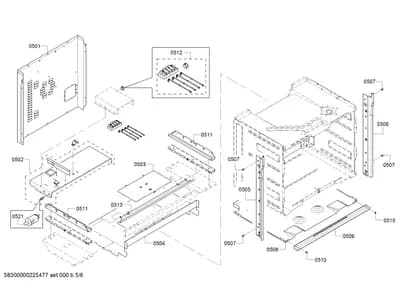

Parts Sections (6)
Diagram

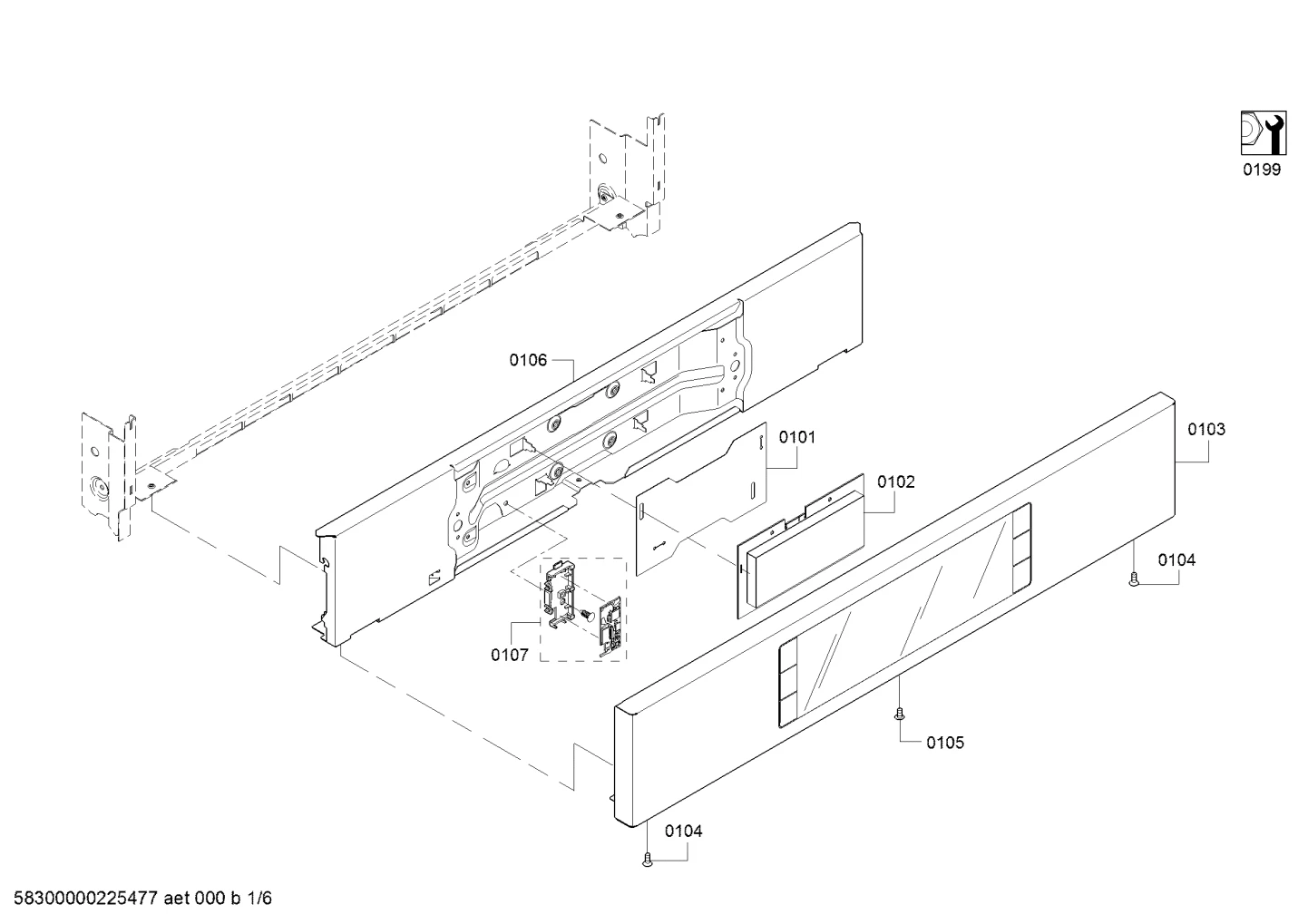

Screws, Door & Housing (0101-0199)
Parts in Screws, Door & Housing (0101-0199)
10 parts

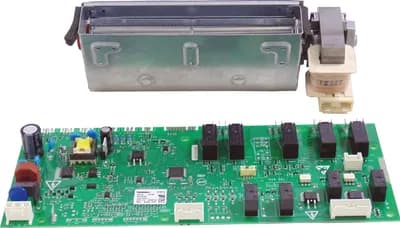

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Sheet | - |
| 0102 |  | Display module | $173.19 Part Advantage |
| 0103 |  | Panel-facia | - |
| 0104 |  | Screw | $18.43 ApplianceParts Pro |
| 0105 |  | Screw | $23.02 Part Advantage |
| 0106 |  | Mounting bracket | $27.56 ApplianceParts Pro |
| 0107 |  | Connectivity module | $105.50 Parts Dr |
| 0150 | | Mounting bracket | $27.56 ApplianceParts Pro |
| 0199 |  | 11003182NLA Repair-set | Discontinued |
| 0199 |  | Control module programmed | $723.49 ApplianceParts Pro |
