Model
Bosch HBLP451LUC/02
Wall Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HBLP451LUC/02Wall Oven
6 diagrams83 parts
Parts Sections (6)
Diagram

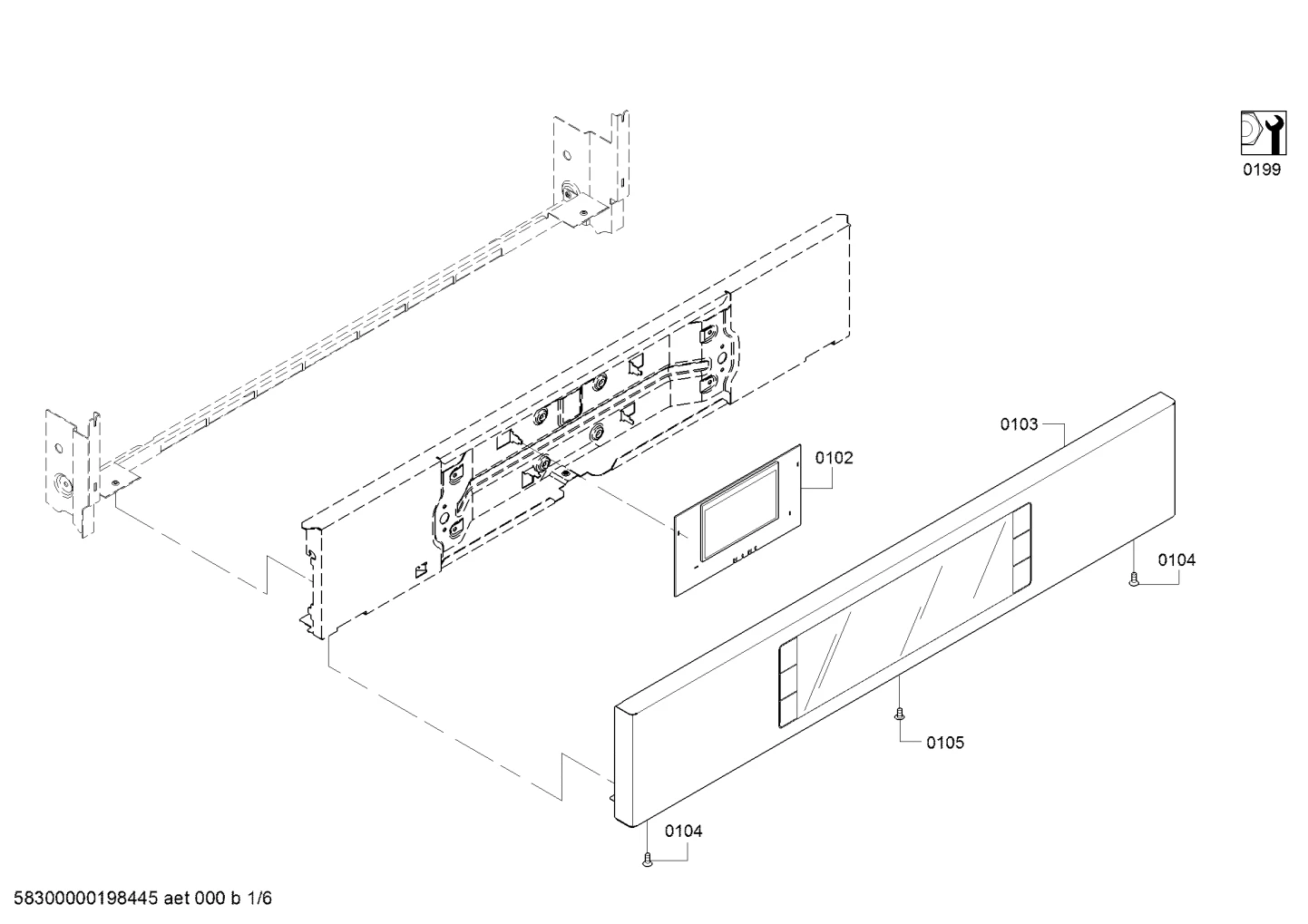

Screws, Door & Housing (0102-0199)
Parts in Screws, Door & Housing (0102-0199)
6 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | Display module | $363.50 Parts Dr |
| 0103 |  | Panel-facia | $297.30 ApplianceParts Pro |
| 0104 |  | Screw | $18.43 ApplianceParts Pro |
| 0105 |  | Screw | $23.02 Part Advantage |
| 0150 |  | Mounting bracket | $27.56 ApplianceParts Pro |
| 0199 |  | Repair-set | - |
