Model
Bosch HCP30651UC/01
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HCP30651UC/01Wall Oven
1 diagram15 parts
Parts Sections (1)
Diagram
Door & Housing, chimneysets (0101-0197)
Parts in Door & Housing, chimneysets (0101-0197)
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

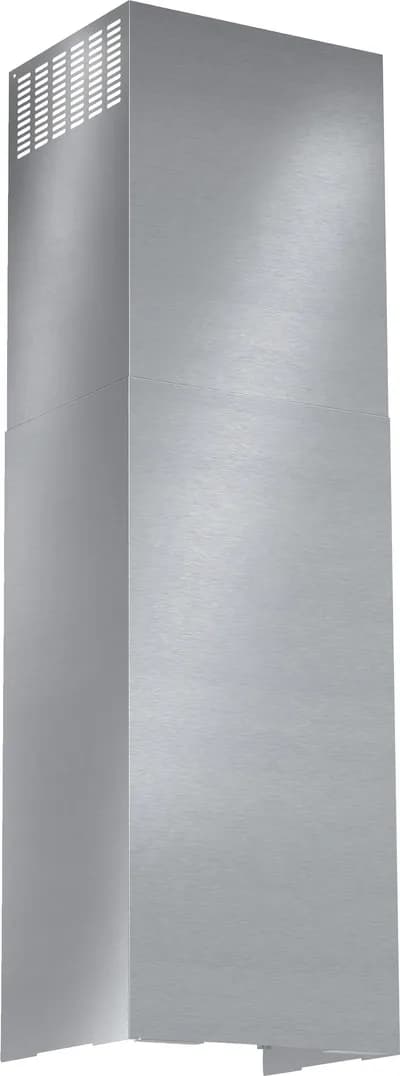

| 0101 |  | Chimney extension | - |
| 0103 |  | Connection piece | $91.81 ApplianceParts Pro |

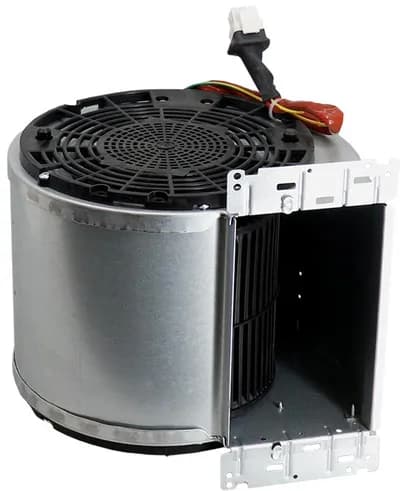

| 0104 |  | Blower motor | $330.63 RepairClinic |
| 0105 |  | Capacitor | - |
| 0108 |  | Panel | $65.73 PartSelect |
| 0109 |  | Panel | $86.96 PartSelect |
| 0110 | | Panel | - |
| 0112 |  | Filter-grease | $87.77 Part Advantage |
| 0113 |  | Lamp complete | $69.77 Parts Dr |
| 0114 | | 00757671NLA Display module | Discontinued |

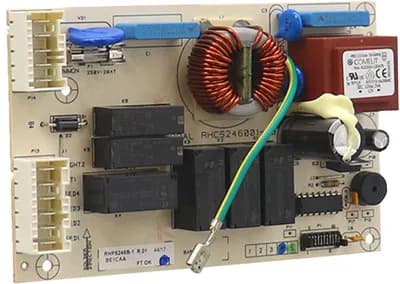

| 0115 |  | Power module | $297.95 PartSelect |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0197 |  | Installation set | $34.95 ApplianceParts Pro |
