Model
Bosch HDI7032U/04
Dual-Fuel Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDI7032U/04Dual-Fuel Range
6 diagrams112 parts
Parts Sections (6)
Diagram

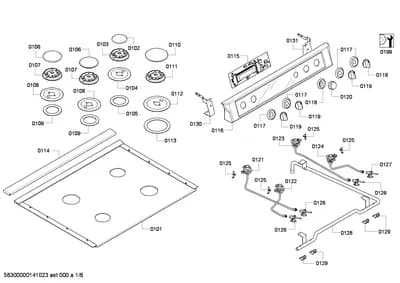

othergasparts, Seals & Gaskets (0101-0199)
Parts in othergasparts, Seals & Gaskets (0101-0199)
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hob top | - |
| 0102 | | Cap | $62.23 ApplianceParts Pro |
| 0103 |  | Burner housing | $25.30 RepairClinic |
| 0104 | | Support | - |
| 0105 | | Seal | - |
| 0106 |  | Burner cap | - |
| 0107 |  | Burner housing | $49.59 Parts Dr |
| 0108 | | Support | - |
| 0109 | | Seal | - |
| 0110 |  | Burner cap | $85.28 Parts Dr |
| 0111 | | 00423449NLA Burner housing | Discontinued |
| 0112 | | Support | - |
| 0113 | | Seal | - |
| 0114 |  | Trimplate | - |
| 0115 |  | 00653424NLA Display module | Discontinued |
| 0116 | | Glass panel | - |
| 0117 |  | Grommet | $7.53 Part Advantage |
| 0118 |  | Ring | $42.59 ApplianceParts Pro |
| 0119 | | Knob | - |
| 0120 |  | Knob-programme | - |
| 0121 | | Jet | - |
| 0122 | | Jet | - |
| 0123 |  | Jet | - |
| 0124 |  | Jet | $71.53 RepairClinic |
| 0125 |  | Electrode | $18.00 Part Advantage |
| 0126 |  | Valve | $116.55 Parts Dr |
| 0127 |  | Valve | - |
| 0128 | | Manifold | $127.70 Parts Dr |
| 0129 |  | Clamp | $29.26 Parts Dr |
| 0130 | | Bracket | - |
| 0131 | | Bracket | - |
| 0150 |  | Cable harness set | $122.69 Parts Dr |
| 0151 |  | 00641106NLA Cable harness | Discontinued |
| 0152 | | Deflection unit | - |
| 0153 |  | Screw | $23.02 Part Advantage |
| 0199 | | Part not included in this appliance | - |
