Model
Bosch HDI7052U/09
Dual-Fuel Range
Parts Sections (7)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDI7052U/09Dual-Fuel Range
7 diagrams117 parts

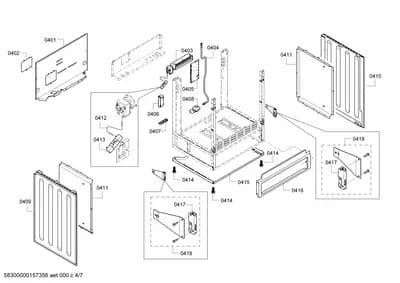

Parts Sections (7)
Diagram

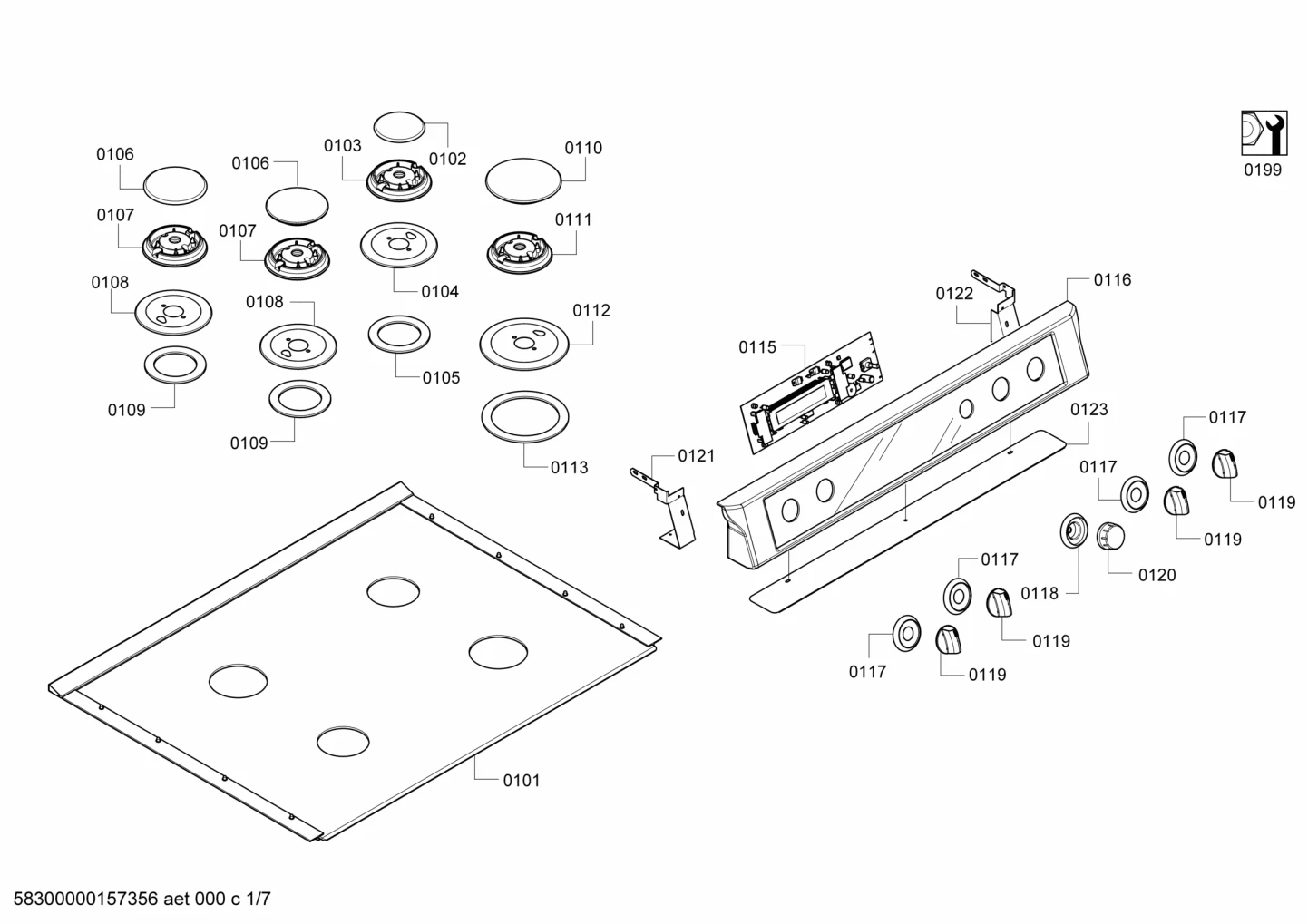

Seals & Gaskets, othergasparts (0101-0199)

Parts in Seals & Gaskets, othergasparts (0101-0199)
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 | 00243959NLA Hob top | Discontinued | |
| 0102 | Cap | $62.23 ApplianceParts Pro | |
| 0103 | Burner housing | $25.30 RepairClinic | |
| 0104 | Support | - | |
| 0105 | Seal | - | |
| 0106 | Burner cap | - | |
| 0107 | Burner housing | $49.59 Parts Dr | |
| 0108 | Support | - | |
| 0109 | Seal | - | |
| 0110 | Burner cap | $85.28 Parts Dr | |
| 0111 | 00423449NLA Burner housing | Discontinued | |
| 0112 | Support | - | |
| 0113 | Seal | - | |
| 0115 | 00653424NLA Display module | Discontinued | |
| 0116 | Glass panel | $334.65 RepairClinic | |
| 0117 | Grommet | $7.53 Part Advantage | |
| 0118 | ![]() | Ring | $42.59 ApplianceParts Pro |
| 0118 | ![]() | Ring | $42.59 ApplianceParts Pro |
| 0119 | Knob | - | |
| 0120 | Knob-programme | $7.54 ApplianceParts Pro | |
| 0121 | Bracket | - | |
| 0122 | Bracket | - | |
| 0123 | Deflection unit | - | |
| 0150 | ![]() | Cable harness set | $122.69 Parts Dr |
| 0151 | 00641106NLA Cable harness | Discontinued | |
| 0153 | Sealing strip | $58.42 PartSelect | |
| 0154 | Filter | $50.72 ApplianceParts Pro | |
| 0199 | Part not included in this appliance | - |
