Model
Bosch HDI7152U/03
Dual-Fuel Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDI7152U/03Dual-Fuel Range
4 diagrams100 parts
Parts Sections (4)

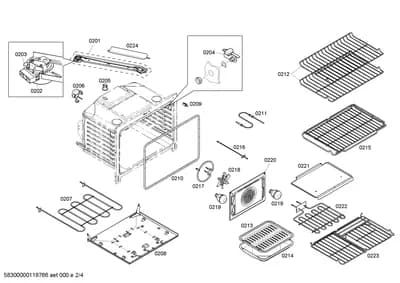

Diagram

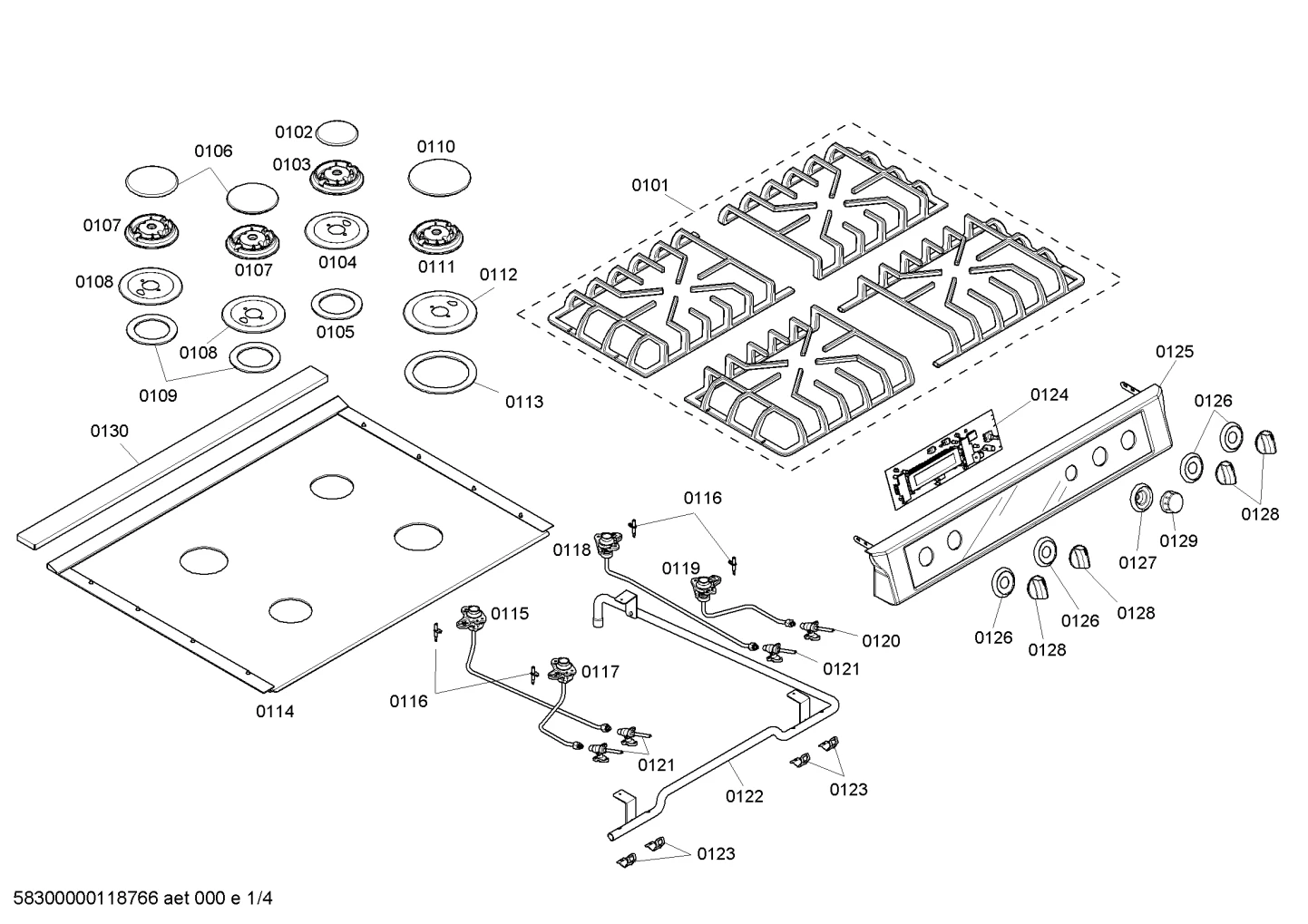

othergasparts, Seals & Gaskets (0101-0160)
Parts in othergasparts, Seals & Gaskets (0101-0160)
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Grid | - |
| 0102 |  | Cap | $62.23 ApplianceParts Pro |
| 0103 |  | Burner housing | $25.30 RepairClinic |
| 0104 | | Support | - |
| 0105 | | Seal | - |
| 0106 |  | Burner cap | $76.59 Part Advantage |
| 0107 |  | Burner housing | $49.59 Parts Dr |
| 0108 | | Support | - |
| 0109 | | Seal | - |
| 0110 |  | Burner cap | $85.28 Parts Dr |
| 0111 | | 00423449NLA Burner housing | Discontinued |
| 0112 | | Support | - |
| 0113 | | Seal | - |
| 0114 |  | 00243959NLA Hob top | Discontinued |
| 0115 | | Jet | - |
| 0116 |  | Electrode | $18.00 Part Advantage |
| 0117 | | Jet | - |
| 0118 |  | Jet | - |
| 0119 |  | Jet | $71.53 RepairClinic |
| 0120 |  | Valve | - |
| 0121 |  | Valve | $116.55 Parts Dr |
| 0122 | | Manifold | $127.70 Parts Dr |
| 0123 |  | Clamp | $29.26 Parts Dr |
| 0124 |  | 00653424NLA Display module | Discontinued |
| 0125 | | Glass panel | $574.41 PartSelect |
| 0126 |  | Grommet | $7.53 Part Advantage |
| 0127 |  | Ring | $42.59 ApplianceParts Pro |
| 0128 | | Knob | - |
| 0129 |  | Knob-oven | $56.31 Parts Dr |
| 0130 |  | Trimplate | - |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0153 | | Cable harness | $90.95 ApplianceParts Pro |
| 0154 | | Cable harness | - |
| 0155 |  | Cable harness set | $122.69 Parts Dr |
| 0156 |  | 00641106NLA Cable harness | Discontinued |
| 0157 |  | Cable harness | - |
| 0159 |  | Filter | $50.72 ApplianceParts Pro |
| 0160 |  | Screw | $2.51 Part Advantage |
