Model
Bosch HDI8054U/04
Dual-Fuel Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDI8054U/04Dual-Fuel Range
7 diagrams106 parts
Parts Sections (7)
Diagram

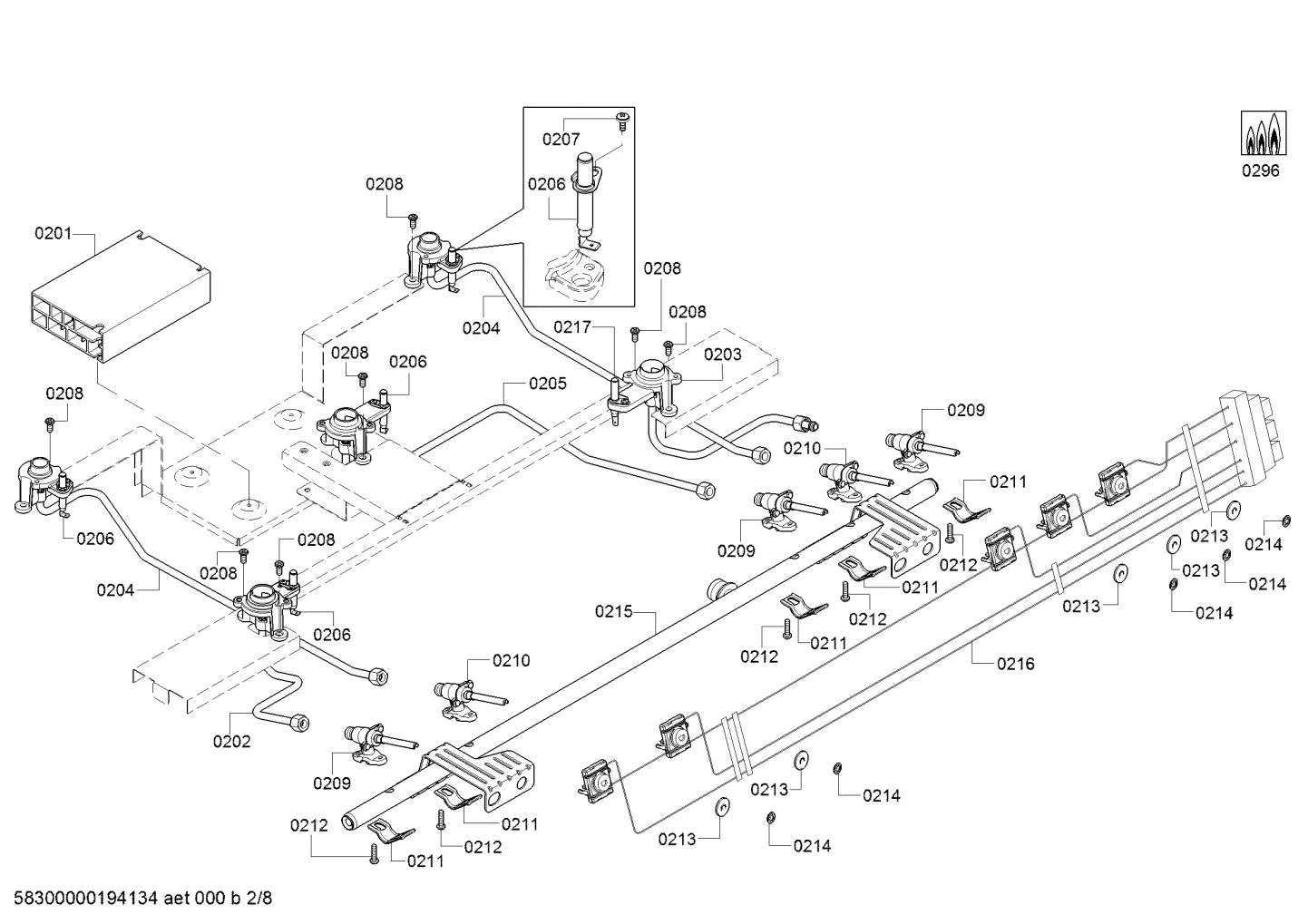

Screws, ignitionparts (0201-0296)
Parts in Screws, ignitionparts (0201-0296)
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0201 |  | Ignition device | $88.52 Part Advantage |
| 0202 |  | Tube | $48.26 Parts Dr |
| 0203 |  | Tube | $54.97 Parts Dr |
| 0204 |  | Tube | $39.83 ApplianceParts Pro |
| 0205 |  | Tube | $48.68 Parts Dr |
| 0206 |  | Electrode | $15.90 Part Advantage |
| 0207 |  | Screw | $8.66 Parts Dr |
| 0208 |  | Screw | $24.27 Part Advantage |
| 0209 |  | Valve | $44.84 Parts Dr |
| 0210 |  | Valve | $27.94 Parts Dr |
| 0211 |  | Clamp | $29.26 Parts Dr |
| 0212 |  | Screw | $9.63 Part Advantage |
| 0213 |  | Seal | $16.68 ApplianceParts Pro |
| 0214 |  | Retaining washer | $10.88 Part Advantage |
| 0215 |  | Installation accessory | - |
| 0216 |  | Cable harness | $99.77 Part Advantage |
| 0217 |  | Electrode | $10.47 Part Advantage |
| 0250 |  | Wire | - |
| 0251 |  | Wire | - |
| 0252 |  | Wire | - |
| 0253 |  | Wire | - |
| 0254 |  | Wire | - |
| 0255 |  | Cable harness | $89.01 PartSelect |

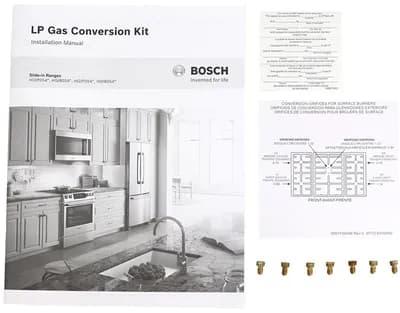

| 0296 |  | Set of jets | $47.29 Parts Dr |
