Model
Bosch HDI8056U/01
Dual-Fuel Range
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDI8056U/01Dual-Fuel Range
8 diagrams122 parts
Parts Sections (8)
Diagram

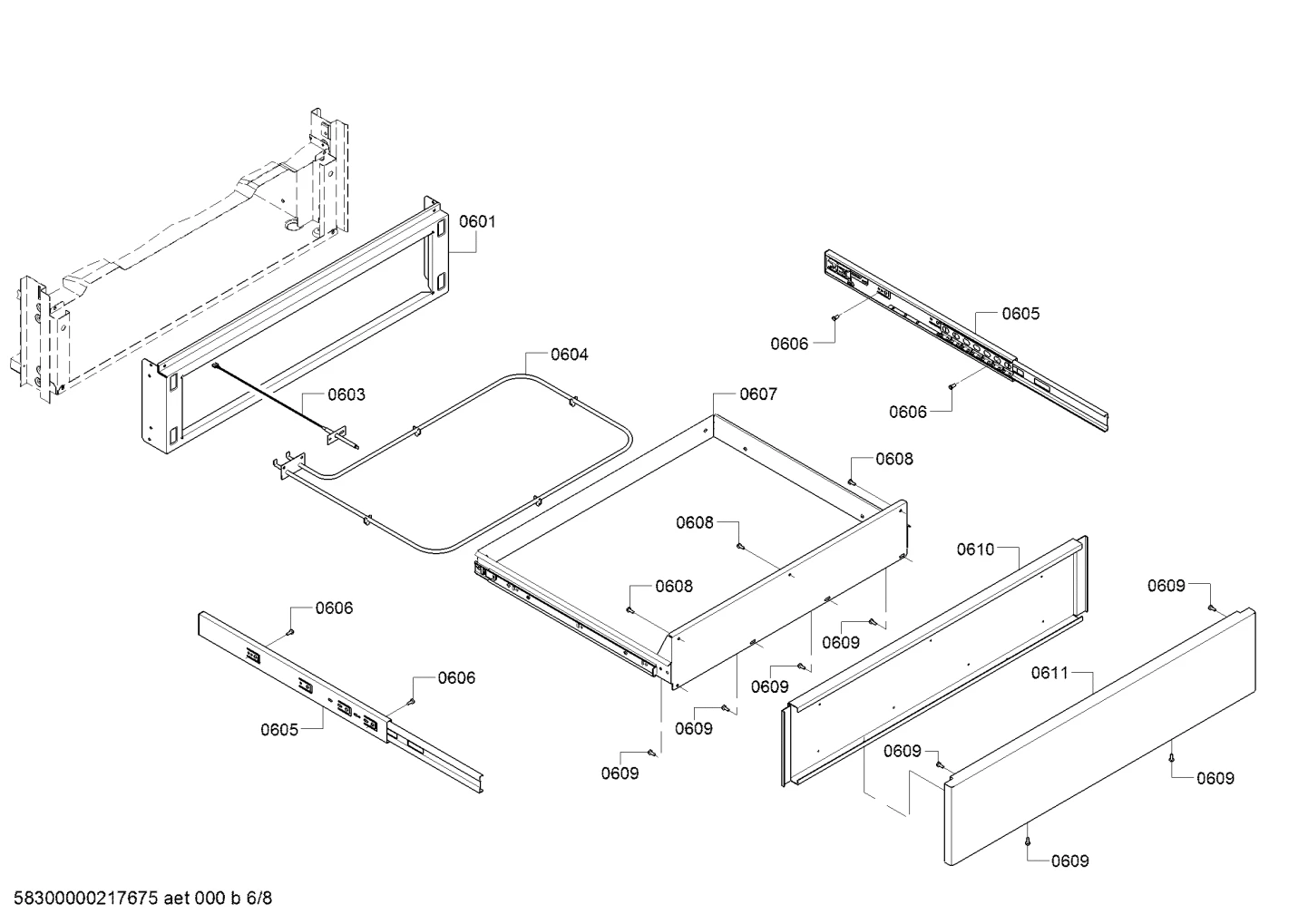

Screws, heatingparts (0601-0650)
Parts in Screws, heatingparts (0601-0650)
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0601 |  | Trimplate | - |
| 0603 |  | Sensor | $36.41 Part Advantage |
| 0604 |  | Heating element | $44.36 Part Advantage |
| 0605 |  | Slide | $82.53 Part Advantage |
| 0606 |  | Screw | $23.02 Part Advantage |
| 0607 |  | Drawer | $196.61 ApplianceParts Pro |
| 0608 |  | Screw | $25.62 ApplianceParts Pro |
| 0609 |  | Screw | $18.41 Part Advantage |
| 0610 |  | Panel | $84.04 Part Advantage |
| 0611 |  | Drawer front | $132.48 Parts Dr |
| 0650 |  | Screw | $17.54 ApplianceParts Pro |
