Model
Bosch HDI8056U/02
Dual-Fuel Range
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDI8056U/02Dual-Fuel Range
8 diagrams123 parts
Parts Sections (8)
Diagram
heatingparts, Lighting (0401-0452)

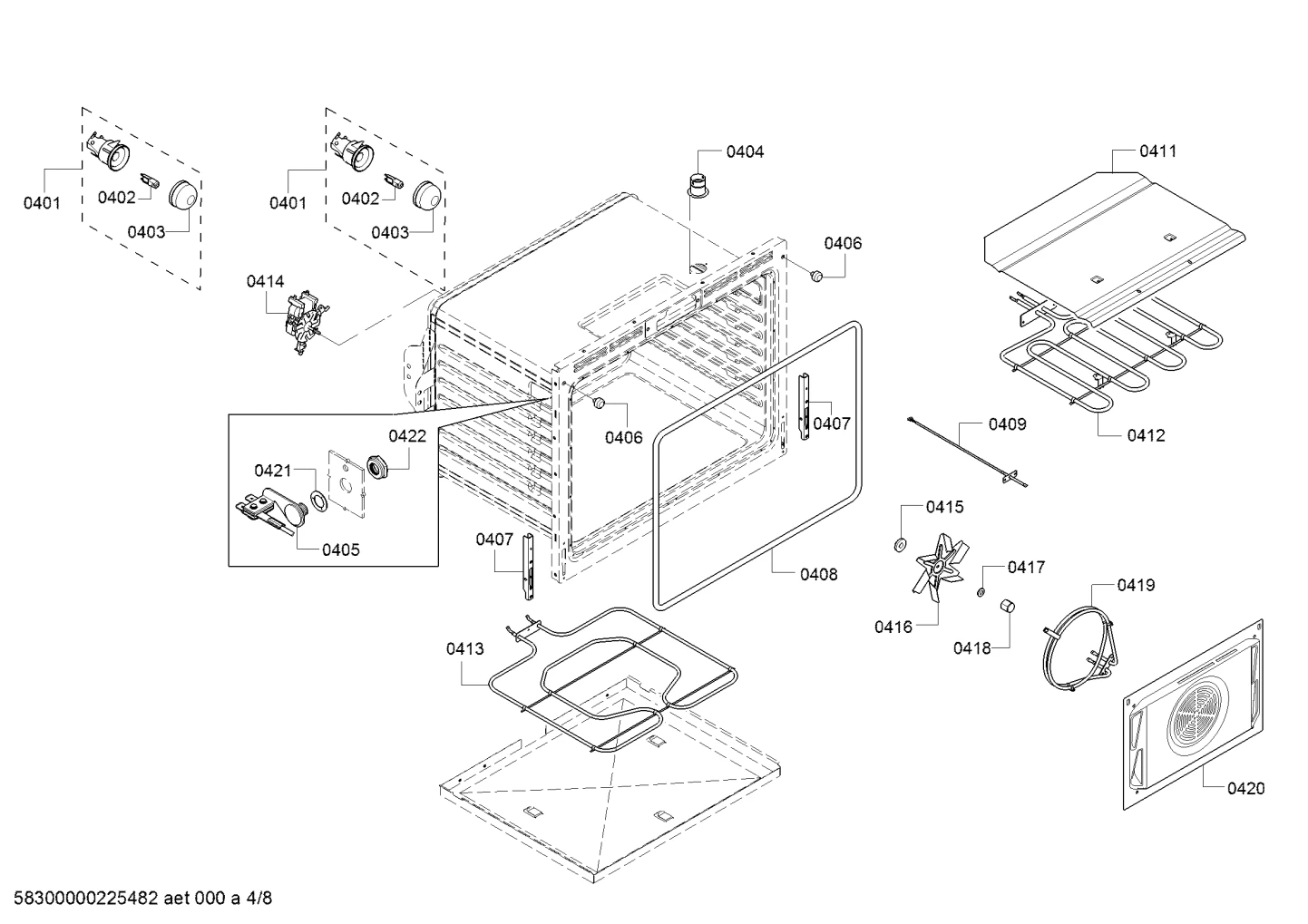

Parts in heatingparts, Lighting (0401-0452)
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0401 |  | Halogen lamp | $15.34 ApplianceParts Pro |
| 0402 |  | Halogen lamp | $33.48 Part Advantage |
| 0403 |  | Lens | $17.58 Part Advantage |
| 0404 |  | Catalyzer | $45.62 Part Advantage |
| 0405 |  | Socket | $304.43 Parts Dr |
| 0406 |  | Spacer | $27.41 Parts Dr |
| 0407 |  | Hinge holder | - |
| 0408 |  | Seal-door | $30.48 RepairClinic |
| 0409 |  | Sensor | $36.41 Part Advantage |
| 0411 | | Reflector | - |
| 0412 | | Heating element | $87.77 Part Advantage |
| 0413 |  | Heating element | $76.18 Part Advantage |
| 0414 |  | Motor | $109.11 Part Advantage |
| 0415 | | Spacer | $28.81 ApplianceParts Pro |
| 0416 |  | Fan blade | $33.06 Parts Dr |
| 0417 |  | Washer | - |
| 0418 |  | Nut | $8.35 ApplianceParts Pro |
| 0419 |  | Heating element | $68.05 Parts Dr |
| 0420 |  | Air duct | $67.91 ApplianceParts Pro |
| 0421 |  | Washer | - |
| 0422 |  | Nut | $11.95 ApplianceParts Pro |
| 0450 | | Cable harness | $18.37 ApplianceParts Pro |
| 0451 |  | Screw | - |
| 0452 |  | Screw | - |
